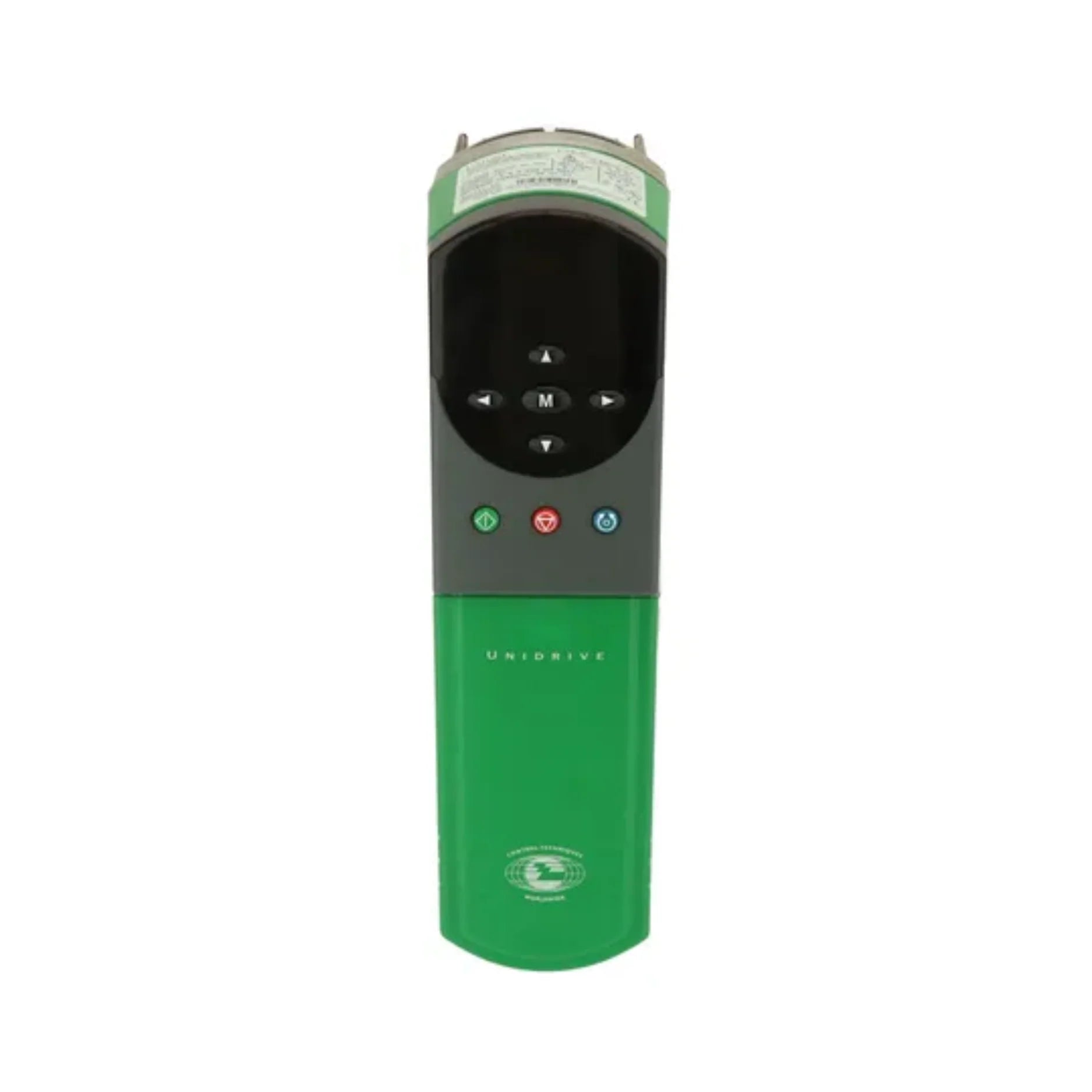

Control Techniques UNI1403

Overview

The Control Techniques UNI1403 is a high-performance, compact AC drive meticulously engineered for precise motor control in a wide array of industrial and OEM applications. As part of the renowned Nidec (Control Techniques) Unidrive Classic series, this drive redefines efficiency and reliability for systems requiring accurate speed and torque management. With a robust power rating of 1.5 kW (2 HP) and a 3.8 A output current, the UNI1403 is perfectly suited for 3-phase 380–480 V input power sources. Its dual-mode control capabilities, encompassing both V/f (Volts per Hertz) and open-loop vector control, provide exceptional flexibility, ensuring consistent and optimal performance across various motor types and operational demands. The UNI1403’s thoughtful design prioritizes integration and durability, housed within an IP20 panel-mount enclosure, making it an ideal solution for environments where space and protection are critical.

Key Features

• Power Rating: 1.5 kW (2 HP) – Delivers ample power for a range of demanding applications.
• Input Voltage: 3-phase 380–480 V AC ±10% – Ensures compatibility with standard industrial power supplies.
• Output Current: 3.8 A – Provides reliable current delivery for consistent motor operation.
• Control Modes:
  • V/f (Volts per Hertz) Control – Ideal for general-purpose motor speed regulation.
  • Open-loop Vector Control – Offers enhanced torque control and speed accuracy without encoder feedback.
  • Optional Servo and Regen Capability – Provides advanced control options for specialized applications.
• Series: Unidrive Classic – A trusted and proven series for robust industrial control.
• Enclosure: IP20, Panel Mount – Offers protection against solid objects and facilitates easy installation within control panels.
• Diagnostics: Equipped with LED indicators and comprehensive trip code logging for quick troubleshooting and minimized downtime.
• Modularity: Supports optional expansion modules for enhanced I/O connectivity and various communication protocols, ensuring adaptability to evolving system requirements.

Technical Specifications

• Model: UNI1403
• Brand: Nidec (Control Techniques)
• Product Type: AC Drive
• Power (kW): 1.5 kW
• Power (HP): 2 HP
• Input Phases: 3-phase
• Input Voltage Range: 380–480 V AC
• Current Output: 3.8 A
• Frequency: 50/60 Hz
• Control Principle: V/f, Sensorless Vector
• Enclosure Rating: IP20
• Mounting: Panel Mount
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Compliance: CE, UL, cUL
• Dimensions (H x W x D): Specific dimensions vary; refer to manufacturer's datasheet for precise measurements.

Applications

The versatility and compact design of the Control Techniques UNI1403 make it an excellent choice for a diverse range of industrial and commercial applications, including:

• Small Conveyor Systems: Provides smooth and precise speed control for efficient material handling.
• Fans and Blowers: Optimizes energy consumption and airflow, enhancing system efficiency.
• Compact Machinery and OEM Systems: Its small footprint and robust performance are ideal for integration into space-constrained equipment.
• General-Purpose Motor Control: Reliable operation for a multitude of standard motor control tasks.
• Light-Duty Pumps and Compressors: Ensures steady and controlled fluid management, reducing wear and tear.
• Packaging Machinery: Offers the precision needed for automated packaging processes.
• Textile Machines: Provides accurate speed and torque for various textile manufacturing stages.

Why Choose This Model?

Opting for the Control Techniques UNI1403 means investing in a solution that delivers exceptional value and performance:

• Compact and Efficient: Specifically designed to fit into limited panel space without compromising on power or functionality, leading to more flexible system designs.
• Proven Reliability: Built with Control Techniques' renowned engineering, ensuring consistent and dependable operation even in demanding industrial environments, extending equipment lifespan.
• Flexible Control: Supports multiple control modes (V/f and vector), allowing for optimal performance with different motor types and application requirements, maximizing versatility.
• Seamless Integration: As part of the Unidrive Classic series, it offers easy compatibility with existing systems and straightforward setup procedures, significantly reducing installation time and complexity.
• Enhanced Diagnostics: Integrated LED indicators and detailed trip code logging empower users with immediate feedback and efficient troubleshooting, minimizing downtime and maintenance effort.
• Global Availability: Ready for worldwide shipping, ensuring accessibility no matter your location.

Order Now

Elevate your motor control capabilities with the Control Techniques UNI1403 AC Drive. This industry-leading solution is readily available and poised for global distribution, ensuring you receive a high-quality product without delay. For a broader selection of drives within this series, we invite you to explore our comprehensive range of Control Techniques Unidrive SP Series AC Drives. Additionally, discover the full spectrum of innovative solutions offered within the Nidec (Control Techniques) category to meet all your industrial automation needs. Take control of your operations with precision and reliability today!
