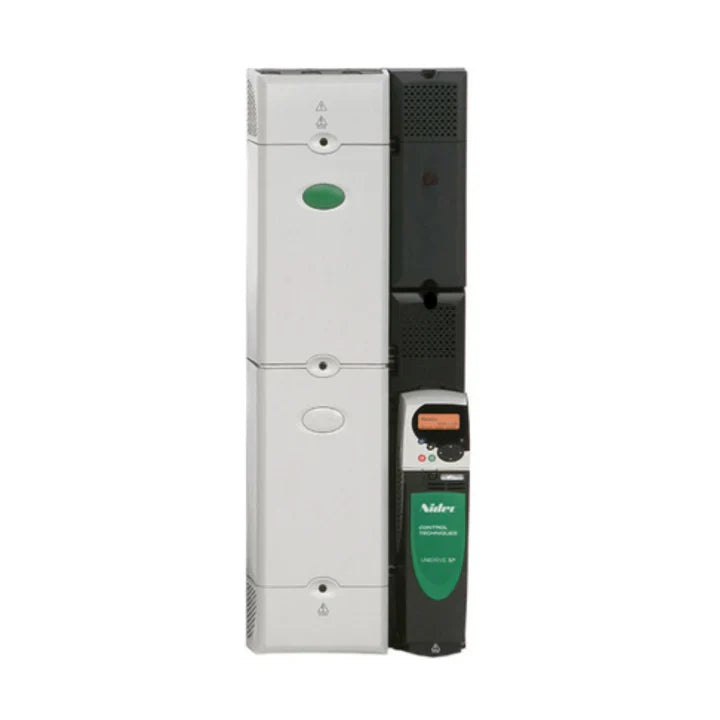

Control Techniques SP5403

Overview

The Control Techniques SP5403 Unidrive SP AC drive is meticulously engineered for unparalleled precision and robust performance in the most demanding industrial environments. As a flagship product from Nidec (Control Techniques), the SP5403 is designed to optimize motor control for both heavy-duty and normal-duty operations, providing a substantial 150 HP of power with a 168 A output current. Operating efficiently on a 3-phase 380–480 V supply, this AC drive facilitates dynamic and flexible motor control, making it an indispensable component for systems requiring high torque, exceptional energy efficiency, and reliable operation. Its advanced capabilities ensure seamless integration and superior performance across a wide spectrum of industrial applications.

Key Features

• Power Rating: 150 HP (Normal Duty) / 125 HP (Heavy Duty)
• Output Current: 168 A (Normal Duty) / 156 A (Heavy Duty)
• Input Voltage: 3-phase 380–480 VAC
• Frequency: 50/60 Hz compatibility
• Enclosure: IP20 (Open Type) for adaptable installation
• Control Modes: Versatile V/Hz, Open Loop Vector, and Closed Loop Vector control
• Connectivity: Integrated RS485 Modbus RTU for enhanced communication
• Interface: Advanced diagnostics and programming capabilities for effortless configuration and monitoring

Technical Specifications

• Model: SP5403
• Input: 3-phase, 380–480 V, 50/60 Hz
• Output Current: 168 A (Normal Duty), 156 A (Heavy Duty)
• Motor Power: 150 HP (Normal Duty), 125 HP (Heavy Duty)
• Enclosure: IP20 (without keypad)
• Overload Capacity: 110% for 60 seconds (Normal Duty), 150% for 60 seconds (Heavy Duty)
• Operating Temperature: 0 °C to +40 °C (standard)
• Altitude: Up to 1000 m without derating
• Dimensions: Approximately 350 × 800 × 300 mm (W × H × D)
• Mounting: Designed for versatile wall or cabinet panel mounting
• Weight: Approximately 40 kg
• Certifications: UL, CE, RoHS compliant for global standards adherence

Applications

The Nidec (Control Techniques) SP5403 AC drive is engineered to thrive in a diverse range of demanding industrial applications, offering robust and precise motor control.

• Industrial Conveyors and Mixers: Ensures smooth and efficient material handling.
• High-Inertia Machinery: Provides stable and controlled performance for equipment with significant rotational mass.
• Pump and Fan Control Systems: Optimizes energy consumption and operational efficiency.
• Manufacturing Automation: Integrates seamlessly into automated production lines for enhanced productivity.
• Heavy-Duty Processing Equipment: Delivers reliable power and control for critical industrial processes.

Why Choose This Model?

The Control Techniques SP5403 stands out as a leading choice for industrial motor control due to its superior engineering and comprehensive feature set:

• High Horsepower in a Compact Design: Delivers significant power without compromising on valuable space.
• Reliable Control: Ensures consistent and precise control for both standard and demanding heavy-duty loads.
• Broad Compatibility: Seamlessly integrates with a wide array of industrial automation networks, enhancing flexibility.
• Configurable Versatility: Easily adaptable for a diverse range of vector and V/Hz applications, meeting specific operational needs.
• Built for Durability: Constructed to withstand continuous operation in harsh and challenging industrial environments.

Order Now

The Control Techniques SP5403 Unidrive SP AC drive is currently in stock and readily available for worldwide shipping. Elevate your industrial operations with this high-performance solution. For additional drive options and to explore the full breadth of advanced motion control technologies, we invite you to browse the Control Techniques Unidrive SP Modular category or the complete Nidec (Control Techniques) main category.
