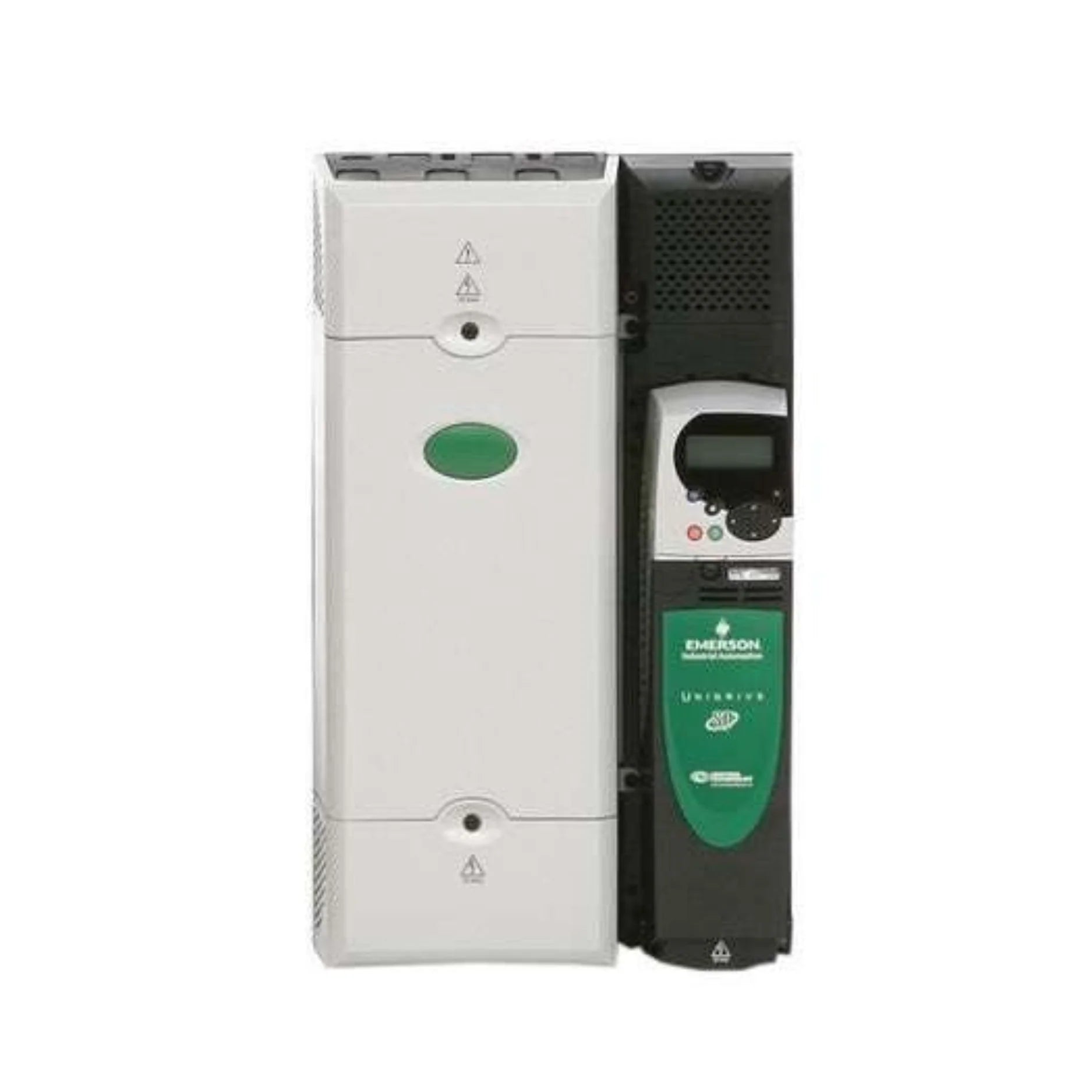

Control Techniques SP4403

Overview

The Control Techniques SP4403 is a high-performance 75 HP variable frequency AC drive, proudly part of the renowned Nidec (Control Techniques) Unidrive SP series. Engineered for the most demanding industrial environments, this robust drive delivers exceptional motor control and energy efficiency. With a continuous output current of 103 A and compatibility with 3-phase 380–480 V AC input, the SP4403 is versatile enough to excel in both standard AC induction motor applications and sophisticated servo control systems. Its advanced capabilities ensure precise regulation of speed and torque, leading to optimized process control, reduced energy consumption, and enhanced operational reliability. The compact IP20 chassis design facilitates easy integration into existing control panels, making it an ideal choice for upgrades and new installations across various industries.

Key Features

• Power Rating: 75 HP (55 kW) ensures robust performance for heavy-duty machinery.
• Output Current: 103 A continuous output current provides ample power for demanding applications.
• Input Voltage: Operates efficiently on 3-phase, 380–480 V AC, 50/60 Hz power supplies.
• Enclosure & Frame: IP20 chassis mount design (Frame Size 4) for straightforward panel integration.
• Versatile Operating Modes: Supports Open-loop vector, Closed-loop vector, and Servo control for diverse motor control strategies.
• Regenerative Capability: Compatible with regenerative modules for efficient energy recovery.
• Ambient Temperature Range: Designed for reliable operation within a 0 °C to +40 °C environment.
• User Interface: Keypad not included, but supports SM‑Keypad and various remote HMIs for flexible control.

Technical Specifications

The Control Techniques SP4403 stands out with its industry-leading technical specifications, cementing its position as a top-tier variable frequency drive. It delivers a substantial 75 HP (55 kW) of power, capable of driving large and complex machinery with ease. The drive maintains a continuous output current of 103 A, ensuring stable and consistent performance even under fluctuating loads. Its electrical input requirements are a standard 3-phase, 380–480 V AC at 50/60 Hz, making it compatible with common industrial power grids. The IP20 chassis is designed for indoor panel mounting, offering protection against solid foreign objects. Its Frame Size 4 engineering allows for a compact footprint relative to its power output. The SP4403 boasts comprehensive control options, including advanced vector control algorithms for both open-loop and closed-loop systems, alongside dedicated servo control capabilities for high-precision motion. Furthermore, the drive supports regenerative functionality with an external module, allowing energy generated during deceleration to be fed back into the grid, significantly improving overall system efficiency. This drive is engineered to operate reliably in ambient temperatures ranging from 0 °C to +40 °C, ensuring consistent performance in typical industrial settings. While a keypad is not supplied as standard, the unit is fully compatible with Control Techniques' SM-Keypad and a range of remote Human Machine Interfaces (HMIs), providing flexible configuration and monitoring options.

Applications

The robustness and advanced control features of the Control Techniques SP4403 make it an invaluable asset across a wide spectrum of industrial applications, particularly those requiring precise motor control and high power output:

• High-horsepower Conveyor Systems: Provides smooth acceleration/deceleration and precise speed control for heavy-duty material handling.
• Extruders, Crushers, and Mixers: Offers consistent torque delivery and control, crucial for process stability in material processing.
• Pumping Systems with Torque Control: Enables optimized flow rates and pressure regulation, leading to energy savings and reduced wear.
• Industrial Machinery with Dynamic Motor Loads: Handles rapidly changing load conditions with exceptional responsiveness and stability.
• Textile and Printing Machines: Delivers accurate speed and tension control for intricate manufacturing processes.
• Metal Forming and Processing: Provides the necessary power and precision for presses, rolling mills, and other heavy equipment.
• HVAC Systems: Optimizes fan and pump operation for energy efficiency and climate control in large facilities.

Why Choose This Model?

The Control Techniques SP4403 is more than just a variable frequency drive; it's a strategic investment in efficiency and reliability for your industrial operations. Its powerful 103 A output is specifically engineered to effortlessly manage even the most demanding heavy-duty machinery, ensuring continuous and stable performance under significant load. Designed with precision at its core, the SP4403 excels in automation systems where accurate speed and torque control are paramount, leading to superior product quality and reduced waste. The modular and compact IP20 chassis design allows for flexible installation, ensuring it fits seamlessly into most existing and new control panel layouts without requiring extensive modifications. Furthermore, this drive is not only built for immediate performance but also for long-term efficiency, reliability, and scalability. Its advanced features contribute to considerable energy savings, lower maintenance costs, and a longer operational lifespan for your connected motors and equipment. Choosing the SP4403 means opting for a solution that enhances productivity, maximizes uptime, and supports the future growth and evolving demands of your industrial processes.

Order Now

Elevate your industrial operations with the superior control and efficiency of the Control Techniques SP4403 variable frequency AC drive. This high-performance Unidrive SP model is currently in stock and available for fast, reliable global shipment, ensuring you can quickly implement this powerful solution into your system. Don't compromise on quality or performance—choose a drive engineered for the most demanding applications. To explore additional drive options and complementary solutions, we invite you to browse the comprehensive Control Techniques Unidrive SP Modular category. For a complete overview of innovative motion control and drive technologies, visit the main Nidec (Control Techniques) category on our website. Secure your SP4403 today and experience the difference that precision engineering and robust power can make.
