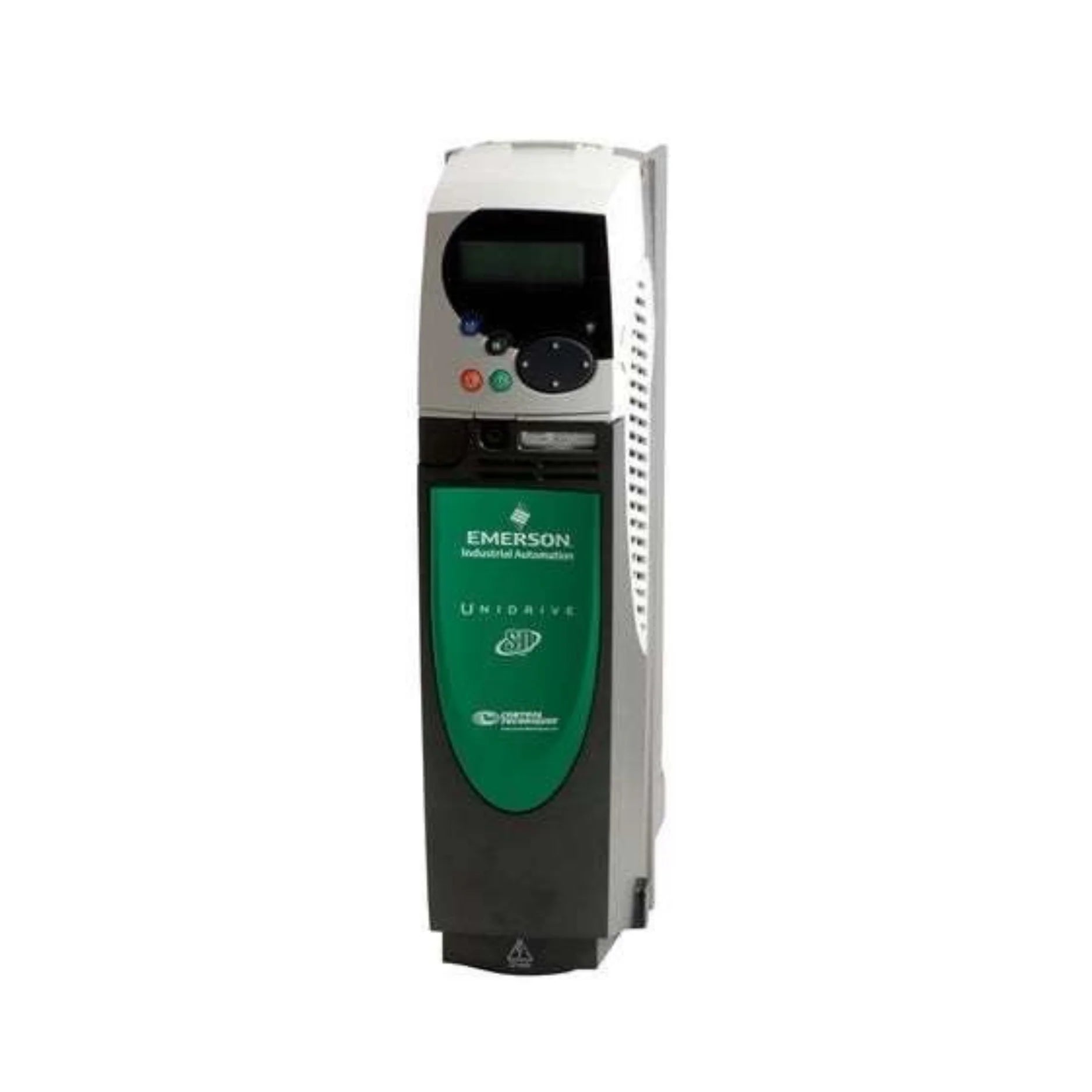

Control Techniques SP1402

Overview

The Control Techniques SP1402 is a robust and highly adaptable AC drive from the renowned Unidrive SP series, meticulously engineered by Nidec (Control Techniques) to deliver exceptional performance and versatility in a wide array of industrial automation applications. This compact, size 1 drive is specifically designed for 3-phase 460V operation, providing flexible motor control for both normal duty (3.8 A / 2 HP) and heavy-duty (3.0 A / 2 HP) demands. Optimized for seamless integration into systems utilizing remote control or external human-machine interfaces (HMIs), the SP1402 is supplied without an integrated keypad, emphasizing its suitability for embedded or centralized control architectures. Its IP20 rated enclosure and panel-mount design ensure straightforward installation in diverse industrial environments, making it a cornerstone for efficient and reliable motor control.

Key Features

• Input Voltage: 3‑phase 380–480 V AC, 50/60 Hz, ensuring broad compatibility with industrial power supplies.
• Normal Duty Rating: 3.8 A (2 HP / 1.5 kW), ideal for applications requiring standard continuous operation.
• Heavy Duty Rating: 3.0 A (2 HP / 1.5 kW), providing robust performance for more demanding and fluctuating loads.
• Compact Footprint: Size 1 drive, minimizing panel space requirements and facilitating integration into confined control cabinets.
• Efficient Cooling: Integrated fan cooling system for optimal thermal management and prolonged operational life.
• Enclosure Type: IP20 rated, panel-mount design offering protection against solid foreign objects.
• Keypad Configuration: Supplied without an integrated keypad, designed for use with remote keypads or HMI systems.
• Versatile Control Modes: Supports V/f (open-loop), closed-loop vector, and servo control (with encoder feedback), offering comprehensive motor control capabilities.
• Regenerative Capability: Compatible with optional modules for regenerative braking applications, enhancing energy efficiency.

Technical Specifications

• Model: SP1402
• Brand: Nidec (Control Techniques)
• Series: Unidrive SP
• Power Rating (Normal Duty): 2 HP / 1.5 kW
• Current Rating (Normal Duty): 3.8 A
• Power Rating (Heavy Duty): 2 HP / 1.5 kW
• Current Rating (Heavy Duty): 3.0 A
• Supply Voltage: 3-phase 380-480 VAC
• Frequency: 50/60 Hz
• Enclosure Rating: IP20
• Mounting: Panel Mount
• Cooling: Fan Cooled
• Keypad: Not Included

Applications

The Nidec (Control Techniques) SP1402 AC drive is a highly versatile solution, perfectly suited for optimizing a diverse range of industrial applications, including:

• Conveyors and Process Machinery: Providing precise speed and torque control for material handling systems and manufacturing processes.
• Light Automation and Packaging Equipment: Ensuring efficient and reliable operation in packaging lines and automated assembly.
• Fans, Blowers, and Pumps: Delivering energy-efficient control for HVAC systems, fluid transfer, and ventilation.
• OEM Machines: An ideal choice for original equipment manufacturers who integrate remote control panels or embedded systems.
• Compact Control Cabinets: Its small footprint makes it perfect for installations where space is at a premium yet high performance is critical.
• Textile Machinery: Offering precise control for various textile manufacturing processes.
• Mixers and Agitators: Providing consistent and reliable operation for mixing applications.

Why Choose This Model?

The SP1402 stands as a testament to Nidec (Control Techniques) commitment to engineering excellence, offering a compelling blend of features that make it a superior choice for industrial motor control:

• Dual-Duty Flexibility: Seamlessly switch between normal and heavy-duty operation to meet varying load demands without compromising performance.
• Space-Saving Design: Its compact Size 1 footprint ensures easy integration into existing or new control panels, maximizing valuable industrial real estate.
• Proven Unidrive SP Performance: Benefit from the robust and reliable performance characteristic of the globally recognized Unidrive SP series, ensuring longevity and consistent operation.
• Optimized for Remote Control: Designed for systems that utilize remote keypads or HMIs, providing enhanced flexibility and centralized control capabilities.
• Energy Efficiency: Engineered for efficient operation, contributing to reduced energy consumption and lower operational costs.
• Worldwide Availability: Easily accessible with worldwide shipping, ensuring your projects stay on schedule, wherever you are.

Order Now

Elevate your industrial automation capabilities with the Control Techniques SP1402 AC Drive. This high-performance, versatile drive is readily available and ships worldwide, ensuring you can quickly implement a robust and efficient motor control solution. For additional drive options and to explore the full spectrum of advanced motion control and drive technologies, we invite you to browse the comprehensive Control Techniques Unidrive SP Modular category or visit the main Nidec (Control Techniques) category.
