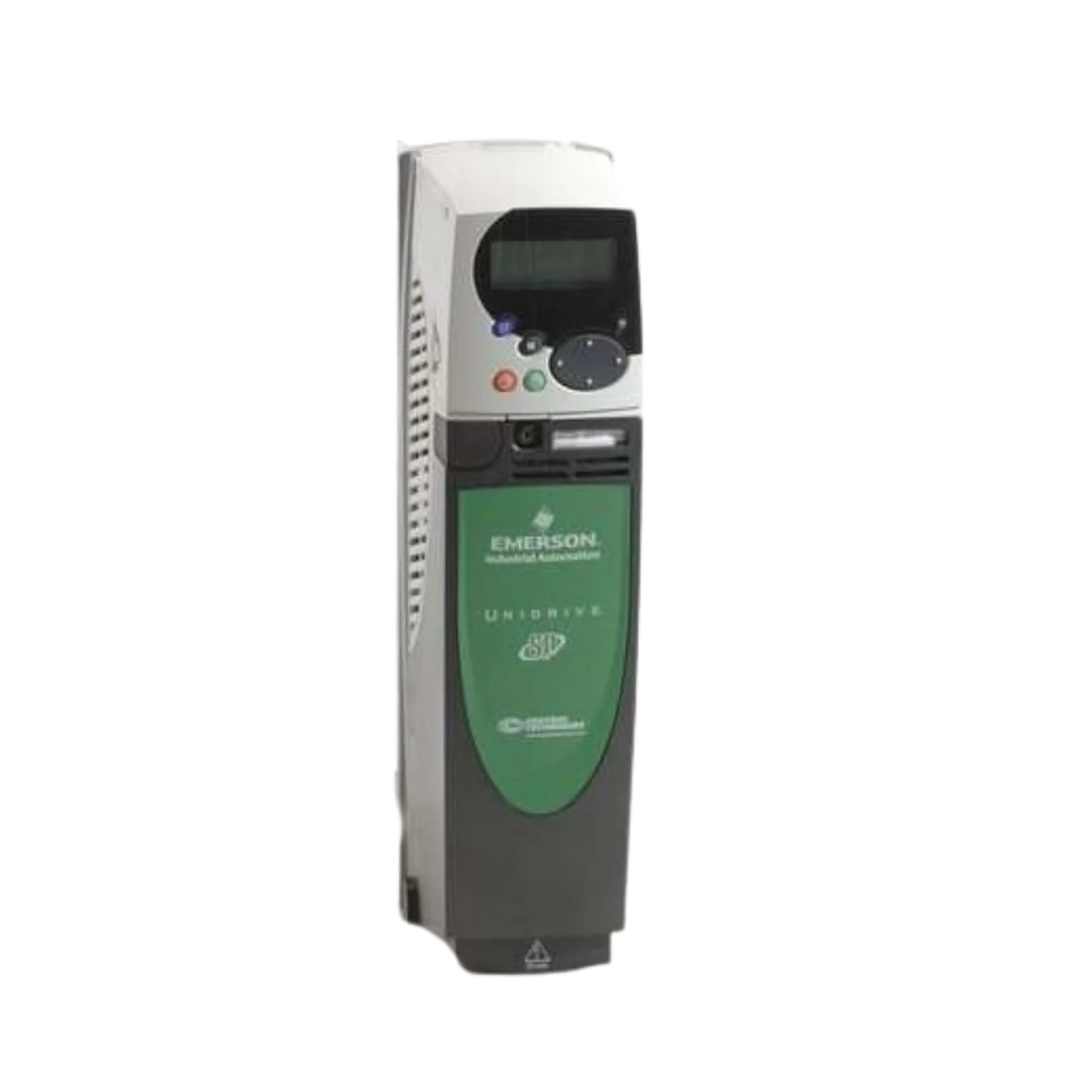

Control Techniques SP1401

Overview

The Control Techniques SP1401 is an advanced and highly efficient AC drive from the renowned Unidrive SP series, meticulously engineered by Nidec (Control Techniques) to deliver unparalleled precision motor control in diverse industrial settings. This compact powerhouse is specifically designed for 3-phase 380–480 V systems, offering exceptional versatility with dual ratings to support both normal duty (2.8 A / 1.5 HP) and heavy-duty (2.1 A / 1 HP) applications. As a size 1 module, its streamlined design without an integrated keypad makes it the perfect solution for seamless integration into existing control panels or for systems managed via remote control interfaces. The SP1401 embodies Control Techniques' commitment to innovation, providing robust performance in a minimal footprint.

Key Features

• Input Voltage: Robust 3-phase 380–480 V, 50/60 Hz compatibility, ensuring broad applicability across various global power systems.
• Normal Duty Rating: Delivers a powerful 2.8 A (1.5 HP / 1.1 kW), ideal for applications requiring consistent and reliable performance.
• Heavy Duty Rating: Capable of 2.1 A (1 HP / 0.75 kW) for more demanding industrial processes, showcasing its adaptable power delivery.
• Drive Size: Compact size 1 form factor, optimizing space utilization in control cabinets without compromising performance.
• Integrated Cooling: Features an efficient fan-cooled design to maintain optimal operating temperatures and ensure long-term reliability.
• Enclosure: IP20 protection rating, suitable for secure panel installation in industrial environments.
• Keypad: Designed for flexibility without an included keypad; optional remote keypad solutions are available for enhanced user control and system integration.
• Control Modes: Comprehensive control capabilities including Open-loop V/f for basic applications, Closed-loop vector for enhanced precision, and advanced Servo control with feedback for the most demanding motion control tasks.

Technical Specifications

The Control Techniques SP1401 is engineered with precision to meet stringent industrial demands. Its electrical specifications guarantee dependable operation across a variety of load conditions. The drive operates efficiently within a 3-phase AC input voltage range of 380V to 480V at standard industrial frequencies of 50/60 Hz. For normal duty applications, it provides a formidable 1.5 horsepower (1.1 kW) with a current output of 2.8 Amperes. When faced with more strenuous tasks, the heavy-duty rating still delivers a robust 1 horsepower (0.75 kW) at 2.1 Amperes. This dual rating ensures optimal performance and energy efficiency for both continuous and intermittent heavy loads. The compact mechanical design, encapsulated within an IP20-rated enclosure, facilitates easy panel mounting while protecting internal components from dust and direct contact. Its sophisticated control algorithms support a wide array of motor control strategies, from basic V/f to advanced servo control, providing superior dynamic response and accuracy.

Applications

• Light-duty Automation and Conveyors: Perfect for systems requiring smooth and consistent motor operation, enhancing productivity in logistics and assembly lines.
• Machine Tools and Material Handling: Provides precise control for intricate machining operations and efficient movement of goods in manufacturing and warehousing.
• HVAC Fans and Pumps: Optimizes the performance and energy consumption of heating, ventilation, air conditioning, and pumping systems in commercial and industrial buildings.
• Packaging and Compact Manufacturing Equipment: Ensures high-speed and accurate control for packaging machinery and other compact production units, improving throughput and reducing waste.
• OEM Systems with External HMI or PLC Control: An ideal component for original equipment manufacturers who integrate external human-machine interfaces or programmable logic controllers for centralized system management.

Why Choose This Model?

Choosing the Control Techniques SP1401 means investing in a solution that offers unmatched flexibility, reliability, and precision. Its dual-duty ratings provide substantial application flexibility, allowing you to optimize performance for various load types without needing different drives. The compact size 1 design is a significant advantage for installations where space is a premium, enabling high-density panel integration. Nidec (Control Techniques)'s commitment to quality ensures reliable performance for continuous operation, minimizing downtime and maximizing productivity. Furthermore, the SP1401 is fully compatible with advanced feedback modules, allowing for incredibly precise closed-loop control. Being remote control-ready, it is perfectly suited for modern OEM integrations, facilitating seamless system oversight and operation from a centralized point. This drive is not just a component; it is a critical enabler of efficient and advanced industrial processes.

Order Now

The Control Techniques SP1401 AC Drive is readily available and poised to enhance the efficiency and precision of your industrial applications. Benefit from its superior design and robust performance. This essential component for modern motor control and automation is available for immediate shipment to locations worldwide, ensuring that your operations can quickly adopt this cutting-edge technology. For additional drive options and to explore the full spectrum of Nidec (Control Techniques) advanced motion control and drive technologies, we invite you to discover more solutions within the Control Techniques Unidrive SP Modular category or browse the comprehensive Nidec (Control Techniques) main category. Elevate your system's capabilities today.
