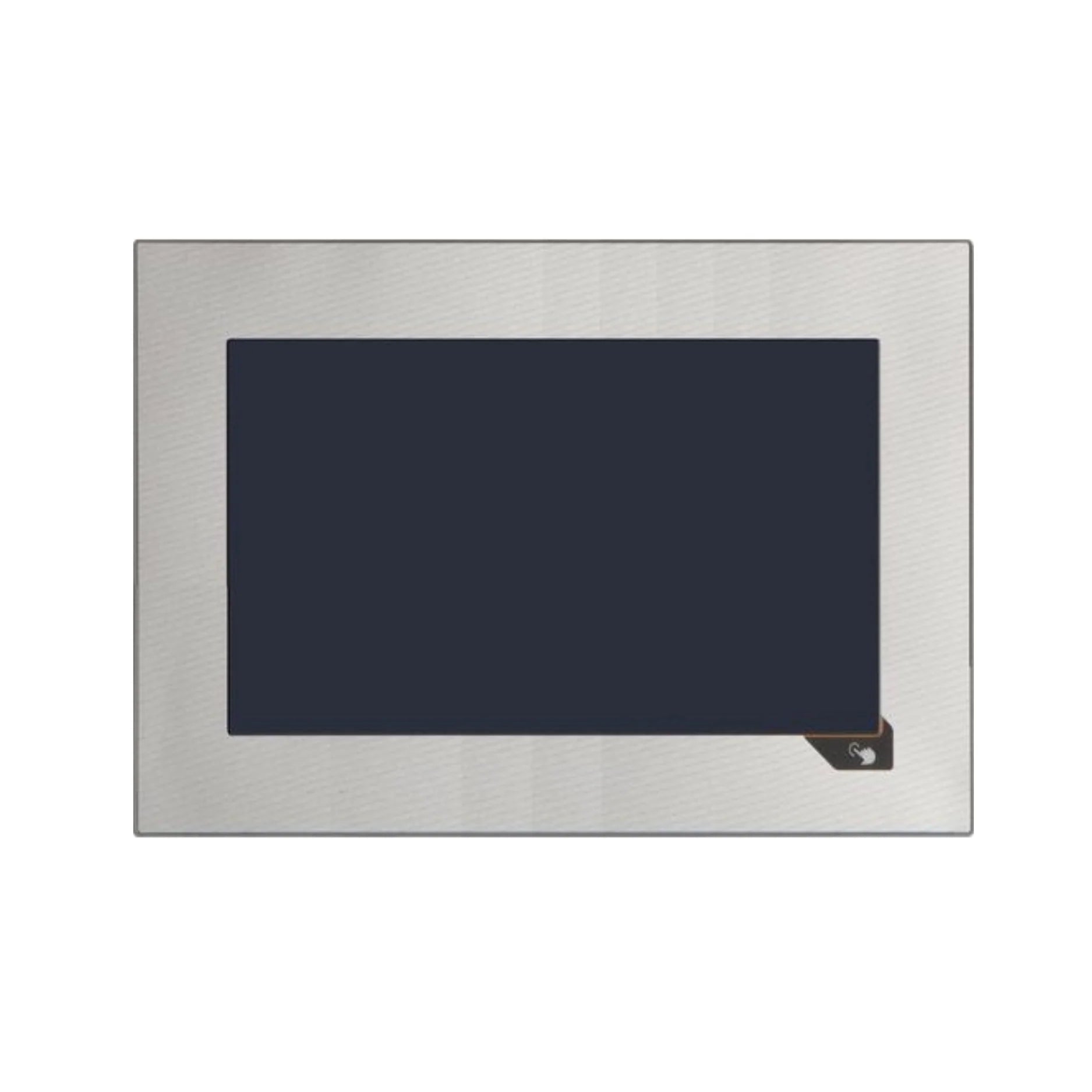

B&R 6PPT30.0702-20W

Overview

The B&R 6PPT30.0702-20W is an exceptional HMI (Human Machine Interface) from the renowned Power Panel T30 series, meticulously engineered for unparalleled performance in demanding industrial settings. This robust unit features a crisp 7-inch WVGA TFT touchscreen, providing intuitive and precise control. Most critically, it boasts full ATEX compliance, making it the perfect solution for deployment in hazardous environments where safety and reliability are paramount. Driven by an efficient ARM Cortex-A8 processor, this fanless panel PC ensures silent, dependable operation while optimizing energy consumption. Its compact design belies its powerful capabilities, delivering seamless control and vivid visualization within space-constrained systems. With integrated, robust communication interfaces, the 6PPT30.0702-20W is built to withstand and excel in the most challenging industrial conditions, offering both durability and advanced functionality.

Key Features

• Display: 7.0" TFT LCD with WVGA resolution (800 × 480 pixels) for clear, vibrant visuals.
• Touchscreen: Highly responsive analog resistive touchscreen for precise operator input.
• Processor: Powerful ARM Cortex-A8, clocked at 600 MHz, ensuring efficient data processing.
• Memory: Generous 256 MB DRAM coupled with 512 MB Flash memory for optimal performance and storage.
• Cooling: Advanced fanless passive cooling design, eliminating moving parts for enhanced reliability and longevity.
• Connectivity: Comprehensive connectivity options including 2 × Ethernet (RJ45) and 2 × USB 2.0 Type A ports.
• Design: Elegant and durable white aluminum bezel, designed for industrial aesthetics.
• Mounting: Engineered for seamless landscape flush installation, ensuring integration into control panels.
• Supply Voltage: Standard 24 VDC input, compatible with industrial power systems.
• Certifications: Fully ATEX compliant, certified for safe operation in explosive atmospheres.
• Protection: IP65 front panel protection, safeguarding against dust and water ingress.
• Operating Temperature: Wide operating temperature range of –20 °C to +60 °C, suitable for extreme environments.

Technical Specifications

The B&R 6PPT30.0702-20W is a meticulously engineered HMI unit, designed for peak performance and reliability. Its 7-inch TFT LCD offers a crisp WVGA resolution of 800 x 480 pixels, ensuring all critical information is displayed with clarity. The integrated analog resistive touchscreen provides a durable and responsive interface. At its core, an ARM Cortex-A8 processor operating at 600 MHz provides ample processing power, supported by 256 MB of DRAM and 512 MB of Flash memory. The fanless design ensures quiet operation and reduces maintenance needs. Connectivity is robust, featuring dual Ethernet ports for network integration and two USB 2.0 Type A ports for peripheral expansion. Power is supplied via a standard 24 VDC input. With an IP65 rated front, this HMI is highly resistant to environmental factors, further enhanced by its ATEX certification and wide operating temperature range from -20°C to +60°C.

Applications

• Hazardous Environment HMIs: Safely deploy operator interfaces in ATEX-classified zones.
• Machine Control and Automation: Provide intuitive control and monitoring for automated machinery and industrial processes.
• Embedded Industrial Systems: Ideal for integration into compact, high-performance embedded solutions.
• Oil, Gas, and Chemical Plants: Rugged design and ATEX compliance make it perfect for demanding process control.
• OEM Solutions Requiring ATEX Certification: A reliable choice for original equipment manufacturers needing certified hazardous area components.

Why Choose This Model?

Opting for the B&R 6PPT30.0702-20W means investing in an HMI that delivers unwavering performance and safety. Its paramount feature is its full ATEX certification, guaranteeing safe and compliant operation in explosive atmospheres, a critical requirement for specialized industries. The compact size, coupled with an expansive operating temperature range, allows for versatile installation in diverse and extreme conditions. Powering this unit is an energy-efficient ARM processor, ensuring reduced operational costs without compromising on processing capabilities. The fanless operation significantly extends the device's lifespan by eliminating dust accumulation and mechanical wear, leading to greater reliability and lower maintenance. Furthermore, integrated Ethernet and USB ports provide comprehensive connectivity options, facilitating easy integration into existing and new industrial networks. Choose the 6PPT30.0702-20W for a robust, reliable, and ATEX-certified HMI solution.

Order Now

Enhance your industrial operations with the B&R 6PPT30.0702-20W ATEX-compliant Power Panel T30. This advanced HMI is readily available and poised for immediate worldwide shipping. Secure your competitive edge with a solution that combines safety, performance, and B&R's renowned quality. Contact us today to place your order or to learn more about how this exceptional HMI can revolutionize your control systems. Explore our complete range of B&R Industrial HMI Panels for advanced operator solutions or browse the entire B&R portfolio, including PLC systems, motion control, and servo drives, all available for global delivery.
