B&R 5AP1120.121E-000

Overview

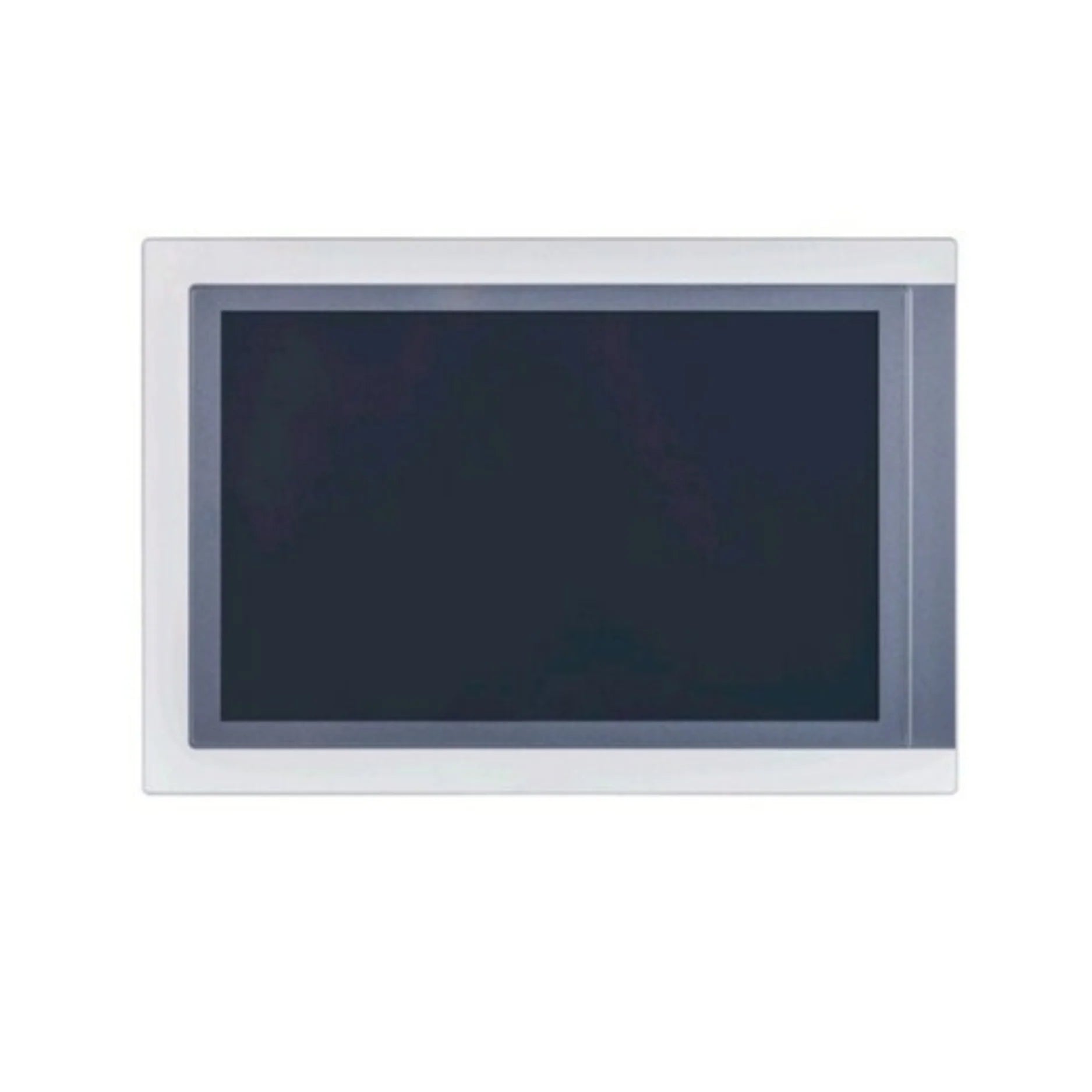

Elevate your industrial visualization capabilities with the B&R 5AP1120.121E-000, a robust 12.1-inch WXGA Human Machine Interface (HMI) panel engineered for demanding automation environments. This advanced touch panel is designed to provide crystal-clear visual feedback and intuitive control within your B&R systems, including the AP1000, PPC900, PPC2100, and PPC3100 series. Featuring a high-resolution 1280 × 800 TFT display, precise analog resistive touchscreen technology, and an IP65-rated front panel for superior dust and water resistance, the 5AP1120.121E-000 guarantees reliable performance, enhanced safety, and unparalleled ease of use in even the most challenging industrial settings. Its durable construction and intelligent design make it an indispensable component for modern factory automation and control applications.

Key Features

• Display Excellence: Immerse yourself in vibrant visuals with the 12.1" WXGA TFT display, boasting a sharp 1280 × 800 pixel resolution and a wide 16:10 aspect ratio for optimal viewing of complex data and graphics.
• Responsive Touch Control: Experience precise and reliable interaction through the single-touch analog resistive touchscreen, ideal for accurate data entry and command execution in industrial contexts.
• Optimized Backlight: Benefit from an energy-efficient LED backlight with an adjustable brightness range of 40–400 cd/m², ensuring optimal visibility in various lighting conditions.
• Extended Lifespan: Rely on the longevity of the LED backlight, designed for an impressive 50,000 hours of operation at half-brightness, minimizing maintenance and maximizing uptime.
• Industrial-Grade Protection: The IP65-rated front panel, compliant with EN 60529, offers robust protection against dust ingress and low-pressure water jets, safeguarding your investment in harsh environments. This panel is also UL 50 certified for indoor use.
• Flexible Mounting: Seamlessly integrate the HMI into your control cabinets in a landscape orientation, allowing for versatile installation options to suit your system's layout.
• Durable Construction: The precision-engineered frame, crafted from coated aluminum, provides exceptional durability and resistance to industrial wear and tear, ensuring long-term operational stability.
• Integrated Thermal Management: Built-in thermal sensors proactively monitor and regulate the panel's temperature, preventing overheating and ensuring consistent, reliable performance under varying operational loads.
• Reliable Power Input: Operates efficiently on a 24 VDC nominal power supply, with a generous ±25% tolerance, accommodating standard industrial power infrastructures.
• Lightweight Design: At just 2,300 g, this HMI panel offers a balance of robust construction and manageable weight for easier installation and system integration.

Technical Specifications

• Model Number: B&R 5AP1120.121E-000
• Display Size: 12.1 inches
• Display Type: WXGA TFT
• Resolution: 1280 x 800 pixels
• Aspect Ratio: 16:10
• Touch Technology: Analog Resistive (Single-touch)
• Backlight Type: LED
• Backlight Brightness: 40–400 cd/m²
• Backlight Lifespan: 50,000 hours (at half-brightness)
• Front Panel Protection: IP65 (EN 60529), UL 50 Indoor Use
• Mounting: Control Cabinet, Landscape Orientation
• Frame Material: Coated Aluminum
• Thermal Sensors: Integrated
• Power Supply: 24 VDC nominal (±25% tolerance)
• Weight: 2,300 g

Applications

The B&R 5AP1120.121E-000 HMI is a versatile solution for a broad spectrum of industrial applications, providing critical visualization and control capabilities:

• Factory Automation: Serve as the primary Human-Machine Interface for controlling and monitoring manufacturing processes, production lines, and robotic systems.
• Machine and Plant Control: Offer intuitive visualization and operational control for complex machinery, industrial equipment, and entire plant operations.
• Embedded Control Systems: Integrate seamlessly into embedded control architectures, providing a robust interface for specialized industrial machines.
• Indoor Operator Panels: Ideal for cabinet-mounted operator panels in various indoor industrial settings, offering a durable and reliable user interface.
• Process Control: Enable real-time monitoring and management of critical process parameters in industries such as chemicals, pharmaceuticals, and food & beverage.

Why Choose This Model?

When selecting an HMI solution, the B&R 5AP1120.121E-000 stands out for its superior design and performance:

• Unmatched Clarity: The high-resolution WXGA display delivers exceptional visual clarity, making complex data and graphical interfaces easier to understand and interact with.
• Robust Reliability: Engineered with a resilient analog resistive touch panel and IP65 front protection, this HMI is built to withstand the rigors of challenging industrial environments.
• Durability for the Long Haul: With an extended LED backlight lifespan and a rugged coated aluminum frame, the 5AP1120.121E-000 is a long-term investment, ensuring consistent operation and reduced downtime.
• Seamless Integration: Designed for effortless integration with B&R's PPC systems (PPC900, PPC2100, PPC3100), it ensures compatibility and optimized performance within your existing or new automation infrastructure.
• Enhanced Operator Experience: The intuitive touch interface and clear display empower operators to manage processes more efficiently and safely, leading to improved productivity.

Order Now

Enhance your industrial automation with the advanced capabilities of the B&R 5AP1120.121E-000 HMI touch panel. This essential component for modern control systems is readily available and ready to optimize your operations. We offer worldwide shipping to ensure that your industrial needs are met, no matter your location. Secure your B&R 5AP1120.121E-000 today and experience the difference in performance and reliability.
