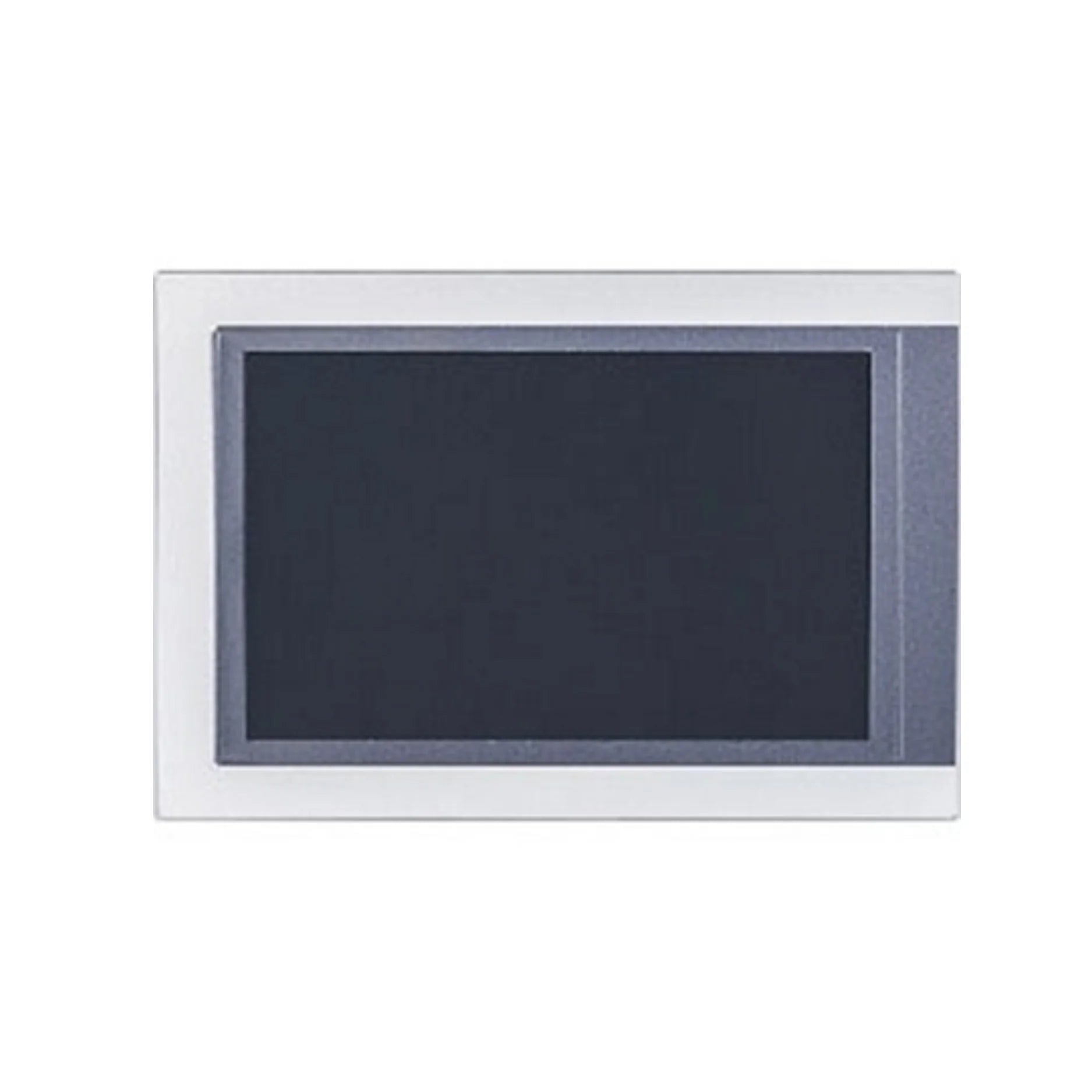

B&R 5AP1120.101E-000

Overview

Elevate your industrial control systems with the B&R 5AP1120.101E-000, a high-performance 10.1-inch WXGA Human Machine Interface (HMI) meticulously engineered for reliability and precision in the most challenging environments. This compact yet powerful automation panel seamlessly integrates with B&R AP1000 systems, delivering crystal-clear visualization and responsive control. Boasting a vibrant 1280 × 800 TFT display, an intuitive analog resistive touch interface, and uncompromised IP65/UL Type 4X protection, the 5AP1120.101E-000 stands as a testament to B&R's commitment to industrial excellence. Furthermore, its crucial HazLoc (Hazardous Location) certification ensures safe and compliant operation in areas where explosive atmospheres may be present, making it an indispensable asset for a wide array of industrial applications.

Key Features

• Superior Display Technology: Experience exceptional clarity with a 10.1-inch WXGA TFT display, offering a high resolution of 1280 × 800 pixels and a modern 16:10 aspect ratio for detailed graphic representation.
• Responsive Analog Resistive Touchscreen: Enjoy precise and reliable control through the analog resistive single-touch interface, ensuring accurate input even in demanding industrial settings.
• Vibrant Color Depth: Benefit from an extensive color palette of 16.7 million colors, providing rich and accurate visual feedback for complex process visualization.
• Durable LED Backlight: Equipped with a long-life LED backlight, this HMI guarantees consistent brightness and extended operational lifespan, reducing maintenance needs.
• Robust Front Design: The front panel features a sleek dark gray (RAL 7024) finish, offering both aesthetic appeal and enhanced durability.
• Flexible Mounting Options: Designed for landscape orientation and flush mounting within control cabinets, ensuring a neat and integrated installation.
• Comprehensive Certifications for Safety and Durability:
  • IP65 Front Protection: Shields against dust ingress and low-pressure water jets from any direction.
  • UL Type 4X Certification: Provides superior protection against corrosion, windblown dust and rain, splashing water, hose-directed water, and external ice formation.
  • cULus HazLoc Approved: Certified for safe operation in hazardous locations, meeting strict safety standards for potentially explosive atmospheres.
• Seamless AP1000 System Compatibility: Specifically designed to integrate flawlessly with B&R AP1000 Series systems, ensuring optimal performance and compatibility.

Technical Specifications

• Panel Type: Automation display
• Display Size: 10.1 inches
• Resolution: 1280 × 800 (WXGA)
• Touch Technology: Single-touch, analog resistive
• Protection Class: IP65 / UL Type 4X (front), HazLoc certified
• Orientation: Landscape
• Mounting: Control cabinet flush
• Operating Temperature: 0…+50 °C (typical)

Applications

• Advanced Industrial HMI for Machine Control: Ideal for providing intuitive and responsive control interfaces for a wide range of industrial machinery and automation processes.
• Visualization in Hazardous Locations: Safely deploy in industries such as oil and gas, chemical processing, and pharmaceuticals where HazLoc certification is mandatory.
• Compact Automation Panel Systems: Perfectly suited for integration into compact automation systems where space-saving and high performance are crucial.
• Indoor Control Cabinet Installations: Designed for reliable operation when flush-mounted within indoor control cabinets, maintaining a clean and protected setup.

Why Choose This Model?

The B&R 5AP1120.101E-000 represents a strategic investment in industrial automation, offering a unique blend of features that set it apart. Its high-resolution WXGA display in a compact 10.1-inch form factor ensures that operators receive clear, detailed visual information without sacrificing valuable panel space. The dual certifications of HazLoc and UL Type 4X underscore its unparalleled safety and durability, making it an ideal choice for the most demanding and regulated industrial environments. The long-lasting LED backlight not only provides a vivid and consistent display but also contributes to reduced energy consumption and lower total cost of ownership. Seamless compatibility with B&R AP1000 automation setups guarantees a straightforward integration process and optimized system performance. Moreover, its robust, dustproof, and water-resistant front design ensures longevity and reliable operation even when exposed to harsh industrial conditions, protecting your investment for years to come. Choose the 5AP1120.101E-000 for an HMI solution that combines precision, safety, and enduring performance.
