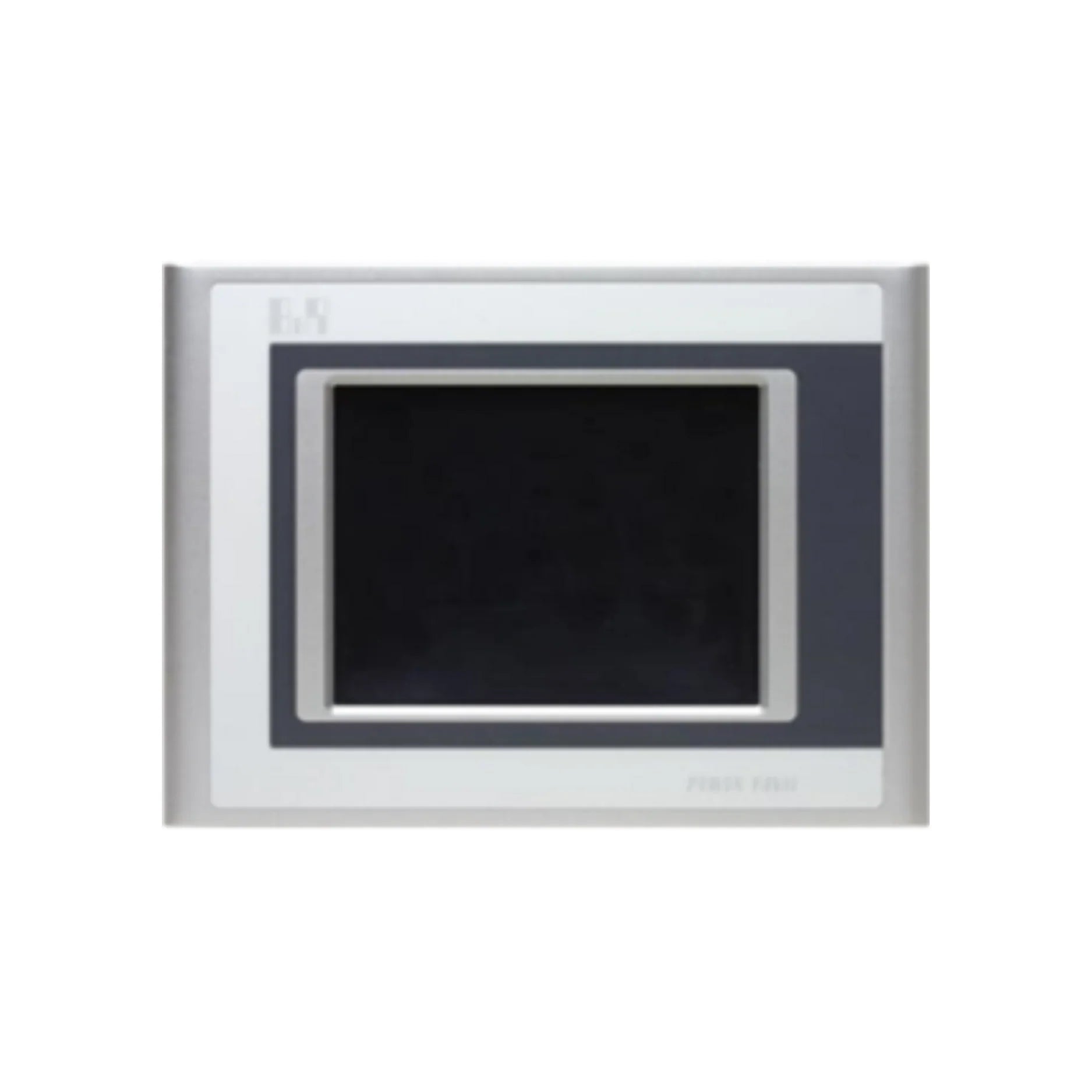

B&R 4PP420.0571-75

Overview

The B&R 4PP420.0571-75 is a robust and compact Human Machine Interface (HMI) from B&R's acclaimed Power Panel 400 series, meticulously engineered for demanding industrial environments. This integrated panel PC combines a vibrant 5.7-inch QVGA TFT touch display with powerful processing capabilities, offering a streamlined solution for machine-level HMI tasks. Designed for optimal performance, it features an AMD Geode LX800 processor, ensuring efficient operation for visualization and control applications. Its fanless architecture and space-saving design make it an ideal choice for embedded automation, delivering reliability and durability where it matters most. With its comprehensive industrial-grade build and flexible I/O options, the 4PP420.0571-75 empowers advanced control and monitoring across a diverse range of industrial sectors.

Key Features

• Display Excellence: A crisp 5.7" TFT QVGA (320 × 240 pixels) display with integrated analog resistive touchscreen for intuitive user interaction.
• Powerful Processing: Equipped with an AMD Geode LX800 processor running at 500 MHz, ensuring responsive and efficient application execution.
• Memory Configuration: Features 128 MB DDR SDRAM and 2 MB Flash memory for reliable data handling and system operation.
• Flexible Expansion: Includes 1 × CF Type I slot and 1 × PCI slot, offering valuable expansion possibilities for diverse application requirements.
• Comprehensive Connectivity: Provides 2 × USB 2.0 Type A ports, 1 × RJ45 Ethernet port for network integration, and 1 × RS-232 (9-pin D-Sub) for serial communication.
• Robust Cooling: Engineered with a fanless passive design, guaranteeing silent operation, enhanced reliability, and reduced maintenance.
• Durable Construction: Benefits from an IP65 / NEMA 4X protection rating on the front, safeguarding against dust and water ingress in harsh industrial settings.
• Optimized Power: Operates efficiently within an 18–30 VDC range, with a nominal 24 VDC power supply, ideal for industrial power systems.
• Wide Operating Temperature: Reliably performs across a temperature range of 0 °C to +50 °C, suitable for various environmental conditions.

Technical Specifications

• Model: B&R 4PP420.0571-75
• Series: Power Panel 400
• Display Size: 5.7 inches
• Display Type: TFT QVGA
• Resolution: 320 x 240 pixels
• Touchscreen Type: Analog Resistive
• Processor: AMD Geode LX800 (500 MHz)
• RAM: 128 MB DDR SDRAM
• Flash Memory: 2 MB
• Expansion Slots: 1 x CF Type I, 1 x PCI
• USB Ports: 2 x USB 2.0 Type A
• Ethernet: 1 x RJ45
• Serial Port: 1 x RS-232 (9-pin D-Sub)
• Cooling: Fanless, passive
• Backlight: CCFL
• Mounting: Landscape flush installation
• Power Input: 18-30 VDC (24 VDC nominal)
• Front Protection: IP65 / NEMA 4X
• Operating Temperature: 0 °C to +50 °C
• Bezel Color: Gray

Applications

• Machine Automation: Serves as a compact yet powerful HMI solution for a wide array of automation equipment, enhancing operator control and oversight.
• OEM Systems: Integrates seamlessly as a reliable machine interface within Original Equipment Manufacturer (OEM) setups, ensuring consistent performance.
• Industrial Control & Monitoring: Ideal for critical industrial control and monitoring tasks, providing clear visualization and precise command execution.
• Embedded Systems: Perfectly suited for embedded systems requiring robust HMI capabilities and the flexibility of PCI expansion.
• Process Visualization: Offers clear and concise process visualization in manufacturing, energy, and other industrial sectors.

Why Choose This Model?

• Integrated Efficiency: The 4PP420.0571-75 offers a truly integrated solution, combining a display and advanced control functionalities within a remarkable compact footprint, optimizing panel space and simplifying installation.
• Unwavering Reliability: Experience peace of mind with a fanless design, significantly reducing maintenance needs and ensuring reliable operation even in challenging industrial environments. Its wide voltage range further enhances operational stability.
• Expandability for the Future: Equipped with a crucial PCI slot and versatile USB connectivity, this model delivers essential expansion flexibility, allowing for future system upgrades and customization to meet evolving application demands.
• B&R Automation Ready: Seamlessly compatible with B&R Automation Runtime, allowing for quick integration into existing B&R automation architectures and leveraging a powerful, established ecosystem.
• Superior Durability: The IP65 front rating guarantees exceptional protection against dust and water ingress, ensuring the HMI's longevity and consistent performance in harsh industrial settings.

Order Now

Elevate your industrial automation capabilities with the B&R 4PP420.0571-75 Power Panel. This high-performance HMI is available for immediate order and benefits from our efficient worldwide shipping services, ensuring it reaches your facility, wherever you are. Experience the precision, durability, and advanced control that B&R is renowned for.
