B&R 4PP420.0571-45

Overview

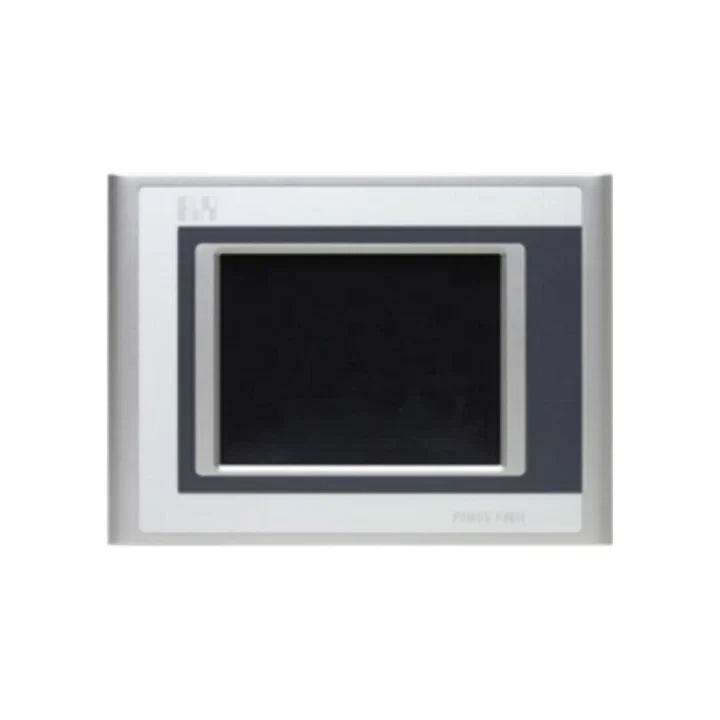

The B&R 4PP420.0571-45 stands as a robust and space-efficient Human Machine Interface (HMI) solution, meticulously engineered for demanding industrial environments. As a cornerstone of the acclaimed B&R PP420 series, this Power Panel integrates a vibrant 5.7-inch monochrome QVGA LCD with a highly responsive resistive touchscreen, offering intuitive operator control. Its compact design belies a powerful core, featuring a dedicated aPCI slot for expanded functionality and a suite of standard industrial I/O interfaces, ensuring seamless integration into diverse automation systems. Designed for efficiency and reliability, this HMI is perfect for applications requiring clear data visualization and straightforward interaction.

Key Features

• Display: Crisp 5.7-inch monochrome QVGA (320 × 240 pixels) screen for clear visual feedback.
• Touchscreen: Durable and accurate analog resistive touchscreen for reliable operation in industrial settings.
• Memory: Equipped with 128 MB SDRAM and 512 KB SRAM to handle critical application data.
• Expansion Capabilities: Features 1 × aPCI slot for modular extensions and a CompactFlash slot (Type I) for additional storage.
• Interfaces: Comprehensive connectivity including 2 × USB 2.0 ports, 1 × RS232 serial port, and 1 × Ethernet 10/100 (RJ45) for versatile networking.
• Mounting: Designed for flush-mount installation in landscape orientation, optimizing panel space.
• Front Protection: IP65 rated front panel ensures exceptional resistance against dust and water ingress, ideal for harsh industrial conditions.
• Power Supply: Operates efficiently on a standard 24 VDC power input.
• Terminal Blocks: Compatible with separately orderable terminal blocks (0TB103.9 or 0TB103.91) for flexible wiring.

Technical Specifications

This B&R Power Panel features a 5.7" monochrome QVGA (320 x 240) LCD display, providing essential visual information. The analog resistive touchscreen offers precise input capabilities. Internally, it is equipped with 128 MB of SDRAM for run-time operations and 512 KB of SRAM for persistent data storage. Connectivity is robust, including two USB 2.0 ports for peripheral devices, one RS232 port for serial communication, and an Ethernet 10/100 port (RJ45) for network integration. Expansion is facilitated by one aPCI slot and a CompactFlash slot (Type I). The unit is designed for flush mounting in a landscape orientation and boasts an IP65 rated front panel, ensuring protection against environmental elements. Power is supplied via 24 VDC. Specific terminal blocks, 0TB103.9 or 0TB103.91, are required and sold separately to complete the installation.

Applications

• Compact HMI Solutions: Ideal for applications where panel space is at a premium, offering powerful control in a small footprint.
• OEM Control Panels: Perfect for original equipment manufacturers seeking a reliable, customizable, and integrated HMI component.
• Machine-Level Interface Terminals: Provides a direct and efficient interface for individual machine control and monitoring, enhancing operational precision.
• Legacy Automation System Replacements: A cost-effective and modern upgrade path for replacing older, less efficient HMI units in existing automation infrastructures.
• Industrial Process Visualization: Suitable for displaying critical process data, alarms, and operational statuses in a clear, monochrome format.

Why Choose This Model?

The B&R 4PP420.0571-45 is an exemplary choice for engineers and system integrators prioritizing reliability, durability, and efficiency in industrial HMI applications. Its efficient monochrome interface is designed for clarity in simple tasks, reducing visual clutter and focusing on essential information. The IP65-rated front panel guarantees robust protection against environmental hazards such as dust and water splashes, making it suitable for even the harshest industrial settings. Beyond its physical resilience, this model's compact size is a significant advantage, allowing for seamless integration into confined cabinet spaces without compromising on functionality. Furthermore, the inherent expandability via its aPCI slot offers unmatched flexibility for modular control upgrades and system adaptations, ensuring your investment remains relevant as your operational needs evolve. This combination of rugged construction, compact design, and versatile expandability makes the 4PP420.0571-45 an indispensable component for modern industrial automation.

Order Now

Elevate your industrial control systems with the B&R 4PP420.0571-45 Power Panel. This high-performing HMI solution is readily available and ready to enhance your operational efficiency. We are pleased to offer worldwide shipping, ensuring that this essential component can reach your facility no matter your location. Take the next step towards optimized control and reliable performance by securing your B&R 4PP420.0571-45 today.
