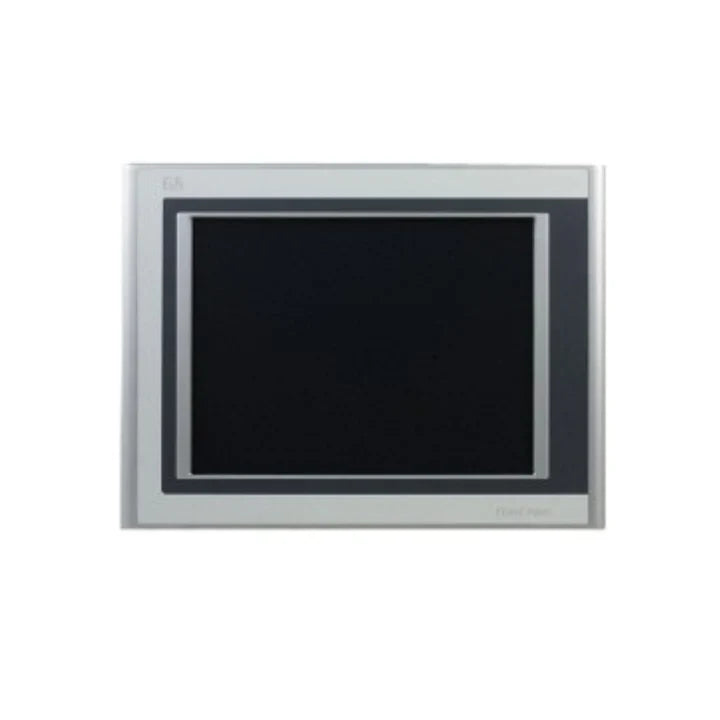

B&R 4PP220.1043-75

Overview

The B&R 4PP220.1043-75 is a high-performance 10.4-inch Human Machine Interface (HMI) from B&R's renowned Power Panel PP220 series, engineered for demanding industrial environments. This rugged operator panel combines a vibrant VGA TFT color display with a precise resistive touchscreen, ensuring intuitive and reliable interaction. Its compact yet robust metal housing, featuring IP65 front protection, safeguards against dust and water ingress, making it suitable for harsh conditions. Equipped with a 64 MB SDRAM, aPCI expansion slot, and multiple communication interfaces, the 4PP220.1043-75 delivers robust performance and versatile connectivity options. With its steadfast 24 VDC operation, this HMI is an ideal solution for intricate industrial automation needs, providing operators with clear visualization and efficient control capabilities.

Key Features

• Display: Crystal-clear 10.4" VGA TFT color display with 640 × 480 resolution for optimal visual clarity.
• Touchscreen: Highly responsive analog resistive touchscreen for precise operator input and control.
• Memory: 64 MB SDRAM for efficient program execution and 256 kB SRAM for critical data retention.
• Expansion: Integrated 1 × aPCI expansion slot, offering enhanced functionality and customization opportunities.
• Storage: Convenient CompactFlash Type I slot for flexible and reliable data storage.
• Connectivity: Comprehensive interface options including 2 × USB ports, 1 × RS232 serial port, and 1 × Ethernet 10/100 Mbit/s for seamless network integration.
• Durability: Rugged metal front with IP65 protection, ensuring resistance to dust and splashing water for extended operational life.
• Power Supply: Reliable 24 VDC power input, ensuring consistent performance in industrial settings (requires terminal block: 0TB103.9 or 0TB103.91).

Technical Specifications

The B&R 4PP220.1043-75 is meticulously designed with the following technical specifications to meet rigorous industrial standards:

• Model Number: 4PP220.1043-75
• Series: Power Panel PP220
• Display Size: 10.4 inches
• Display Type: VGA TFT Color
• Resolution: 640 x 480 pixels
• Touch Technology: Analog Resistive
• SDRAM: 64 MB
• SRAM: 256 kB
• Expansion Slot: 1 x aPCI
• Storage Slot: CompactFlash Type I
• USB Ports: 2
• Serial Port: 1 x RS232
• Ethernet: 1 x 10/100 Mbit/s
• Front Protection: IP65
• Housing Material: Metal front
• Power Input: 24 VDC
• Required Terminal Block: 0TB103.9 or 0TB103.91

Applications

The versatility and robustness of the B&R 4PP220.1043-75 make it an ideal choice for a wide array of industrial applications, including:

• Industrial Control and Machine Interfaces: Serving as the primary interface for operating and monitoring various industrial machinery and control systems.
• Visualization Terminals in Automated Systems: Providing clear and detailed graphical representations of processes and data within complex automated production lines.
• Operator Panels for Manufacturing Environments: Enhancing operational efficiency and user interaction in manufacturing facilities with demanding conditions.
• System Integration with aPCI-based Expansion: Offering seamless integration into existing systems requiring aPCI expansion for specialized functionalities and enhanced capabilities.
• Process Control and Monitoring: Essential for real-time monitoring and control in sectors such as chemical processing, pharmaceuticals, and food and beverage production.

Why Choose This Model?

Selecting the B&R 4PP220.1043-75 means investing in reliability, performance, and future-proof expandability:

• Superior Visualization: Experience unparalleled clarity with the high-quality 10.4" VGA display, ensuring all critical data and graphics are presented crisply and accurately.
• Enhanced Functionality: The integrated aPCI slot provides significant flexibility for future expansions and customization, allowing the HMI to adapt to evolving technological requirements.
• Comprehensive Connectivity: Benefit from a wide range of integrated communication ports including USB, RS232, and Ethernet, alongside CompactFlash storage, ensuring seamless data exchange and system integration.
• Unmatched Durability: With its robust metal front and IP65 rating, this Power Panel is built to withstand the most challenging industrial environments, guaranteeing long-term operational integrity and reduced downtime.
• Flexible Installation: Designed for ease of integration, it offers flexible installation options with both screw or cage clamp terminals, streamlining setup and maintenance.
• Global Reliability: B&R’s reputation for quality and global support ensures that you are acquiring a product recognized for its performance and dependability worldwide.

Order Now

The B&R 4PP220.1043-75 Power Panel, a leading industrial HMI offering superior robust design and advanced features, is readily available for purchase. Secure this essential component for your industrial automation needs today; we proudly offer reliable worldwide shipping to ensure your operations continue without interruption.
