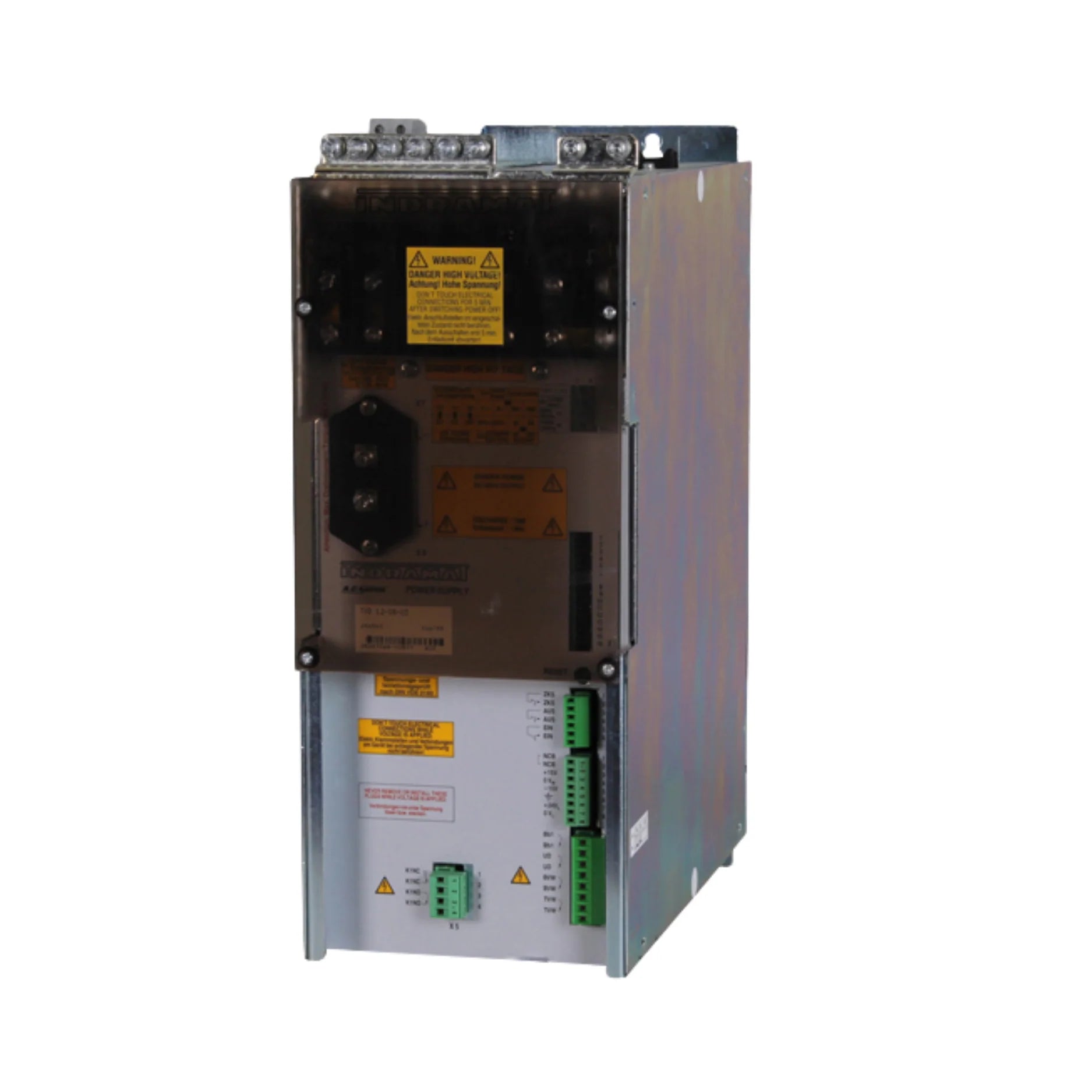

Bosch Rexroth TVD 1.3-15-03

Overview

The Bosch Rexroth Indramat TVD 1.3-15-03 Power Supply Module is engineered to be the robust heart of your most demanding industrial automation systems. As a distinguished member of the TVD Power Supply Modules series, this unit is meticulously designed to provide a consistently stable 320 V DC bus voltage, crucial for the optimal operation of high-performance multi-axis drive configurations. With an impressive continuous power delivery of 15 kW and the capability to handle peak loads up to 45 kW, the TVD 1.3-15-03 ensures uninterrupted and reliable operation even under the most strenuous industrial conditions.

Beyond its exceptional power delivery, this module excels in energy management. It features a robust 1 kW bleeder continuous power rating and can proficiently handle up to 60 kW of regenerated energy per second. This advanced energy handling capability is vital for maintaining system stability during braking and regeneration cycles, safeguarding your critical machinery. Its compact yet incredibly durable construction ensures a long operational lifespan and makes it an ideal, space-saving component for cabinet-mounted installations within sophisticated automation infrastructures.

Key Features

• High Continuous Power: Delivers a steady 15 kW for consistent performance.
• Peak Power Capability: Handles demanding surges with up to 45 kW peak power.
• Optimal Input Voltage: Operates efficiently with 380–480 V AC, three-phase input.
• Stable DC Output: Provides a regulated 320 V DC output for precise control.
• Integrated Bleeder: Features a 1 kW continuous bleeder rating for superior energy dissipation.
• Efficient Regeneration: Manages 60 kW per second of regenerated energy, enhancing system stability.
• Minimal Basic Losses: Operates with only 75 W basic losses, ensuring energy efficiency.
• Robust Protection: Boasts an IP10 rating for reliable protection in industrial environments.
• Cabinet-Optimized Installation: Designed specifically for secure and efficient cabinet mounting.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Series: TVD Power Supply Modules
• Model Number: TVD 1.3-15-03
• Rated Power: 15 kW continuous; 45 kW peak
• Input Voltage: 380–480 V AC, 3-phase
• DC Bus Voltage: 320 V DC (regulated)
• Bleeder Power: 1 kW continuous
• Energy Handling: 60 kW/s regenerated energy
• Power Loss: 75 W
• Protection Rating: IP10
• Dimensions: Optimized for standard cabinet footprints
• Weight: 11.2 kg
• Cooling: Requires adequate cabinet ventilation for proper operation

Applications

The Bosch Rexroth TVD 1.3-15-03 Power Supply Module is a versatile and indispensable component across a multitude of high-performance industrial applications, including but not limited to:

• Multi-axis Servo Drive Systems: Providing stable power for complex, synchronized motion control.
• Machine Tools: Ensuring precise and reliable operation in milling, turning, and grinding applications.
• Packaging and Material Handling: Powering high-speed and efficient automated packaging lines and conveyor systems.
• High-Performance Industrial Automation: A core component for demanding automated processes requiring consistent power and advanced energy management.

Why Choose This Model?

Opting for the Bosch Rexroth TVD 1.3-15-03 means investing in unparalleled reliability, efficiency, and performance for your industrial operations. This model stands out for several compelling reasons:

• Unwavering Stability: It provides a profoundly stable DC bus power, absolutely essential for the most sensitive and demanding automation applications, preventing operational disruptions.
• Superior Energy Management: With its integrated bleeder, the TVD 1.3-15-03 expertly handles high levels of regeneration and braking energy, enhancing system longevity and preventing overheating.
• Compact and Built to Last: Its robust design, optimized for cabinet mounting, ensures it can withstand harsh industrial environments while minimizing space requirements.
• Optimized for Continuous Operation: Engineered for sustained industrial use, this module guarantees reliability and peak efficiency, translating into reduced downtime and increased productivity.
• Seamless Integration: Designed for perfect compatibility, it integrates effortlessly with existing Bosch Rexroth Indramat drive systems, streamlining installation and enhancing overall system synergy.
