Bosch Rexroth PV45-RGC1 / 0811405101

Overview

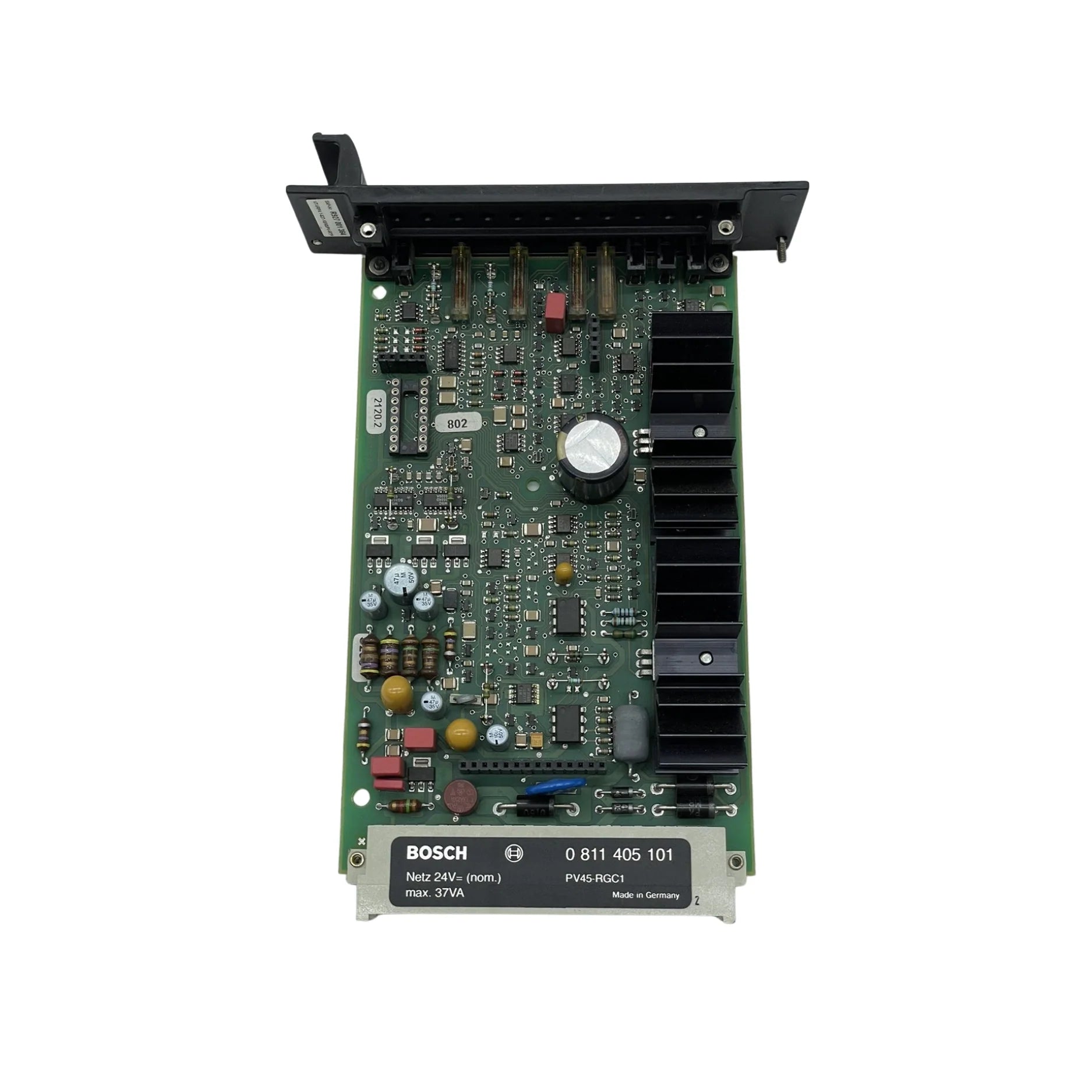

The Bosch Rexroth Indramat 0 811 405 101, also known as the PV45-RGC1, is a high-performance servo amplifier card from the acclaimed 1M Series. Meticulously engineered for unparalleled precision, this module provides robust control for both proportional valves and servo motors in demanding industrial environments. Operating efficiently from a 24 V DC power supply, it features a maximum current rating of 2.5 A, ensuring efficient power conversion and exceptionally stable motion control across a wide array of industrial automation systems.

Designed with practicality and performance in mind, the PV45-RGC1 boasts a compact PCB footprint of just 100 x 160 x 35 mm. Its IP40 protection class and remarkably lightweight design, tipping the scales at only 0.25 kg, facilitate seamless integration into control cabinets without compromising reliability or performance. Furthermore, this advanced servo amplifier card is equipped with a sophisticated smoothing capacitor to effectively minimize ripple, alongside accessible trim potentiometers for precise ramp adjustments. This combination guarantees consistent, optimized control, crucial for applications where precision and stability are paramount.

Key Features

• Part of the esteemed Bosch Rexroth Indramat 1M Servo Amplifier Card Series
• Rated current: 2.5 A (with a maximum solenoid current of 2.7 A)
• Supply voltage: 24 V DC for energy-efficient operation
• Power consumption: up to 60 W
• Output Signal: 10.2 Veff at 7.8 kHz, ensuring accurate feedback
• Ramp functions are conveniently adjustable via trim potentiometers for fine-tuning
• Integrated smoothing capacitor for superior ripple control
• Compact PCB dimensions: 100 × 160 × 35 mm for easy integration
• Lightweight design: approximately 0.25 kg
• Protection class: IP40, offering reliable protection against ingress

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Model: PV45-RGC1 / 0 811 405 101
• Type: Servo amplifier card
• Supply Voltage: 24 V DC
• Current Rating: 2.5 A
• Max Solenoid Current: 2.7 A
• Power Consumption: 60 W max.
• Output Signal: 10.2 Veff at 7.8 kHz
• Ramp Adjustment: Configurable via trim potentiometer
• Dimensions: 100 × 160 × 35 mm
• Weight: 0.25 kg
• Protection: IP40

Applications

The versatility and precision of the Bosch Rexroth PV45-RGC1 make it an indispensable component across a wide range of industrial applications, including but not limited to:

• Precise proportional valve control in hydraulic systems
• Accurate servo motor regulation for optimal performance
• Advanced CNC machine tools requiring high-fidelity motion control
• Automated packaging and processing equipment where reliability is key
• General industrial automation systems demanding robust and consistent performance

Why Choose This Model?

Opting for the Bosch Rexroth PV45-RGC1 / 0 811 405 101 servo amplifier card means investing in a solution that delivers exceptional performance, reliability, and ease of integration:

• Compact and Lightweight Design: Its small footprint and minimal weight simplify cabinet integration, maximizing space efficiency.
• Adjustable Ramp Functions: Easily modifiable ramp settings via trim potentiometers allow for precise, load-specific control tailored to your exact application needs.
• Superior Ripple Suppression: The integrated smoothing capacitor ensures a clean power supply, contributing to enhanced stability and control accuracy.
• Unwavering Bosch Rexroth Reliability: Benefit from the renowned quality and durability that Bosch Rexroth products bring to industrial environments, ensuring long-term operational excellence.
• Optimized for Key Applications: Specifically engineered for proportional valve and servo motor applications, this card guarantees peak performance in critical control scenarios.

Order Now

The Bosch Rexroth 0 811 405 101 PV45-RGC1 Servo Amplifier Card, a cornerstone of precision motion control, is readily available to enhance your industrial automation systems. With worldwide shipping options, securing this high-performance component for your operations is straightforward and efficient. Elevate your system
