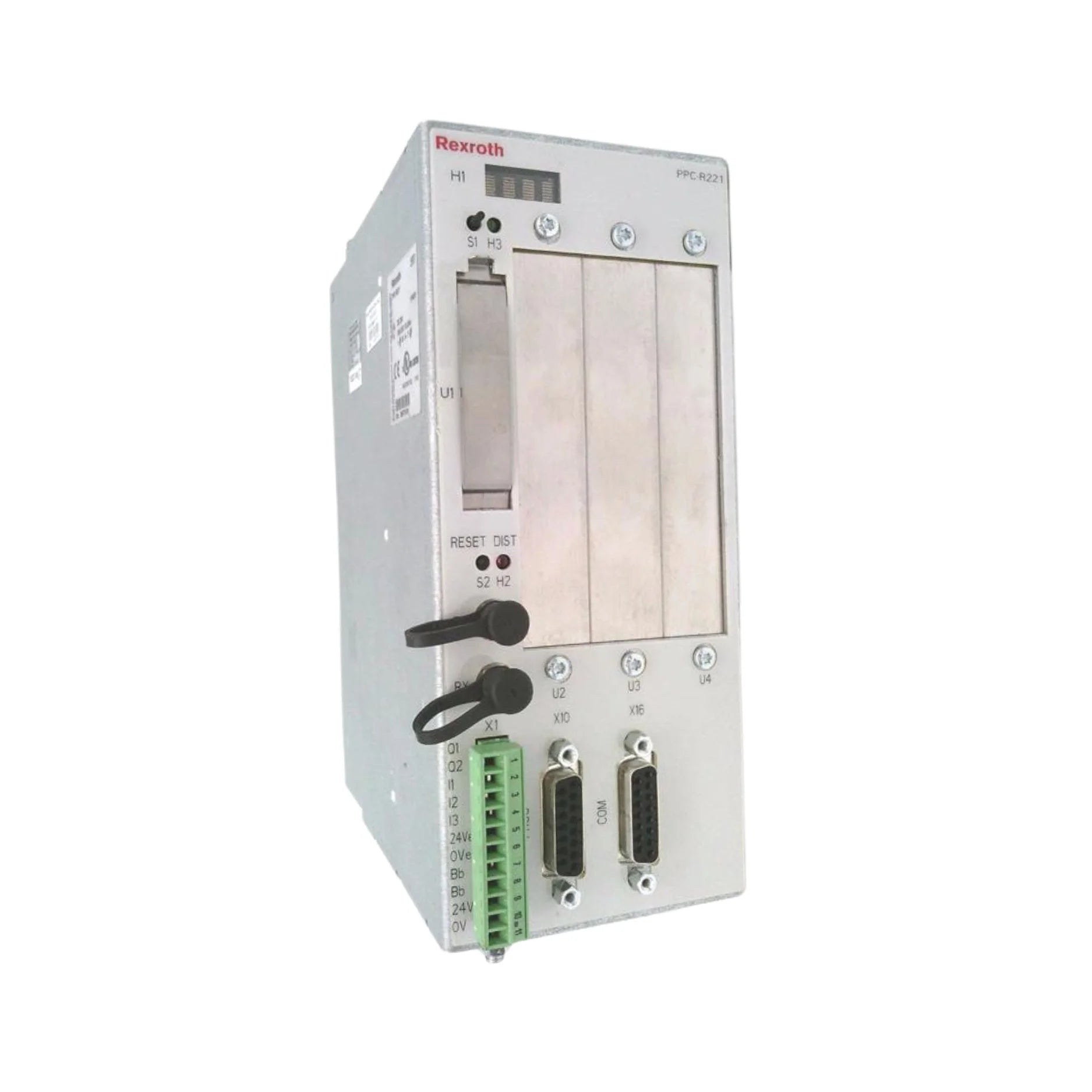

Bosch Rexroth PPC-R22.1N-T-NN-NN-NN-FW

Overview

The Bosch Rexroth Indramat PPC-R22.1N-T-NN-NN-NN-FW is a cutting-edge control unit from the renowned PPC Controllers Series, meticulously engineered to elevate industrial automation performance. Designed for unwavering reliability in harsh operational settings, this unit boasts a robust RECO housing with a double-wide form factor. Its exceptional durability ensures sustained, stable performance, making it an indispensable component for demanding industrial applications. Weighing in at a mere 1.3 kg, the PPC-R22.1N-T-NN-NN-NN-FW seamlessly integrates into control cabinets, negating any concerns about excessive mechanical strain while providing superior functionality.

Equipped with a substantial 4 Mb of integrated flash memory, this control unit offers ample storage for critical application data and system firmware (firmware ordered separately). A standout feature is its integrated SERCOS Interface communication module, which guarantees real-time, deterministic networking capabilities. This advanced communication ensures precise synchronization with servo drives and I/O modules, making the PPC-R22.1N-T-NN-NN-NN-FW ideally suited for sophisticated multi-axis motion control systems where accuracy and speed are paramount.

Further enhancing its versatility, the unit's design version 1 supports passive axis expansion modules. This crucial feature provides unparalleled scalability, allowing for effortless adaptation and expansion to meet the evolving demands of complex automation systems. Operating efficiently within a wide 19.2–30 VDC range and accommodating power supply cables from 0.75 mm² to 1.5 mm², this controller delivers exceptional flexibility and consistent, reliable performance across a diverse range of demanding industrial environments.

Key Features

• PPC Controllers Series Excellence: Part of a lineage known for precision and high performance in automation.
• Robust RECO Unit Housing: Double-wide form factor ensures exceptional durability and protection in industrial settings.
• 4 Mb Flash Memory: Provides reliable storage for critical application data and system firmware (firmware ordered separately).
• Integrated SERCOS Interface: Enables real-time, deterministic communication for precise multi-axis motion control.
• Design Version 1: Ensures enhanced compatibility and seamless integration into existing systems.
• Passive Axis Expansion Support: Offers crucial scalability for complex and evolving automation requirements.
• Lightweight Design (1.3 kg): Facilitates easy and convenient integration into control cabinets without adding bulk.
• Wide Operating Voltage: Compatible with 19.2–30 VDC (including ripple factor) for flexible power integration.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Product Type: PPC Control Unit
• Series: PPC Controllers
• Model: PPC-R22.1N-T-NN-NN-NN-FW
• Housing Design: RECO unit
• Housing Type: Double wide
• Design Version: 1
• Flash Memory: 4 Mb
• Memory Expansion: Not equipped
• Firmware: Ordered separately
• Communication Module: SERCOS Interface
• Passive Axis Expansion: Supported
• Power Supply Range: 19.2 … 30 VDC (ripple included)
• Power Cable Cross Section: 0.75 mm² to 1.5 mm²
• Maximum Installation Height: 1000 MSL
• Weight: 1.3 kg

Applications

The Bosch Rexroth PPC-R22.1N-T-NN-NN-NN-FW control unit is a versatile solution, ideally suited for a broad spectrum of demanding industrial applications requiring high precision and reliable control:

• Packaging Automation Systems: Ensuring rapid and accurate material handling and processing.
• Printing and Paper Handling Machinery: Providing the precision needed for intricate printing tasks and material manipulation.
• Multi-axis CNC Machinery: Facilitating complex and synchronized movements for sophisticated machining operations.
• Assembly-Line Automation: Streamlining manufacturing processes with reliable and repeatable control.
• Robotics and Motion Control Environments: Powering advanced robotic systems with real-time communication and precise movement capabilities.

Why Choose This Model?

The Bosch Rexroth PPC-R22.1N-T-NN-NN-NN-FW stands out as an exceptional choice for industrial automation due to its unparalleled combination of durability, precision, and scalability. Its robust RECO housing ensures longevity and consistent performance even in the most challenging industrial conditions, minimizing downtime and maximizing operational efficiency. The integrated SERCOS real-time communication interface is a game-changer, guaranteeing exact synchronization across all axes, which is critical for high-precision applications.

Furthermore, the support for passive axis expansion modules means your system can grow and adapt with your operational needs, offering a future-proof solution. Its lightweight, modular design simplifies integration into existing and new control cabinets, significantly reducing installation time and complexity. When precision, reliability, and expandability are paramount, the PPC-R22.1N-T-NN-NN-NN-FW is the intelligent choice for driving your multi-axis automation systems to new heights of performance.

Order Now

Elevate your industrial automation capabilities today with the Bosch Rexroth Indramat PPC-R22.1N-T-NN-NN-NN-FW Control Unit. This high-performance unit is readily available for immediate order, complemented by efficient worldwide shipping. Experience unparalleled precision and reliability with comprehensive professional support designed to ensure your success. Partner with us and optimize your operational efficiency.
