Bosch Rexroth MKD071B-061-KP0-KN

Overview

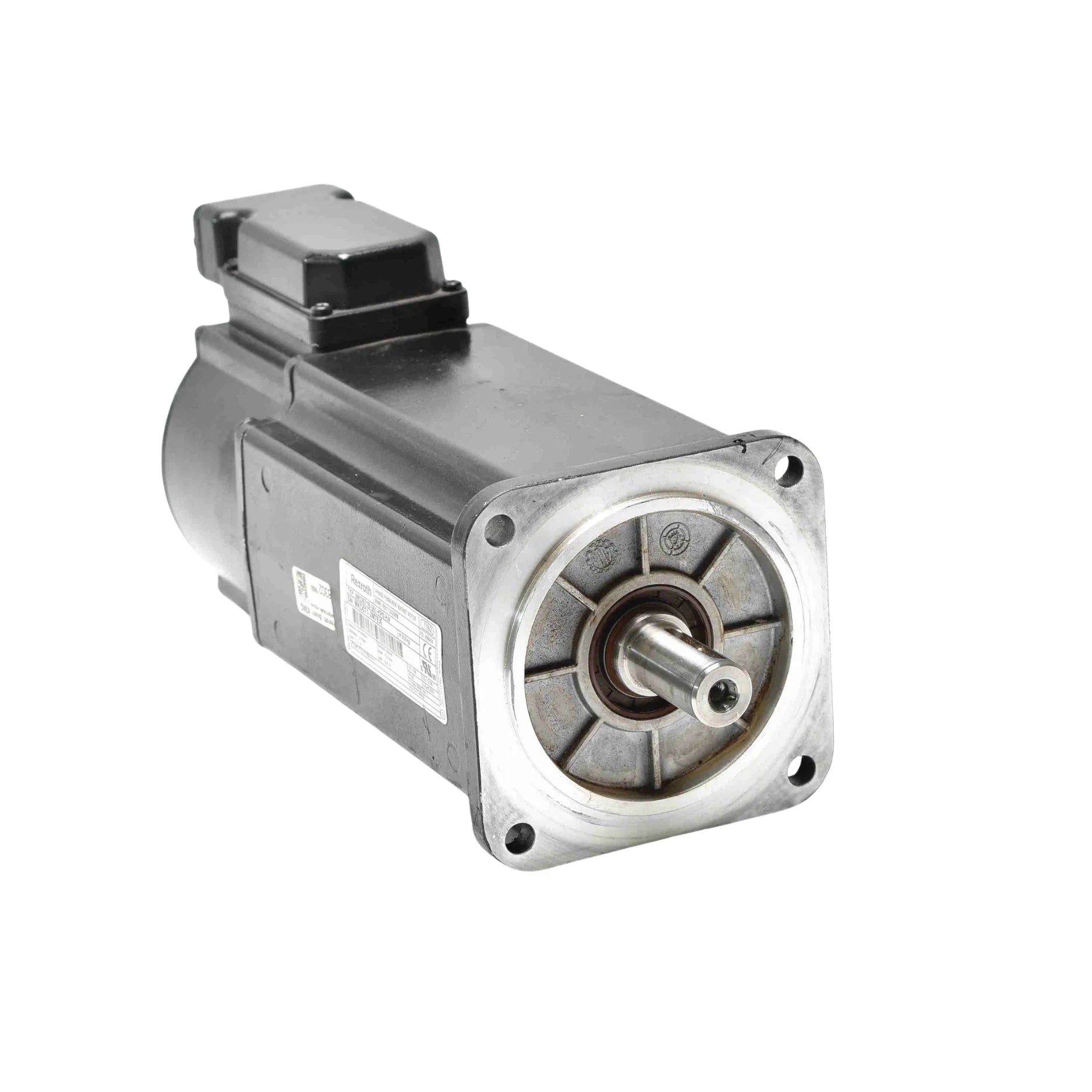

The Bosch Rexroth MKD071B-061-KP0-KN AC Servo Motor is engineered for unparalleled precision and robust performance in the most demanding industrial automation environments. As part of the esteemed MKD series, this synchronous servo motor integrates cutting-edge technology to deliver precise motion control, making it an ideal choice for advanced machinery. Its balanced design effortlessly combines high torque capabilities with impressive speed characteristics, ensuring optimal operational efficiency and reliability across a diverse range of applications. From intricate robotics to high-throughput packaging lines, the MKD071B-061-KP0-KN stands as a testament to Bosch Rexroth's commitment to innovation and durability.

Built with durability in mind, this 071 frame size, length B motor boasts an IP65 protection rating, safeguarding against dust and water ingress, thus extending its operational life in harsh industrial settings. The integrated resolver encoder, offering over 4096 revolutions, provides absolute and highly accurate position detection, crucial for critical control applications. With a robust shaft featuring a keyway and seal, this motor is prepared for direct integration into complex mechanical systems, ensuring a secure and reliable connection.

Key Features

• Powerful Torque Delivery: Continuous torque at standstill of 8.0 Nm (at 60 K) and up to 9.0 Nm (at 100 K) for high-demand tasks.
• Flexible Power Range: A versatile rated power range spanning from 0.8 kW to 3.4 kW, adaptable to various operational requirements.
• Exceptional Dynamic Response: A peak current of 50.4 A ensures rapid acceleration and deceleration for dynamic machine movements.
• High-Speed Operation: Characteristic motor speed of 4500 rpm, with a maximum speed reaching 6000 rpm for enhanced productivity.
• Precise Feedback System: Equipped with an integrated resolver encoder providing absolute position detection (>4096 revs) for superior accuracy.
• Robust Construction: IP65 protection class guarantees resistance against dust and water, ensuring reliability in challenging industrial environments.
• Optimized Shaft Design: Features a keyed shaft with a shaft seal for secure mechanical integration and enhanced protection.
• Compact and Lightweight: Weighing only 8.8 kg, this motor offers a powerful solution without adding excessive bulk.

Technical Specifications

• Series: MKD
• Motor Size: 071
• Motor Length: B
• Winding Code: 061
• Shaft Design: With keyway
• Shaft Seal: Yes
• Holding Brake: Without holding brake
• Encoder Type: Resolver feedback, absolute (>4096 revs)
• Connection Type: Connection box
• Continuous Current at Standstill (100K): 13.2 A
• Winding Resistance: 1.45 Ω
• Inductance: 7.2 mH
• Theoretical Max Torque: 32 Nm
• Operating Temperature Range: 0 °C to +40 °C
• Storage Temperature Range: -20 °C to +80 °C
• Torque Constant: 0.77 Nm/A
• Rotor Inertia: 8.7 × 10⁻⁴ kg·m²

Applications

• CNC Machining Centers: Providing highly accurate and repeatable movements for precision manufacturing.
• Robotics and Automated Assembly Lines: Enabling sophisticated robotic arm movements and high-speed pick-and-place operations.
• High-Performance Packaging Machinery: Ensuring rapid and precise control for packaging, filling, and sealing processes.
• General Industrial Automation: Ideal for a broad spectrum of automation tasks requiring exact torque and speed control.
• Material Handling Systems: Facilitating smooth and efficient transfer of goods in various industrial settings.

Why Choose This Model?

The Bosch Rexroth MKD071B-061-KP0-KN stands out as a superior choice for a multitude of reasons. Its high dynamic response, marked by a 50.4 A peak current, allows for swift and precise adjustments in motion, crucial for applications demanding rapid changes in speed or direction. The reliability of absolute resolver feedback ensures that every movement is accurately tracked, minimizing errors and maximizing the consistency of your operations. Furthermore, the motor's rugged design, boasting an IP65 protection rating, means it can withstand challenging industrial environments, from dusty factory floors to areas exposed to splashing water, without compromising performance or longevity.

This model strikes an optimal balance between torque and speed, offering the versatility needed to excel in diverse industrial applications. Whether your system requires high torque for heavy loads or high speed for rapid processing, the MKD071B-061-KP0-KN delivers. Choosing this Bosch Rexroth AC servo motor means investing in a solution that provides not only immediate performance gains but also long-term reliability and efficiency, ultimately contributing to reduced downtime and increased productivity for your industrial processes.

Order Now

Elevate your industrial automation capabilities with the Bosch Rexroth MKD071B-061-KP0-KN AC Servo Motor. This high-performance component is available for immediate shipping to integrate seamlessly into your existing or new systems. Don't miss the opportunity to enhance the precision, speed, and reliability of your machinery. For further exploration of our extensive range, please return to the Indramat MHD Synchronous Servo Motors collection for more models and technical options tailored to your specific automation needs. Alternatively, explore our main category of Bosch Rexroth Industrial Automation Products to discover a complete array of drives, motors, amplifiers, and control solutions designed for the future of industrial performance.
