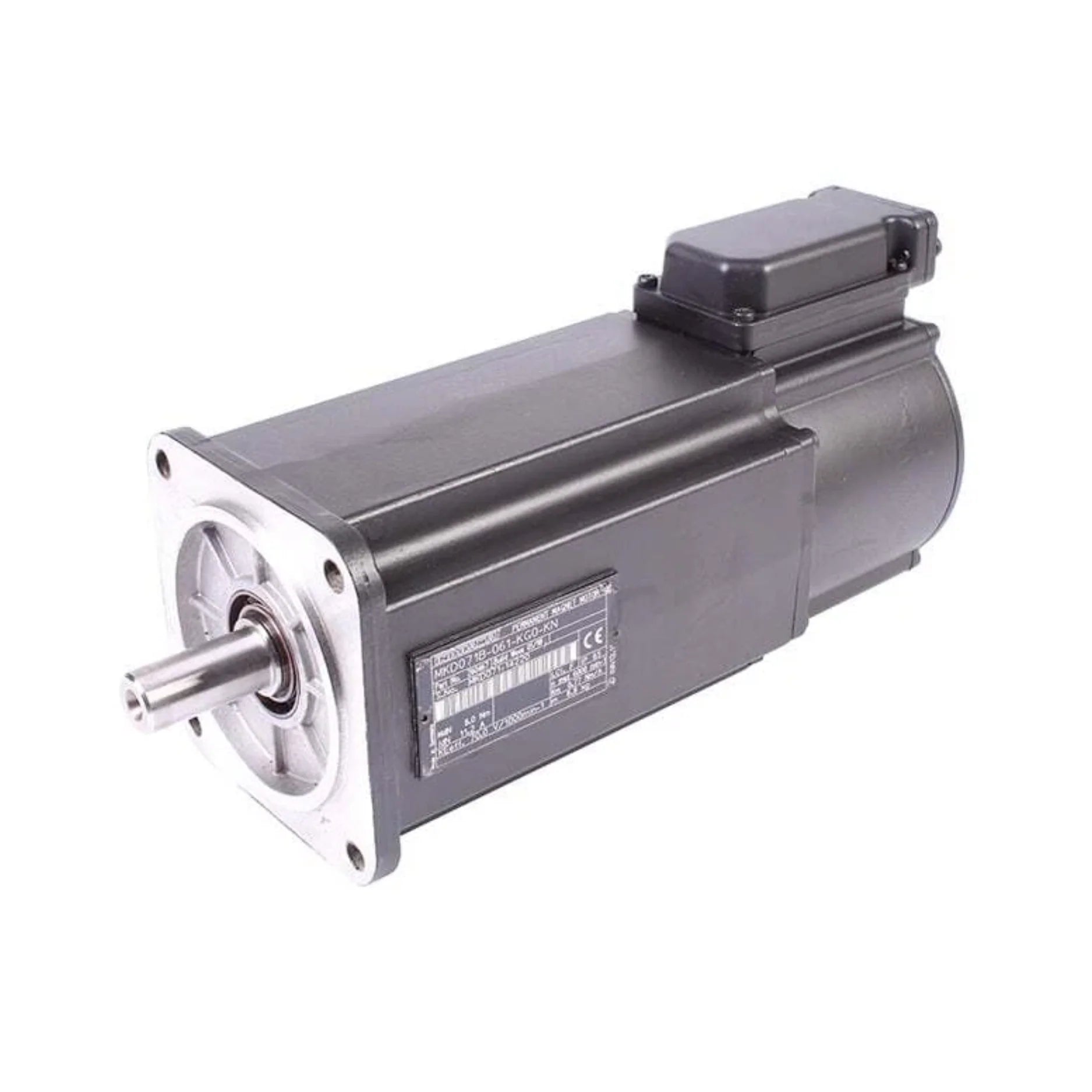

Bosch Rexroth MKD071B-061-KG0-KN

Overview

The Bosch Rexroth Indramat MKD071B-061-KG0-KN is a pinnacle of precision engineering within the esteemed MKD Synchronous Motors series. Meticulously crafted for demanding automation tasks, this high-performance servo motor delivers an impressive 8.0 Nm of continuous torque at standstill, coupled with an agile characteristic motor speed of 4500 rpm. This potent combination ensures unparalleled accuracy and efficiency across a broad spectrum of industrial applications.

Designed for reliability and robust control, the MKD071B-061-KG0-KN boasts a plain shaft and advanced resolver feedback with an integrated encoder, providing absolute position detection over more than 4096 revolutions. Its IP65 protection rating signifies superior resistance to dust and water ingress, making it an ideal choice for harsh industrial environments where durability and consistent performance are paramount.

Key Features

• High-Performance MKD Series: A proud member of the renowned MKD Synchronous Motors series, synonymous with quality and reliability.
• Exceptional Torque Output: Delivers 8.0 Nm continuous torque at standstill for powerful and precise motion.
• Optimized Speed: Achieves a characteristic motor speed of 4500 rpm for dynamic applications.
• Advanced Feedback System: Integrated resolver feedback with encoder provides highly accurate positional data.
• Absolute Position Detection: Offers absolute position detection over 4096+ revolutions, eliminating the need for homing routines after power loss.
• Robust Shaft Design: Features a plain shaft design with a shaft seal for enhanced durability and protection.
• Streamlined Operation: Designed without a holding brake for reduced complexity and maintenance.
• Optimized Inertia: Rotor moment of inertia of 8.7 × 10⁻⁴ kg·m² for agile response.
• Industrial-Grade Protection: IP65 protection class ensures reliable operation in challenging industrial settings.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Series: MKD Synchronous Motors
• Model: MKD071B-061-KG0-KN
• Shaft Design: Plain shaft
• Shaft Seal: Yes
• Holding Brake: Without holding brake
• Encoder Type: Resolver feedback w/ integrated encoder
• Position Detection: Absolute (>4096 revs)
• Continuous Torque at Standstill: 8.0 Nm
• Continuous Current at Standstill (100K): 13.2 A
• Characteristic Motor Speed: 4500 rpm
• Voltage Constant: 70 V/1000 min⁻¹
• Winding Inductivity: 7.2 mH
• Motor Length: B
• Motor Size: 071
• Centering Diameter: 95 mm
• Connection Direction: Side B
• Rotor Moment of Inertia: 8.7 × 10⁻⁴ kg·m²
• Protection Class: IP65
• Product Type: Servo Motor

Applications

The versatility and high performance of the Bosch Rexroth MKD071B-061-KG0-KN servo motor make it an indispensable component in a wide array of advanced industrial applications, including:

• Packaging Machinery: Enabling rapid and precise movements for efficient product handling and packaging.
• Robotics and Automation Systems: Providing the accuracy and responsiveness required for sophisticated robotic arms and automated assembly lines.
• Printing and Textile Machines: Ensuring exact control over material feed and print head positioning for superior output quality.
• Material Handling and Conveyor Systems: Driving efficient and synchronized movement in logistics and manufacturing environments.
• Precision Assembly Equipment: Offering the fine control necessary for delicate and high-tolerance assembly tasks.

Why Choose This Model?

The MKD071B-061-KG0-KN stands out as a leading choice for industrial professionals seeking reliability, precision, and efficiency. Its superior torque-to-speed ratio ensures exceptionally precise motion control, critical for complex automation processes. The robust resolver-based feedback system, coupled with absolute position detection, guarantees unwavering accuracy and reduces potential downtime.

Furthermore, the IP65 protection rating signifies its durability in even the most demanding industrial settings, repelling dust and water to maintain optimal performance. Designed for longevity and minimal maintenance, this servo motor represents a sound investment for operations prioritizing continuous productivity and reduced operational costs.

Order Now

Elevate your automation capabilities with the Bosch Rexroth Indramat MKD071B-061-KG0-KN Servo Motor. This high-performance component is readily available and poised for worldwide shipping, ensuring that your critical projects can proceed without delay.

For a broader selection of models and technical options tailored to diverse automation needs, we invite you to explore our comprehensive Indramat MHD Synchronous Servo Motors collection. Additionally, discover an extensive range of drives, motors, amplifiers, and control solutions within our main Bosch Rexroth Industrial Automation Products category.
