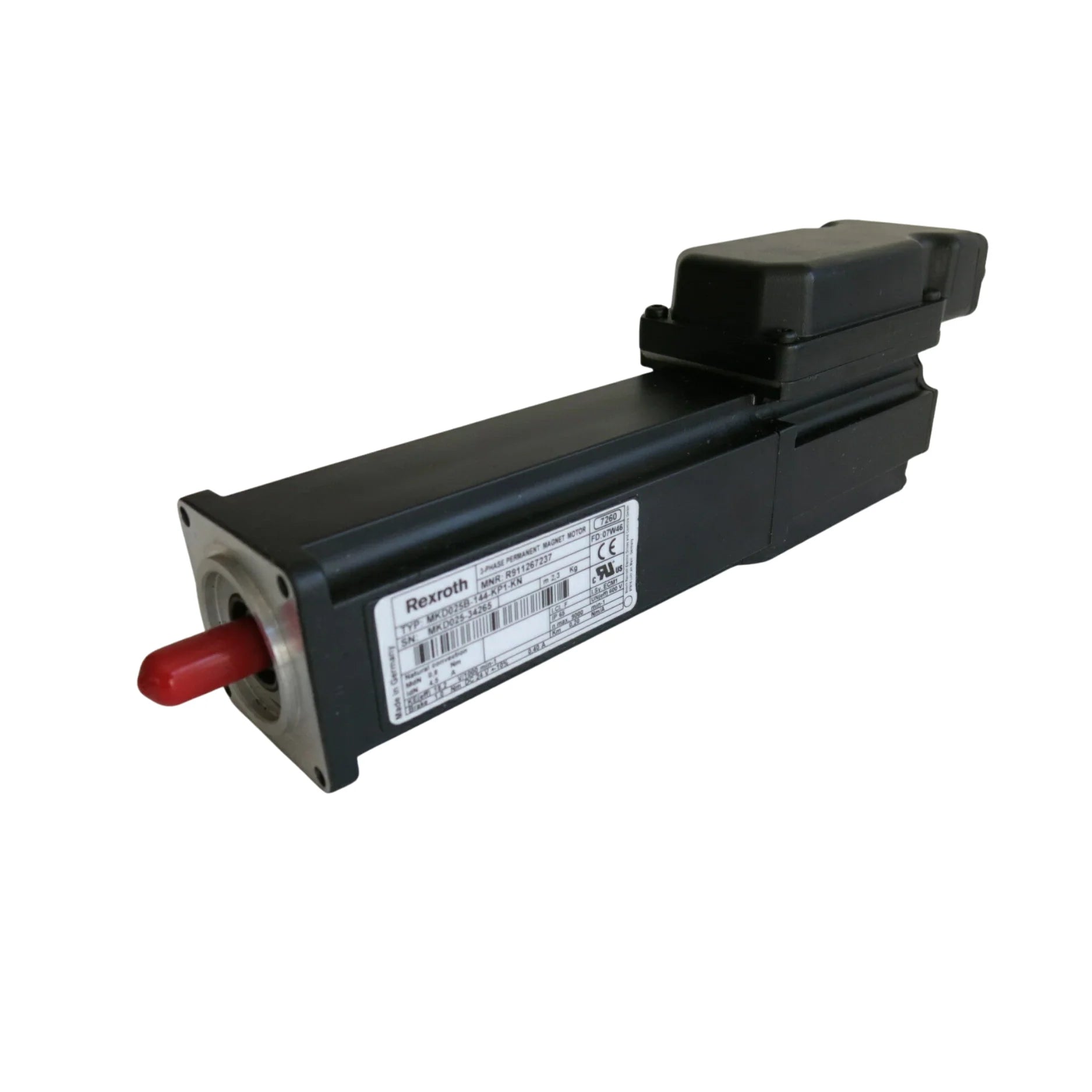

Bosch Rexroth MKD025B-144-KP1-KN

Overview

The Bosch Rexroth Indramat MKD025B-144-KP1-KN is a robust and highly precise synchronous servo motor, meticulously engineered to meet the stringent demands of advanced automation systems. This compact yet powerful motor is a prime example of Bosch Rexroth's commitment to innovation and reliability in industrial motion control. Featuring a durable shaft with a keyway design for secure torque transfer and an integrated holding brake with a substantial 1 Nm torque, the MKD025B-144-KP1-KN ensures unparalleled reliability and safety in critical precision motion control applications. Its thoughtful design prioritizes both performance and longevity, making it an indispensable component for sophisticated machinery.

With an impressive rated torque of 1.6 Nm and a continuous torque at standstill of 0.9 Nm, this servo motor is perfectly suited for a diverse range of applications, including high-speed robotics, intricate packaging machinery, and efficient light assembly systems. Its versatility makes it a valuable asset across various industrial sectors. Furthermore, the MKD025B-144-KP1-KN boasts an IP65 protection rating, signifying its exceptional resistance to dust ingress and low-pressure water jets. This robust protection significantly extends the motor's operational lifespan and ensures consistent performance even in challenging industrial environments where exposure to contaminants is common.

Key Features

• Rated Torque: 1.6 Nm for powerful and consistent operation.
• Continuous Torque at Standstill: 0.9 Nm, ensuring stable performance even when stationary.
• Shaft Design: Features a shaft with keyway and an integrated shaft seal for secure mechanical connection and enhanced protection.
• Holding Brake: Equipped with a reliable 1 Nm holding brake for increased safety and precision in positioning.
• Flange Size: Compact 54 mm flange size, optimizing space utilization.
• Motor Size: Efficient 025 motor size, balancing power and footprint.
• Protection Class: IP65-rated, offering superior protection against dust and water ingress.
• Cooling Method: Utilizes natural convection for efficient heat dissipation without external cooling systems.
• Connection Direction: Side B connection for flexible installation.
• Mounting: Flange mounted for secure and straightforward integration into existing systems.
• Weight: Lightweight at 4.2 kg, facilitating easier handling and installation.

Technical Specifications

• Series: MKD Synchronous Motors, renowned for high performance and reliability.
• Motor Length: B, indicating a specific motor dimension within the series.
• Winding Code: 144, representing a unique winding configuration for optimized performance.
• Encoder Type: Resolver feedback with integrated encoder for precise position detection.
• Position Detection: Absolute (>4096 revs), ensuring highly accurate and repeatable positioning.
• Rated Torque: 1.6 Nm.
• Continuous Torque at Standstill: 0.9 Nm.
• Holding Brake Torque: 1 Nm.
• Protection Class: IP65.
• Cooling Method: Natural convection.
• Weight: 4.2 kg.

Applications

• Robotics and Automation Assemblies: Provides precise motion control for collaborative and industrial robots.
• Packaging and Labeling Machines: Ensures high-speed and accurate operation in automated packaging lines.
• Semiconductor and Precision Tooling: Delivers the accuracy required for delicate and high-tolerance manufacturing processes.
• Light Conveyor and Positioning Systems: Powers efficient and reliable material handling and precise object placement.

Why Choose This Model?

The Bosch Rexroth Indramat MKD025B-144-KP1-KN stands out as a prime choice for discerning engineers and manufacturers due to its exceptional combination of features and the trusted Bosch Rexroth heritage. This servo motor offers a compact yet incredibly powerful solution, delivering robust performance without occupying excessive space. Its shaft with a keyway ensures a highly secure and slip-free torque transfer, critical for maintaining operational integrity in dynamic applications. The integrated holding brake provides an essential layer of safety and precision, crucial for applications requiring exact stopping and holding capabilities.

With its IP65-rated protection, the MKD025B-144-KP1-KN is specifically designed to excel in demanding industrial environments, offering superior resistance to dust and low-pressure water jets. This robust construction safeguards the motor against common industrial contaminants, leading to enhanced longevity and reduced maintenance needs. Ultimately, choosing this model means investing in reliable Rexroth engineering, synonymous with long service life and consistent, high-performance operation. It's an investment in a component that will uphold the efficiency and precision of your automation systems for years to come.

Order Now

Elevate your automation capabilities with the Bosch Rexroth Indramat MKD025B-144-KP1-KN Servo Motor. This high-performance component is readily available with fast worldwide shipping, ensuring that your critical projects stay on schedule. Don't compromise on precision, reliability, or quality. Invest in the proven engineering of Bosch Rexroth.

For more advanced models and tailored technical options that align with your specific automation needs, we invite you to explore our comprehensive Indramat MHD Synchronous Servo Motors collection. Furthermore, delve into our main category, Bosch Rexroth Industrial Automation Products, to discover a complete spectrum of cutting-edge drives, motors, amplifiers, and control solutions designed to optimize your industrial processes.
