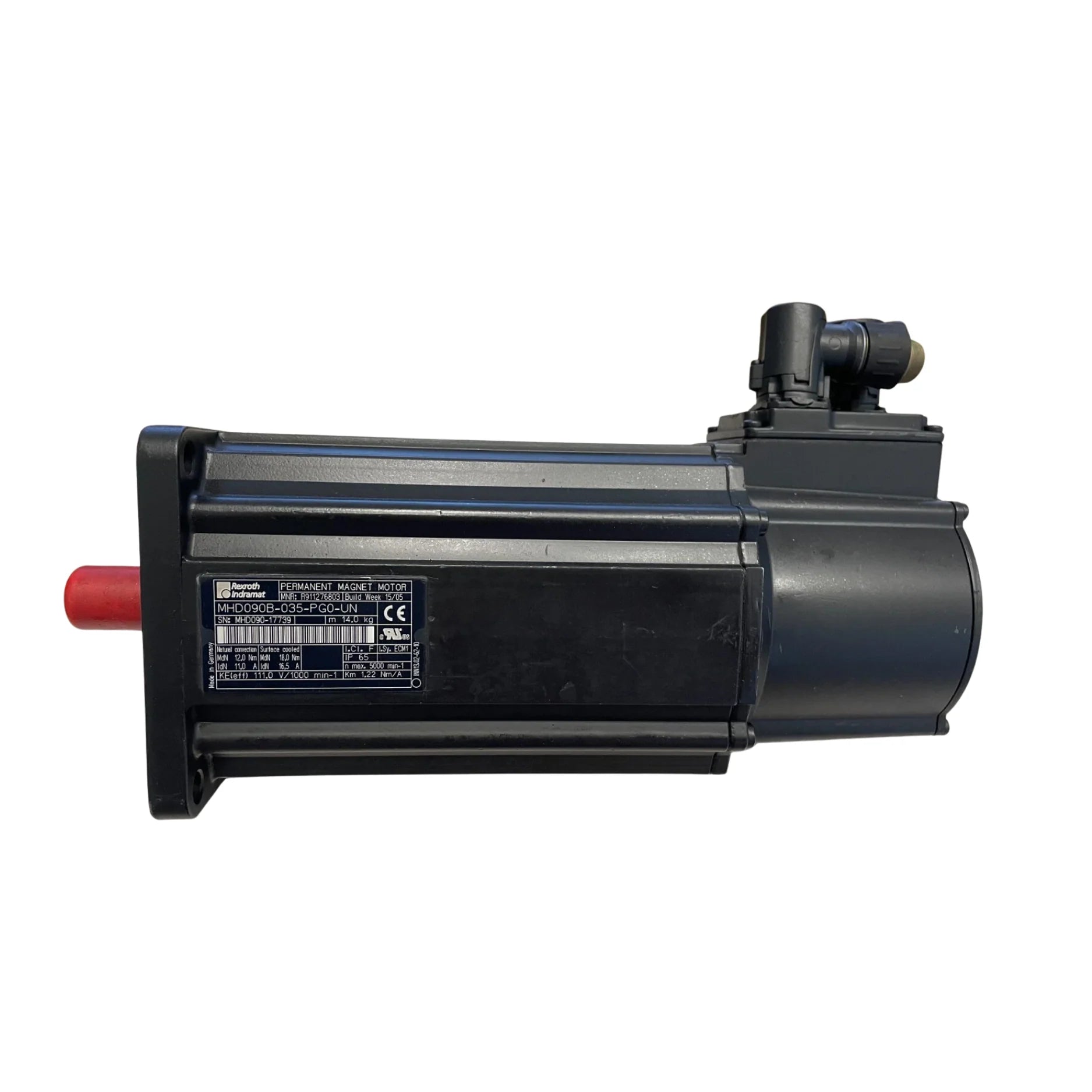

Bosch Rexroth MHD090B-035-PG0-UN

Overview

Elevate your industrial automation with the Bosch Rexroth Indramat MHD090B-035-PG0-UN, a paramount synchronous servo motor from the esteemed MHD series. Meticulously engineered for unparalleled precision and unwavering reliability, this motor is the definitive solution for the most demanding motion control applications. Its advanced liquid cooling system sets it apart, ensuring superior thermal management that allows for continuous, high-load operation without compromise. This innovative cooling capability safeguards performance and extends the motor's lifespan, making it an ideal choice for intensive industrial environments.

Boasting a robust 12 Nm of continuous torque at standstill, the MHD090B-035-PG0-UN delivers formidable power for precise control. Integrated with a state-of-the-art digital servo feedback encoder, it guarantees exceptionally accurate position control and consistently stable performance. Furthermore, its absolute position detection capability, spanning over 4096 revolutions, is critical for applications that demand repeatable precision and intricate movements, ensuring every operation is executed with exactitude. The motor’s practical design, featuring rotatable power connectors and a plain shaft with a dependable shaft seal, simplifies installation and enhances operational security. With a 140 mm flange and 110 mm centering diameter, integrating this servo motor into existing or new automation systems is seamless and efficient, minimizing downtime and maximizing productivity.

Key Features

• High-Performance MHD Synchronous Motor: A distinguished member of the Bosch Rexroth MHD series, known for exceptional dynamic response and power density.
• Impressive 12 Nm Continuous Torque: Delivers significant power at standstill, crucial for applications requiring high rigidity and precise force.
• Advanced Liquid Cooling System: Ensures optimal thermal regulation, enabling sustained operation under heavy loads and extending motor longevity.
• Integrated Digital Servo Feedback Encoder: Provides high-resolution feedback for superior accuracy in position and speed control.
• Absolute Position Detection (>4096 Revolutions): Offers unparalleled accuracy in long-travel applications, maintaining absolute position even after power cycles.
• Optimal Motor Dimensions: Size 090, Length B, designed for compact yet powerful integration.
• Standardized Flange and Centering: 140 mm flange and 110 mm centering diameter for versatile mounting options.
• Plain Shaft with Seal: Guarantees a secure and reliable connection, protecting against ingress.
• Flexible Power Connection: Rotatable within 270° for simplified installation and cable management in confined spaces.
• Absence of Holding Brake: Specifically designed for systems where an external braking mechanism is preferred or not required.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Product Type: Servo Motor
• Series: MHD
• Motor Size: 090
• Motor Length: B
• Winding Code: 035
• Continuous Torque at Standstill: 12.0 Nm
• Cooling Type: Liquid cooling
• Encoder Type: Digital servo feedback with integrated encoder
• Position Detection: Absolute, >4096 revolutions
• Flange Size: 140 mm
• Centering Diameter: 110 mm
• Shaft Design: Plain shaft with shaft seal
• Holding Brake: Without holding brake
• Power Connection Type: Power and feedback connectors
• Power Connector Orientation: Rotatable within 270°

Applications

• CNC Machining Centers: Provides the precision and power required for intricate cuts and high-speed operations.
• Robotics and Handling Systems: Essential for dynamic and accurate multi-axis movements in industrial robotics.
• Packaging and Printing Machinery: Ensures high throughput and synchronous control for critical timing applications.
• Automation Lines: Ideal for processes demanding high thermal efficiency, precise repeatable positioning, and continuous operation in demanding industrial settings.

Why Choose This Model?

The Bosch Rexroth Indramat MHD090B-035-PG0-UN stands as a testament to German engineering excellence, offering a compelling array of benefits for discerning industrial applications. Its robust construction is specifically designed to thrive in heavy-duty environments, promising enduring performance and minimal maintenance. The integration of a high-precision digital feedback system with absolute positioning capabilities ensures that your machinery operates with unparalleled accuracy, crucial for maintaining tight tolerances and improving product quality.

Furthermore, the cutting-edge liquid cooling system is a game-changer, facilitating continuous high-load operation without performance degradation. This active thermal management allows your systems to run longer and harder, directly impacting productivity and operational efficiency. Installation flexibility is another significant advantage, with rotatable connectors that simplify wiring and integration into complex setups. Choosing the MHD090B-035-PG0-UN means investing in the legendary reliability and innovation that Bosch Rexroth is renowned for, securing a vital component that will drive your automation forward with confidence.

Order Now

Secure the future of your industrial automation with the Bosch Rexroth Indramat MHD090B-035-PG0-UN Servo Motor. This high-performance component is available for fast worldwide shipping, ensuring your critical operations can commence without delay. Our team of experts is ready to provide comprehensive support, guiding you through selection and integration to maximize your system's potential. Explore our extensive

for additional models and technical options tailored to your specific automation needs.

Delve deeper into our

main category to uncover a complete suite of integrated solutions, including drives, motors, amplifiers, and control systems, all designed to optimize your industrial processes and achieve peak operational efficiency.
