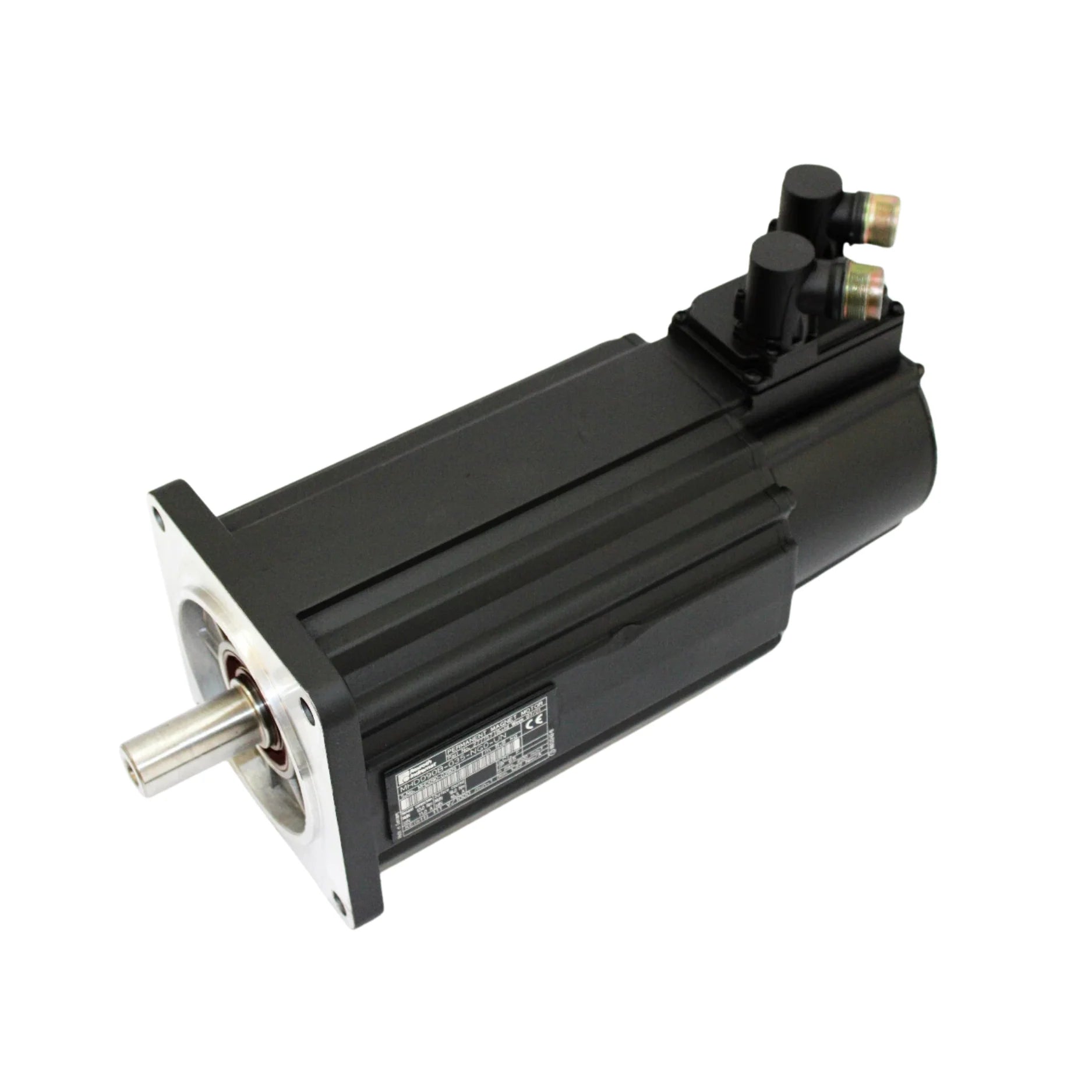

Bosch Rexroth MHD090B-035-NG0-UN

Overview

The Bosch Rexroth Indramat MHD090B-035-NG0-UN represents a pinnacle in synchronous servo motor technology, meticulously engineered for high-precision automation and dynamic control across various industrial sectors. As a distinguished member of the renowned MHD series, this motor is specifically designed to meet the rigorous demands of applications requiring exceptional torque delivery and consistent performance.

Boasting a robust motor size 090 and an impressive 12 Nm of continuous torque at standstill, the MHD090B-035-NG0-UN ensures reliable and powerful operation, even in the most torque-intensive scenarios. A key differentiator is its advanced liquid-cooled housing, which facilitates superior thermal management. This innovative cooling system allows the motor to sustain continuous high-load operations without compromising efficiency or longevity, making it an ideal choice for challenging industrial environments.

Further enhancing its durability and ease of integration, this model features a plain shaft with an integrated shaft seal, guaranteeing secure coupling and an extended service life by protecting against contaminants. The thoughtful inclusion of a rotatable power connector, offering up to 270° of adjustment, provides unparalleled flexibility for installation, particularly beneficial in compact control cabinets where space optimization is critical.

Key Features

• High-Performance MHD Series: Part of the esteemed Bosch Rexroth MHD Synchronous Motor Series, globally recognized for reliability and precision.
• Powerful Torque Output: Delivers a substantial 12.0 Nm of continuous torque at standstill, suitable for demanding applications.
• Efficient Liquid Cooling: Features a liquid-cooled system for optimal thermal management, enabling continuous operation under high loads.
• Advanced Digital Feedback: Equipped with a Digital Servo Feedback (HSF) encoder for accurate position detection and control.
• Relative Position Detection: Utilizes relative type position detection for precise operational feedback.
• Optimized Motor Design: Motor size 090 with length B, ensuring a compact yet powerful footprint.
• Standardized Flange: Features a 140 mm flange size and 110 mm centering diameter for broad compatibility.
• Durable Shaft Design: Plain shaft with integrated shaft seal ensures secure coupling and enhanced longevity.
• Flexible Connectivity: Power connector orientation is turnable within 270°, allowing for versatile installation in tight spaces.
• Streamlined Cabling: Benefits from unified power and feedback connectors, simplifying wiring and reducing installation time.
• Brake-Ready Design: Delivered without a holding brake, with an optional brake module available for specific application requirements.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Product Type: Servo Motor
• Series: MHD
• Motor Size: 090
• Motor Length: B
• Winding Code: 035
• Continuous Torque at Standstill: 12.0 Nm
• Cooling: Liquid cooling
• Encoder Type: Digital servo feedback (HSF)
• Position Detection: Relative
• Flange Size: 140 mm
• Centering Diameter: 110 mm
• Shaft Design: Plain shaft with shaft seal
• Holding Brake: Without holding brake (optional)
• Power Connection Type: Unified power and feedback connectors
• Power Connection Direction: Rotatable within 270°

Applications

The Bosch Rexroth MHD090B-035-NG0-UN servo motor is engineered for versatility and high performance, making it an indispensable component in a wide array of industrial applications:

• CNC Machining and Milling Equipment: Provides the precision and dynamic response required for intricate cutting and shaping processes.
• Packaging and Converting Machines: Ensures rapid and accurate movements for efficient material handling and processing.
• Robotics and Automated Gantries: Delivers the power and control necessary for complex robotic movements and large-scale automation.
• Assembly and Handling Systems: Guarantees reliable and precise operation for automated assembly lines and material transfer.
• Textile Machinery: Offers consistent torque and speed for fabric processing and manufacturing.
• Printing Presses: Ensures smooth and accurate paper feeding and print cylinder control.

Why Choose This Model?

• Unmatched Dynamic Response: Benefits from an optimized winding design, delivering exceptional acceleration and deceleration for critical operations.
• Sustained Performance: Liquid cooling technology allows for continuous operation in even the most demanding, high-temperature industrial environments.
• Seamless Integration: The turnable power connectors provide unparalleled flexibility, simplifying installation and reducing downtime in complex setups.
• Space-Saving Design: Its compact build, characterized by motor length B, ensures minimal installation depth, perfect for machinery with limited space.
• Built for Endurance: Featuring durable sealing, the motor is designed for a long service life, resisting ingress from dust, liquids, and other industrial contaminants.
• Bosch Rexroth Reliability: Backed by the reputation of Bosch Rexroth Indramat, ensuring quality, performance, and long-term support.
