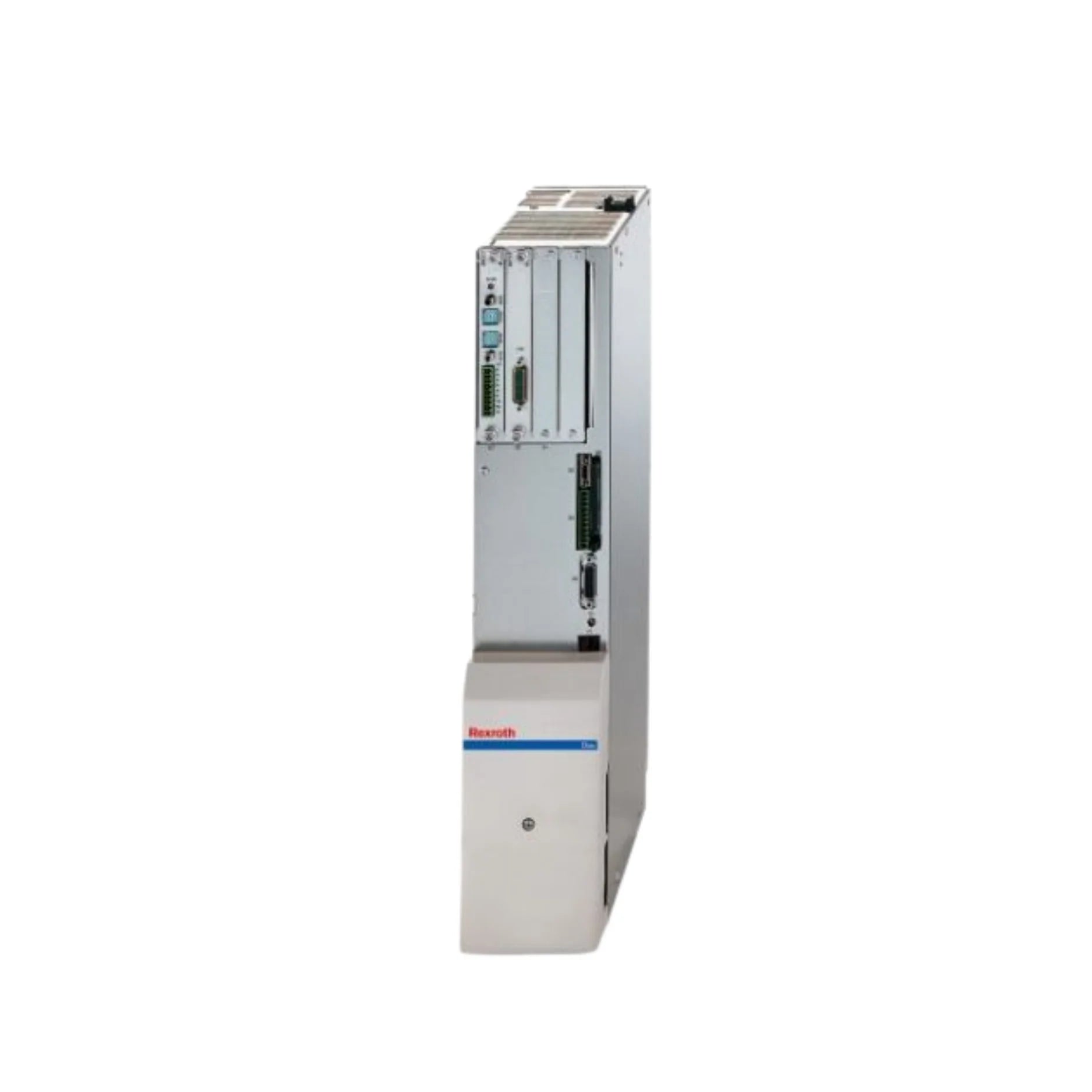

Bosch Rexroth HDS03.2-W100N-HS12-01-FW

Overview

Experience unparalleled control and reliability with the Bosch Rexroth HDS03.2-W100N-HS12-01-FW, a high-performance drive controller engineered for demanding industrial environments. As a core component of the acclaimed DIAX04 family within the HDS Drive Controllers series, this unit sets the standard for precision and operational stability. Designed for continuous heavy-duty applications, it boasts a formidable 100A rated current, ensuring consistent power delivery for your most critical machinery. Its robust design, coupled with efficient internal cooling and superior insulation, guarantees prolonged operational life and unfailing performance.

This Bosch Rexroth drive controller is more than just a power converter; it's a foundation for advanced automation. Whether your operations demand agile motor control or steadfast power regulation, the HDS03.2-W100N-HS12-01-FW delivers. With its optimized power management and exceptional thermal efficiency, including a power loss handling of 280W and a minimal 25W consumption for signal processing, it represents a smart investment in operational efficiency and longevity. Its compact yet durable construction with IP10 protection makes it a versatile solution, capable of thriving in challenging industrial conditions while maintaining peak performance.

Key Features

• High Rated Current: Delivers a robust 100 A rated current for powerful and consistent operation.
• Flexible Continuous Current: Offers 50 A at 4 kHz or 35 A at 8 kHz for adaptable performance across various loads.
• DIAX04 Family Integration: Part of the renowned DIAX04 controller family, ensuring seamless compatibility and proven reliability.
• SERCOS Communication: Features a high-speed SERCOS command communication interface for real-time control and data exchange.
• Integrated Air Cooling: Equipped with a built-in internal air blower for efficient thermal management and sustained performance.
• Robust Industrial Design: Conforms to Insulation Class C standards and provides IP10 protection, built for durability in harsh environments.
• Optimized Power Management: Boasts a power loss of 280W and a signal processing consumption of just 25W, ensuring energy efficiency.
• Wide Operating Temperature Range: Operates reliably across a broad range from -30 °C to +85 °C, suitable for diverse climates.
• Compact and Lightweight: Weighing only 11 kg, its compact form factor facilitates easy integration and handling.

Technical Specifications

• Series: HDS Drive Controllers
• Line: 03
• Version: 2
• Controller Family: DIAX04
• Product Type: HDS Drive Controller
• Rated Current: 100 A
• Continuous Current at 4 kHz: 50 A
• Continuous Current at 8 kHz: 35 A
• Cooling Method: Built-in internal air blower
• Command Communication Interface: SERCOS
• Insulation Class: C
• Power Loss: 280 W
• Power Consumption (Signal Processing): 25 W
• Protection Class: IP10
• Storage & Transport Temperature: -30 to +85 °C
• Weight: 11 kg
• Manufacturer: Bosch Rexroth Indramat

Applications

The Bosch Rexroth HDS03.2-W100N-HS12-01-FW drive controller is a versatile and indispensable component for a wide array of industrial applications where precision, speed, and reliability are paramount. Its advanced features and robust construction make it ideal for:

• CNC Machine Tools: Ensuring high-accuracy and repeatable movements in demanding machining operations.
• Robotics and Handling Systems: Providing precise control for complex robotic movements and automated material handling.
• Packaging and Automation Lines: Facilitating high-speed and synchronized operations in intricate packaging and production processes.
• Multi-axis Servo Drive Installations: Delivering synchronized and dynamic control for sophisticated multi-axis motion systems.
• General Industrial Automation: Enhancing the performance and reliability of various automated manufacturing and processing systems.

Why Choose This Model?

The Bosch Rexroth HDS03.2-W100N-HS12-01-FW stands out as a superior choice for industrial drive control due to its exceptional blend of power, precision, and durability. Its high 100A rated current and flexible continuous current options provide the muscle needed for even the most demanding applications, while the SERCOS communication interface ensures lightning-fast, real-time control. The integration within the trusted DIAX04 family guarantees a proven track record of performance and seamless integration into existing Bosch Rexroth systems.

Furthermore, its robust construction, including Insulation Class C and IP10 protection, along with a wide operating temperature range, ensures unfailing operation in challenging environments. The efficient built-in air cooling system and optimized power management contribute to its longevity and cost-effectiveness. Choosing the HDS03.2-W100N-HS12-01-FW means investing in a reliable, high-performance solution that minimizes downtime, maximizes productivity, and provides exceptional value over its operational lifespan.

Order Now

Elevate your industrial automation capabilities with the Bosch Rexroth Indramat HDS03.2-W100N-HS12-01-FW drive controller. This essential component for high-performance applications is available for fast worldwide shipping, ensuring you receive this critical technology without delay. Secure your competitive edge today!
