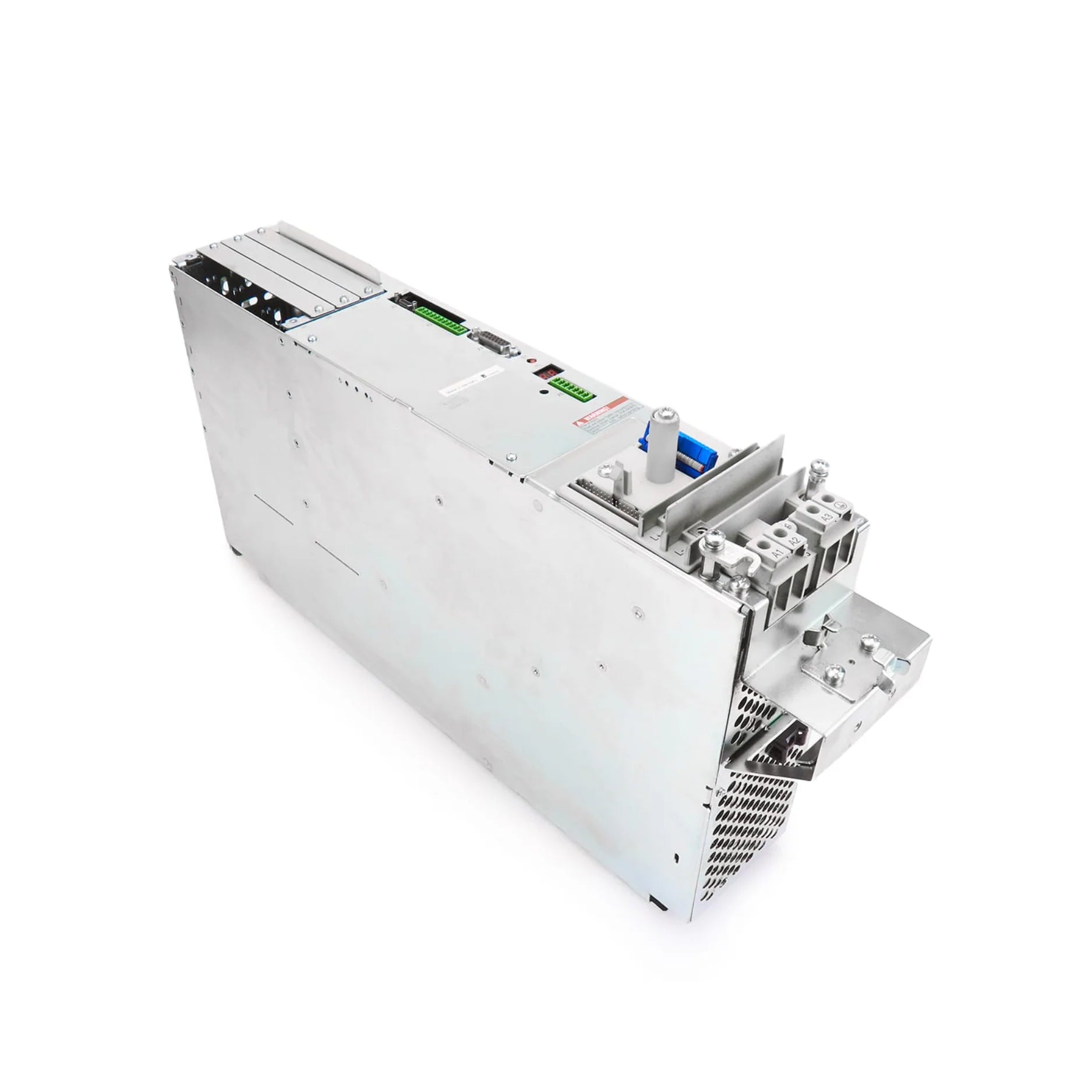

Bosch Rexroth HDS03.2-W075N-HS12-01-FW

Overview

Elevate your industrial automation capabilities with the Bosch Rexroth HDS03.2-W075N-HS12-01-FW, a robust drive controller from the esteemed DIAX04 family. Engineered for peak performance in demanding environments, this high-capacity unit boasts a 75 A rated current and efficiently operates within a 530–670 V AC input range at 50–60 Hz. Its sophisticated design ensures unwavering stability and reliability for a diverse array of applications requiring precise motion control.

Seamless integration into contemporary automation networks is facilitated by its advanced SERCOS communication interface, guaranteeing rapid and accurate data exchange. Durability and consistent operation are further enhanced by a built-in internal air blower cooling system, actively managing thermal performance. With an IP 10 protection category, this controller is optimally suited for secure installation within industrial control cabinets, safeguarding against potential environmental factors.

Key Features

• Controller Family: DIAX04 – A testament to proven Bosch Rexroth engineering excellence.
• Series: HDS – High-performance digital servo drive systems.
• Line & Version: 03, Version 2 – Indicating technological advancements and refinements.
• Rated Current: 75 A – Provides ample power for intensive industrial operations.
• Input Voltage Range: 530–670 V AC – Accommodates a broad range of industrial power supplies.
• Input Frequency: 50–60 Hz – Standard compatibility for global industrial use.
• Command Communication Interface: SERCOS – For real-time, high-speed communication and precise control.
• Cooling Method: Built-in internal air blower – Ensures optimal operating temperatures and longevity.
• Protection Category: IP 10 – Basic protection against solid objects, suitable for cabinet installation.
• Firmware: Supplied separately – Allows for tailored software integration.
• Weight: 11 kg – A sturdy, yet manageable component for industrial setups.

Technical Specifications

• Model: HDS03.2-W075N-HS12-01-FW
• Rated Current: 75 A
• Rated Input Voltage: 530–670 V
• Input Frequency: 50–60 Hz
• Maximum Input Current: 37 A
• Maximum Output Current: 40 A
• Maximum Output Voltage: Up to 500 V
• Rated Control Voltage Input: 26 V
• Cooling Method: Built-in internal air blower
• Protection Category: IP 10
• Product Type: HDS Drive Controller
• Controller Family: DIAX04
• Weight: 11 kg

Applications

The Bosch Rexroth HDS03.2-W075N-HS12-01-FW is specifically engineered for critical industrial applications demanding high precision, reliability, and robust performance. Its capabilities make it an ideal choice for:

• CNC Machinery: Providing accurate and repeatable motion for complex manufacturing processes.
• Robotics and Motion Control: Facilitating fluid and precise movements in advanced robotic systems.
• Packaging Equipment: Ensuring rapid and efficient operation in high-speed packaging lines.
• High-Performance Industrial Automation Systems: Serving as the control backbone for integrated and demanding automated environments across various industries.

Why Choose This Model?

When selecting a drive controller, the Bosch Rexroth HDS03.2-W075N-HS12-01-FW stands out as a superior choice, offering a compelling blend of power, precision, and reliability:

• Exceptional Power Handling: With a high-capacity 75 A rated current, this controller is adept at managing the most rigorous and power-intensive industrial tasks, ensuring consistent operation even under heavy loads.
• Seamless Communication with SERCOS: The integrated SERCOS interface guarantees real-time, high-speed communication, which is crucial for synchronous processes and achieving optimal control accuracy in sophisticated automation setups.
• Reliable Thermal Performance: The built-in internal air blower cooling system is a key differentiator, actively maintaining ideal operating temperatures. This proactive thermal management extends the lifespan of the unit and ensures sustained, reliable performance without overheating compromises.
• Proven Bosch Rexroth Engineering: As part of the renowned DIAX04 family, this model benefits from Bosch Rexroth's legacy of designing robust, compact, and high-quality industrial components. You are investing in a product synonymous with reliability and advanced engineering.
• Optimized for Demanding Environments: From its sturdy construction to its efficient power regulation and advanced communication protocols, every aspect of this drive controller is designed to excel in challenging industrial settings.

Order Now

Seize the opportunity to enhance your industrial operations with the high-performance Bosch Rexroth HDS03.2-W075N-HS12-01-FW DIAX04 Drive Controller. This essential component is ready to ship worldwide, offering fast and efficient delivery to get your systems running at peak efficiency without delay. Contact us today to place your order and experience the reliability and precision that only Bosch Rexroth can deliver.
