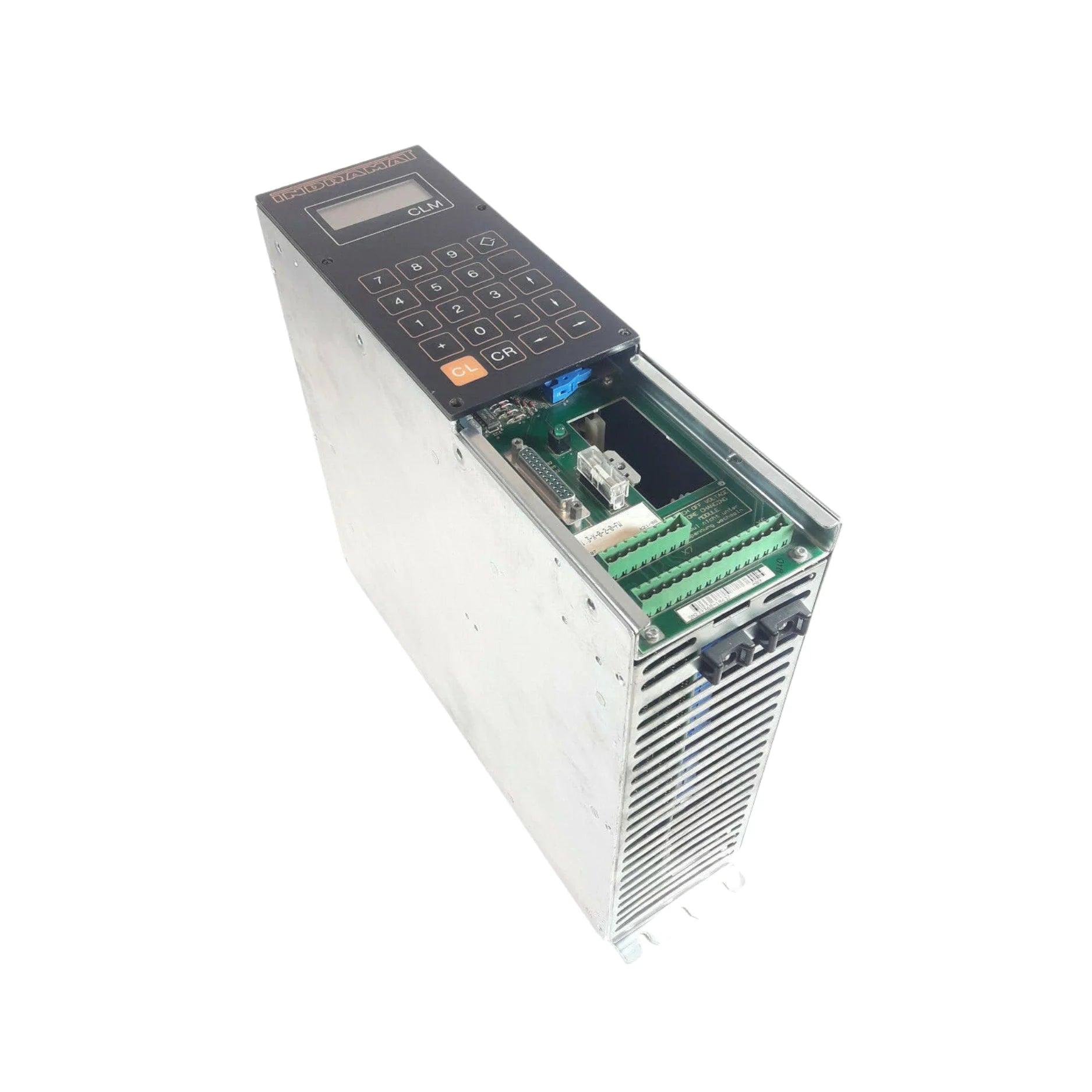

Bosch Rexroth CLM01.3-X-0-2-0-FW

Overview

The Bosch Rexroth Indramat CLM01.3-X-0-2-0-FW is an advanced 3-axis positioning control module meticulously engineered for the most demanding multi-axis automation tasks. This high-performance unit provides exceptional precision and reliability, making it an indispensable component for systems requiring accurate motion control. Seamlessly integrating with existing servo systems, the CLM01.3-X-0-2-0-FW supports both incremental and absolute encoder feedback for each axis, ensuring optimal performance and flexibility in diverse industrial environments. Its integrated four-line LCD display offers real-time operational status, comprehensive diagnostics, and immediate error messages, significantly accelerating fault identification and minimizing costly downtime.

Designed for efficiency and ease of integration, this compact control module measures just 390 x 105 x 325 mm and weighs a mere 6 kg. It is specifically optimized for secure and space-saving rack-mount installation within standard control cabinets, streamlining system setup and maintenance. Operating on a robust 24 VDC control voltage, the CLM01.3-X-0-2-0-FW features extensive expandability with 64 inputs and 32 outputs. This generous I/O capability provides unparalleled flexibility for connecting a wide array of sensors, actuators, and other peripheral devices, adapting to complex automation requirements. With an impressive feed length resolution of 0.0254 mm, this module guarantees extraordinary accuracy, crucial for high-precision applications across various industries.

Key Features

• Precision 3-Axis Motion Control: Delivers accurate and repeatable positioning for complex automation sequences.
• Robust 24 VDC Control Voltage: Ensures stable and reliable operation in industrial settings.
• Intuitive Four-Line LCD Display: Provides instant status updates, diagnostic information, and error reporting for rapid troubleshooting.
• Expansive I/O Capabilities: Features 64 inputs and 32 outputs for flexible integration with a wide range of devices.
• Versatile Encoder Support: Compatible with both incremental and absolute encoders per axis for enhanced positioning flexibility.
• Exceptional Feed Length Resolution: Achieves a remarkable 0.0254 mm resolution for ultra-precise motion control.
• Comprehensive Built-in Diagnostics: Monitors power, encoder feedback, and communication to ensure continuous operational integrity.
• Industrial-Grade Protection: Rated IP10 for reliable performance in challenging environments.
• Compact and Lightweight Design: Measuring 390 x 105 x 325 mm and weighing 6 kg, ideal for rack-mount installation.

Technical Specifications

• Product Type: Axis Positioning Control Module
• Model: CLM01.3-X-0-2-0-FW
• Control Voltage: 24 VDC
• Number of Axes: 3
• I/O Expansion: 64 inputs / 32 outputs
• Display: Four-line LCD
• Position Detection: Supports incremental or absolute encoders
• Resolution: 0.0254 mm feed length
• Protection Category: IP10
• Dimensions (H x W x D): 390 x 105 x 325 mm
• Weight: 6 kg
• Operating Temperature Range: 5 … 45 °C
• Altitude Limit: Up to 1000 m

Applications

The Bosch Rexroth CLM01.3-X-0-2-0-FW is engineered for high-performance applications where precision and reliability are paramount. Its robust design and advanced features make it ideal for:

• Packaging Machinery: Enhancing the speed and accuracy of automated packaging lines.
• Multi-Axis Gantry Systems: Providing precise control for complex pick-and-place and material handling operations.
• Automated Material Handling: Optimizing the movement and positioning of goods in warehouses and production facilities.
• CNC and Process Automation Systems: Delivering exact control for machining, assembly, and other intricate automated processes.

Why Choose This Model?

The Bosch Rexroth Indramat CLM01.3-X-0-2-0-FW stands out as a superior choice for industrial automation due to its unique blend of features and performance:

• Unmatched Precision: Achieve sub-micron resolution with precise 3-axis control, critical for sensitive applications.
• Seamless Integration: Compact rack-mount design ensures quick and easy integration into existing control cabinets, minimizing installation time and complexity.
• Reduced Downtime: Real-time LCD diagnostics provide immediate feedback, enabling swift issue resolution and maximizing operational uptime.
• Exceptional Versatility: Flexible I/O expansion supports a broad range of sensor and actuator integrations, adapting to evolving system needs.
• Trusted Reliability: Benefit from the well-known quality and compatibility of Bosch Rexroth systems, ensuring long-term stable and reliable operation.

Order Now

Elevate your automation capabilities with the Bosch Rexroth Indramat CLM01.3-X-0-2-0-FW Axis Positioning Control Module. This high-performance module is available for order with fast worldwide shipping, ensuring you receive your critical components efficiently. Enhance your system's precision, reliability, and overall productivity today.
