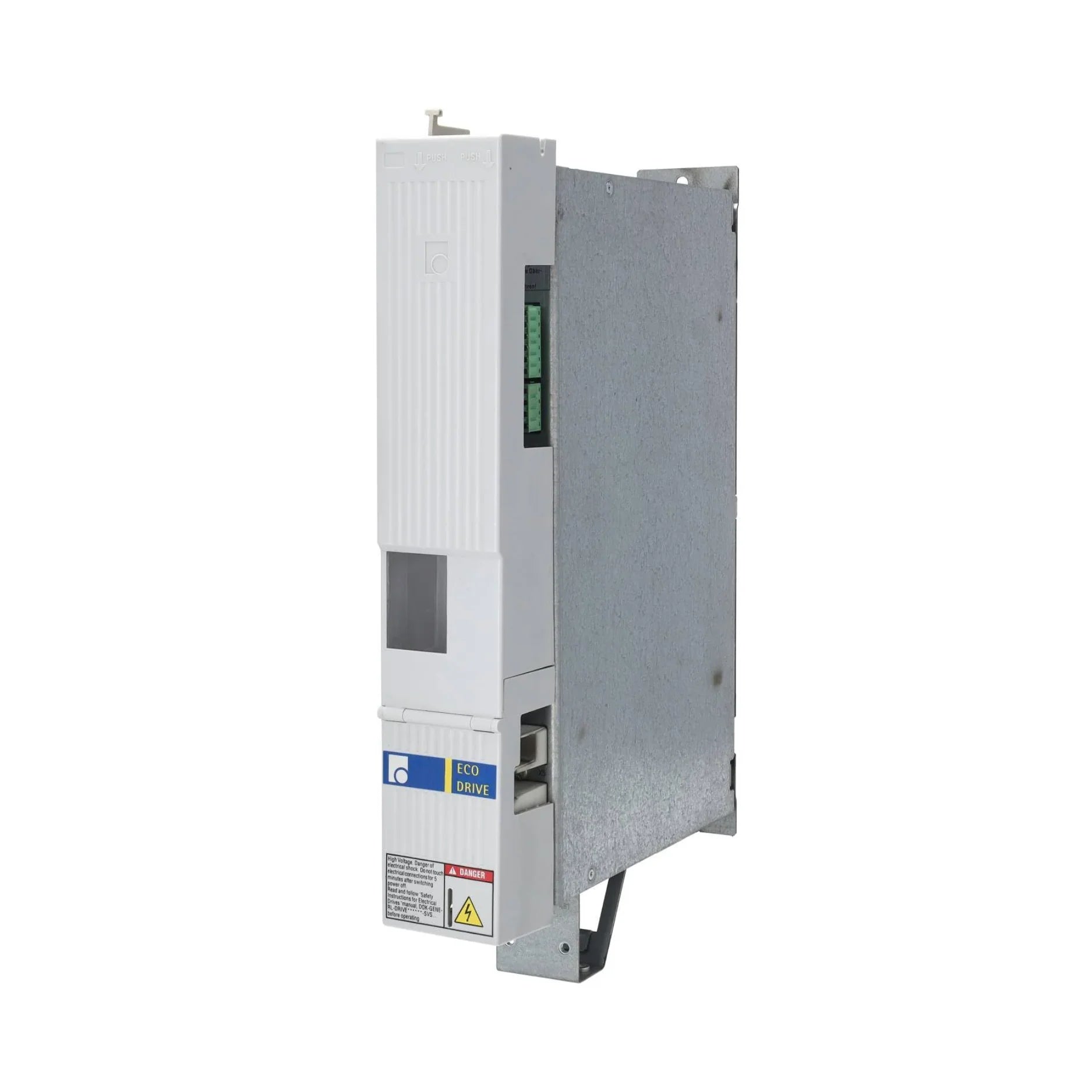

Bosch Rexroth BZM01.3-01-07

Overview

The Bosch Rexroth BZM01.3-01-07 Auxiliary Bleeder Module is an indispensable component for modern industrial automation, meticulously engineered to manage and dissipate excess energy within sophisticated machinery. As part of the renowned BZM Series, this high-performance module is designed to ensure the continuous and safe operation of systems prone to regenerative braking or surplus energy generation. With a robust DC-bus nominal voltage of 700 V, it confidently delivers a continuous bleeder output of 1.0 kW, capable of handling peak loads up to an impressive 40 kW. This capacity guarantees stable and secure energy management, preventing overvoltage conditions and protecting sensitive equipment.

Integrating seamlessly into diverse industrial environments, the BZM01.3-01-07 features an advanced internal air blower cooling system. This critical design choice ensures optimal thermal regulation, even under the most demanding duty cycles and prolonged operation. Its compatibility is further enhanced by a versatile 24 V DC ±20% control voltage range, aligning with prevalent industrial power supply standards. The module's IP20 protection class provides a reliable safeguard against incidental contact and the ingress of dust, prolonging its operational lifespan. Weighing a mere 7 kg, this unit strikes a perfect balance between robust construction and effortless installation within control cabinets, making it a pragmatic choice for demanding applications.

Key Features

• BZM Auxiliary Bleeder Series: Specialised for efficient energy dissipation in industrial automation.
• Optimized Power Management: Delivers a nominal output of 1.0 kW at 700 V DC-bus.
• High Peak Load Capability: Sustains a continuous output of 1.0 kW with peak bleeder power up to 40 kW for demanding applications.
• Integrated Cooling: Features internal air blower cooling for sustained, stable performance and extended module life.
• Versatile Control Voltage: Operates with a 24 V DC ±20% control voltage for broad compatibility.
• Robust Input Range: Supports an input voltage of 19.2 … 28.8 V.
• Current Rating: Capable of handling a current rating of 40 A.
• Enhanced Protection: IP20 protection class ensures safe integration and safeguards against environmental factors.
• Compact Design: Weighs 7 kg, facilitating straightforward incorporation into existing cabinet setups.

Technical Specifications

• Manufacturer: Bosch Rexroth Indramat
• Product Type: BZM Auxiliary Bleeder
• Model: BZM01.3-01-07
• Series Version: 1
• Design Version: 3
• DC-Bus Nominal Voltage: 700 V
• Nominal Output: 1.0 kW
• Continuous Bleeder Output: 1.0 kW
• Peak Bleeder Power: 40 kW
• Control Voltage (X4/1 – X4/4): DC 24 V ±20%
• Input Voltage: 19.2 … 28.8 V
• Current Rating: 40 A
• Current Consumption (24 V connection): 90 mA
• Nominal DC Bus Capacitance: 0.33 mF
• Cooling: Internal Air Blower
• Insulation Resistance: >15 MΩ
• Protection Class: IP20
• Weight: 7 kg
• Maximum Feedback Energy: 40 kW

Applications

• CNC Machining Centers: Essential for managing regenerative braking energy generated during precise cutting and shaping operations.
• High-Speed Packaging Machinery: Guarantees stable operation by dissipating energy during rapid start-stop cycles.
• Robotics: Ideal for systems requiring rapid deceleration, ensuring controlled energy release and preventing stress on components.
• Conveyor and Automated Transport Systems: Enhances efficiency and safety by handling excess energy from motor deceleration.
• General Industrial Automation: A critical solution for any automation setup demanding efficient energy dissipation and voltage regulation.

Why Choose This Model?

The Bosch Rexroth BZM01.3-01-07 stands out as a superior choice for a multitude of compelling reasons. Its robust design is specifically engineered to consistently handle both continuous and peak energy feedback, providing unparalleled reliability in dynamic industrial settings. The inclusion of a sophisticated built-in air blower cooling system is a testament to its longevity and ensures sustained performance even under strenuous operational conditions, significantly extending its service life.

Its compact and lightweight 7 kg design allows for remarkably easy integration into various control cabinets, simplifying installation and optimizing space utilization. Furthermore, the industry-standard 24 V DC control voltage ensures broad compatibility and straightforward connectivity with existing automation infrastructures. By choosing the BZM01.3-01-07, you are investing in a proven solution that guarantees safe, efficient, and reliable energy management within your critical automation systems, leading to reduced downtime and improved operational integrity.

Order Now

Elevate the performance and safety of your industrial automation systems with the Bosch Rexroth BZM01.3-01-07 Auxiliary Bleeder Module. Take advantage of our fast worldwide shipping to receive your essential component without delay. Our team of expert customer support representatives is also on standby, ready to assist you with any inquiries and ensure a smooth procurement process. Invest in reliability, efficiency, and peace of mind – order your BZM01.3-01-07 today and optimize your energy management.
