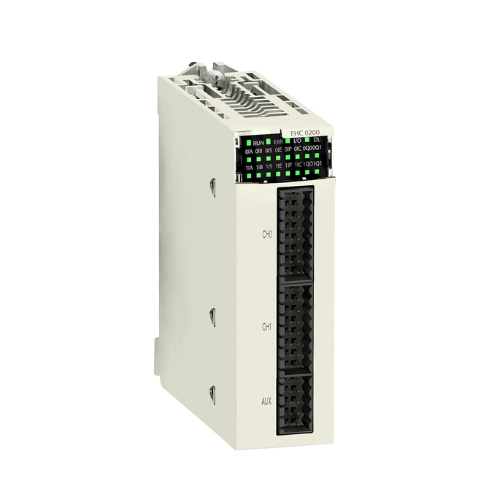

Schneider Electric BMXEHC0200 high-speed counter module, 2 channels, 100 kHz, for encoder inputs with Modicon M340 PLCs.

Schneider Electric BMXEHC0200

$474.99
$474.99
Skip to product information
Schneider Electric BMXEHC0200 high-speed counter module, 2 channels, 100 kHz, for encoder inputs with Modicon M340 PLCs.
  • Schneider Electric BMXEHC0200 high-speed counter module, 2 channels, 100 kHz, for encoder inputs with Modicon M340 PLCs.
  • Schneider Electric BMXEHC0200 high-speed counter module, 2 channels, 100 kHz, for encoder inputs with Modicon M340 PLCs.
Schneider Electric BMXEHC0200

Schneider Electric BMXEHC0200

$474.99
$474.99

Overview

Elevate your industrial automation capabilities with the Schneider Electric BMXEHC0200, an advanced high-speed counter module engineered specifically for the Modicon M340 programmable logic controller series. This robust two-channel unit is meticulously designed to handle critical counting and positioning applications where speed and accuracy are paramount. From intricate machine tools to high-throughput packaging lines and dynamic conveyor systems, the BMXEHC0200 provides the reliable performance necessary to optimize operational efficiency and precision in even the most demanding environments.

Key Features

  • Dual Channel Architecture: Offers two independent high-speed counting channels for versatile application.
  • Encoder Compatibility: Fully supports various incremental encoder signals (A, B, Z) for flexible integration.
  • Exceptional Frequency Response: Achieves a maximum input frequency of 100 kHz per channel, ensuring no count is missed.
  • Diverse Functional Capabilities: Equipped for precise frequency measurement, period timing, pulse counting, advanced quadrature decoding, and real-time position/speed monitoring.
  • Real-Time Data Processing: Guarantees rapid response times crucial for sensitive control applications.
  • Integrated Diagnostics: Features built-in diagnostic tools for proactive identification of signal loss or encoder errors, minimizing downtime.
  • Seamless Modicon M340 Integration: Designed for effortless compatibility with Modicon M340 PLCs via the X80 backplane.

Technical Specifications

  • Model Identifier: BMXEHC0200
  • Product Series: Modicon M340
  • Input Channels: 2 x dedicated high-speed counter inputs
  • Maximum Input Frequency: 100 kHz per channel
  • Signal Input Type: Supports both differential and single-ended A/B/Z encoder signals
  • Counting Resolution: A robust 32-bit counting range for extensive data recording.
  • Power Requirements: Operates on 24V DC supplied directly from the base rack.
  • Power Draw: Approximately 150 mA at 3.3 V.
  • Electrical Isolation: Features optical isolation between channels and logic circuitry for enhanced reliability.
  • Mounting Method: Standard DIN rail mounting facilitated by the base rack.
  • Operational Temperature Range: Certified for operation from 0°C to 60°C.
  • Ingress Protection: Rated IP20.
  • Physical Dimensions (W x H x D): Compact design measuring 32 mm x 100 mm x 115 mm.
  • Unit Weight: Approximately 0.2 kg.

Applications

  • Precision Positioning Systems: Ideal for accurately tracking and controlling feedback loop mechanisms from linear or rotary encoders.
  • Automated Machinery: Ensures exact synchronization of motion and processes within high-speed industrial production lines.
  • Packaging Industry: Provides robust monitoring and control for rapid-paced packaging operations.
  • Material Handling Systems: Enables precise tracking of conveyor belt movements and accurate item counting in logistics and sorting facilities.

Why Choose This Model?

The Schneider Electric BMXEHC0200 stands out as a superior choice for your control systems due to its unparalleled performance and thoughtful design. Its capability to handle frequencies up to 100 kHz ensures that even the fastest industrial processes are accurately monitored and controlled, providing a critical advantage in high-speed applications. With reliable encoder input processing, including advanced quadrature decoding, this module delivers the precision your operations demand. Furthermore, its native integration with Modicon M340 PLCs means configuration is streamlined using Unity Pro or EcoStruxure Control Expert, reducing setup time and complexity. Built for durability and accuracy, the BMXEHC0200 is a robust solution engineered to meet the stringent requirements of modern automation tasks, offering a foundation for dependable and efficient operations.

Order Now

Experience the benefits of enhanced precision and control in your automation projects. We offer fast shipping and reliable worldwide delivery to ensure your project stays on schedule. Explore our comprehensive Schneider Electric BMX Series PLC collection for more modular and scalable control solutions. Alternatively, delve into our complete array of Schneider Electric PLCs to discover the perfect automation controller for your diverse industrial requirements.
