Schneider Electric BMXDRA1605

Overview

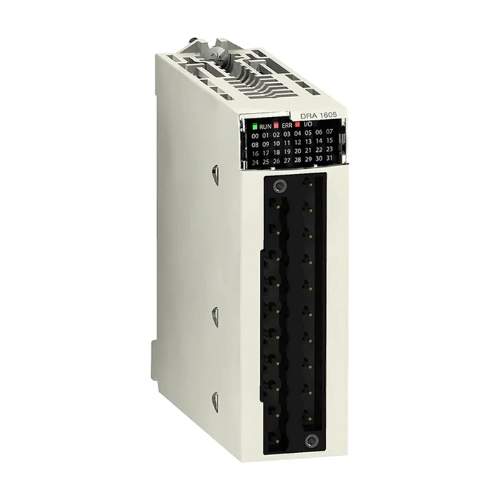

Elevate your industrial control systems with the Schneider Electric BMXDRA1605, a sophisticated 16-channel digital relay output module engineered specifically for the Modicon M340 Programmable Logic Controller (PLC) platform. Designed for paramount reliability and versatility, this module empowers seamless management of a broad spectrum of discrete output devices, including contactors, indicator lamps, solenoids, and auxiliary relays. It stands as an indispensable component for any automation architecture demanding galvanic isolation, independent channel control, and steadfast performance across demanding operational environments.

The BMXDRA1605 provides a crucial interface between your M340 PLC and external actuators, ensuring precise and safe operation. Its robust design is optimized for environments where uninterrupted functionality and rapid response are critical, making it a cornerstone for advanced industrial automation solutions.

Key Features

• Expanded Output Capacity: Features 16 distinct relay outputs, significantly boosting your control capabilities per module.
• Dependable Switching Circuitry: Incorporates electromechanical relays with normally open (NO) contacts, purpose-built for consistent and repeatable switching actions.
• Enhanced Isolation: Benefits from optical isolation technology, ensuring a clear and safe separation between individual channels and the core logic circuit, thereby protecting your system from electrical disturbances.
• Flexible Load Compatibility: Masterfully handles switching for both alternating current (AC) and direct current (DC) loads, offering broad applicability.
• Integrated Diagnostic Feedback: Equipped with channel-specific status LEDs, providing immediate visual diagnostics and real-time monitoring of each output's operational state.
• Seamless Maintainability: Supports hot-swappable functionality, allowing for module replacement or servicing without the need for system downtime, optimizing operational continuity.

Technical Specifications

• Model Identifier: BMXDRA1605
• Product Series: Modicon M340
• Output Quantity: 16 individual outputs
• Output Mechanism: Relay (Normally Open configuration)
• Rated Voltage Range:
  • 5–30 V DC
  • 19–250 V AC
• Current Capacity per Channel:
  • 2 A at 30 V DC
  • 2 A at 250 V AC
• Module-wide Current Load: Maximum 8 A
• Isolation Withstand Voltage: 2500 V between output and logic circuitry
• Operational Response Speed:
  • Turn-on Time: ≤ 10 ms
  • Turn-off Time: ≤ 5 ms
• Power Consumption: 210 mA at 3.3 V DC
• Operational Temperature Span: 0°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Ingress Protection Rating: IP20
• Mounting Method: Standard DIN rail via Modicon M340 base rack
• Physical Dimensions (W x H x D): 54 mm x 100 mm x 85 mm
• Approximate Mass: 0.3 kg

Applications

• Precision Industrial Automation: Excels in controlling various components such as intermediate relays, visual indicators, and electromagnetic solenoids within complex machinery.
• Advanced Building Management Solutions: Offers robust control for integrated building systems, including intelligent lighting networks and sophisticated HVAC installations.
• Efficient Material Handling Systems: Manages contactors and actuators in conveyor belts, robotic arms, and other automated material transport equipment.
• Flexible OEM Machinery Integration: Provides adaptable relay control for equipment manufacturers seeking versatile multi-output solutions tailored to specific machine functionalities.

Why Choose This Model?

The Schneider Electric BMXDRA1605 distinguishes itself as a premier choice for industrial control applications due to its comprehensive feature set and unwavering reliability. Its ability to provide rock-solid relay switching for both AC and DC loads ensures broad compatibility and performance across diverse electrical schemes.

As a high-density output module, it intelligently packs 16 individually isolated channels, maximizing control in a compact footprint. This isolation is paramount for protecting sensitive control logic and ensuring the integrity of your entire system. Furthermore, its hot-swappable design underscores Schneider Electric's commitment to operational efficiency, facilitating maintenance and upgrades without disrupting critical processes.

Designed for full compatibility with Modicon M340 systems, the BMXDRA1605 integrates seamlessly into existing and new architectures, offering a straightforward upgrade path for enhanced control capabilities and system resilience. Opt for this module when reliability, efficiency, and advanced control are non-negotiable.

Order Now

Secure the Schneider Electric BMXDRA1605 today and enhance your automation projects. We provide swift shipping services and comprehensive worldwide delivery options to meet your global demands.

For additional solutions, explore our curated Schneider Electric BMX Series PLC collection. Diversify your control possibilities by browsing our complete range of Schneider Electric PLCs, featuring modular, scalable, and highly dependable automation controllers designed for every industrial application imaginable.
