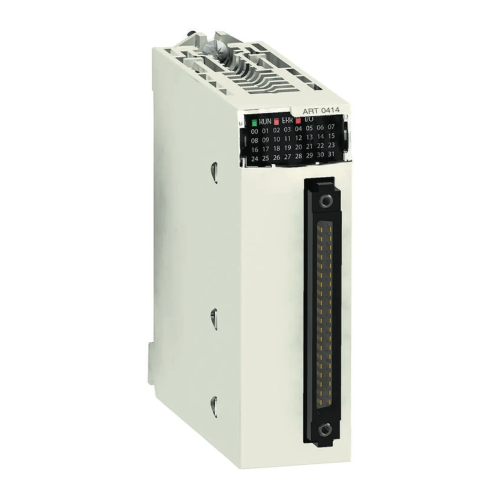

Schneider Electric BMXART0414

Overview

The Schneider Electric BMXART0414 stands as a testament to precision engineering, offering a sophisticated 4-channel isolated analog input module crafted for the Modicon X80 I/O architecture. This unit is specifically designed to meticulously measure low-level analog signals, delivering unparalleled accuracy critical for demanding industrial applications. The integration of galvanic isolation for each channel is a paramount feature, providing robust noise immunity and safeguarding delicate measurement circuits against electrical interference and potential damage.

Engineered for seamless integration with Schneider Electric's Modicon M580 and M340 automation platforms, this versatile module accommodates a diverse array of low-level inputs. From sensitive thermocouples and precision low-voltage sensors to millivolt-range devices, the BMXART0414 excels in environments where precise and isolated analog data acquisition is non-negotiable, ensuring reliable performance in the most challenging industrial landscapes.

Key Features

• Quad-Channel Isolation: Benefit from four independently isolated analog input channels, guaranteeing maximum signal integrity and system protection.
• Versatile Low-Level Input Capability: Expertly handles signals from millivolt sensors and various low-voltage instruments, broadening its application scope.
• Exceptional Measurement Accuracy: Achieves superior precision in data acquisition, essential for critical control and monitoring tasks.
• Seamless Modicon X80 Compatibility: Fully integrates with Modicon M340 and M580 PLCs, streamlining system design and expansion.
• Efficient DIN Rail Mounting: Facilitates quick and secure installation within standard control cabinets, optimizing space and accessibility.

Technical Specifications

• Catalog Number: BMXART0414
• Series: Modicon X80
• Input Channels: 4 (individually isolated)
• Input Type: Configurable low-level voltage (mV)
• Resolution: 16-bit for fine-grained measurement
• Input Range: Typically covers ±25 mV to ±2000 mV, adaptable to specific needs
• Isolation: Comprehensive channel-to-channel and channel-to-bus isolation for enhanced protection
• Mounting: Designed for DIN rail mounting within an X80 rack
• Operating Temperature: Operates reliably from 0°C to +60°C
• Weight: Approximately 250 grams

Applications

• Advanced Process Control: Acquire highly accurate data from sensitive analog signal sources, crucial for maintaining optimal process parameters.
• Industrial Sensor Monitoring: Ideal for integrating thermocouples, load cells, and a wide array of industrial sensors with robust noise rejection.
• OEM Solutions & System Integration: Provides a dependable, low-noise, and isolated analog input backbone for custom Modicon M580/M340 based automation systems.
• Research & Development: Supports precise data collection in experimental setups where signal integrity is paramount.
• Quality Assurance: Enhances the reliability of measurements in quality control processes for various industries.

Why Choose This Model?

The BMXART0414 stands out as a prime choice for engineers and system integrators seeking uncompromising performance in analog input modules. Its exceptional design prioritizes high-precision acquisition of low-voltage signals, a feature that is often challenging to achieve without robust isolation. The galvanic isolation integrated within this module offers a dual advantage: it significantly boosts signal integrity by mitigating common-mode noise and effectively safeguards connected equipment from electrical transients, thus extending the lifespan of your critical components. As an integral component of the celebrated Modicon X80 I/O platform, this module promises not only seamless compatibility but also the inherent reliability and flexibility that define Schneider Electric's industrial automation solutions. Investing in the BMXART0414 means securing a future-proof, high-performance foundation for your most sensitive analog measurement requirements.

Order Now

Elevate your automation system's capabilities with the Schneider Electric BMXART0414. This module is currently available and poised for global shipment, offering an immediate enhancement to your Modicon automation infrastructure. It represents the optimal solution for incorporating high-accuracy, low-level analog inputs into your system, ensuring robust and reliable data acquisition. Discover the full potential of your Modicon setup by integrating this advanced module today.
