Beckhoff KL5101

Overview

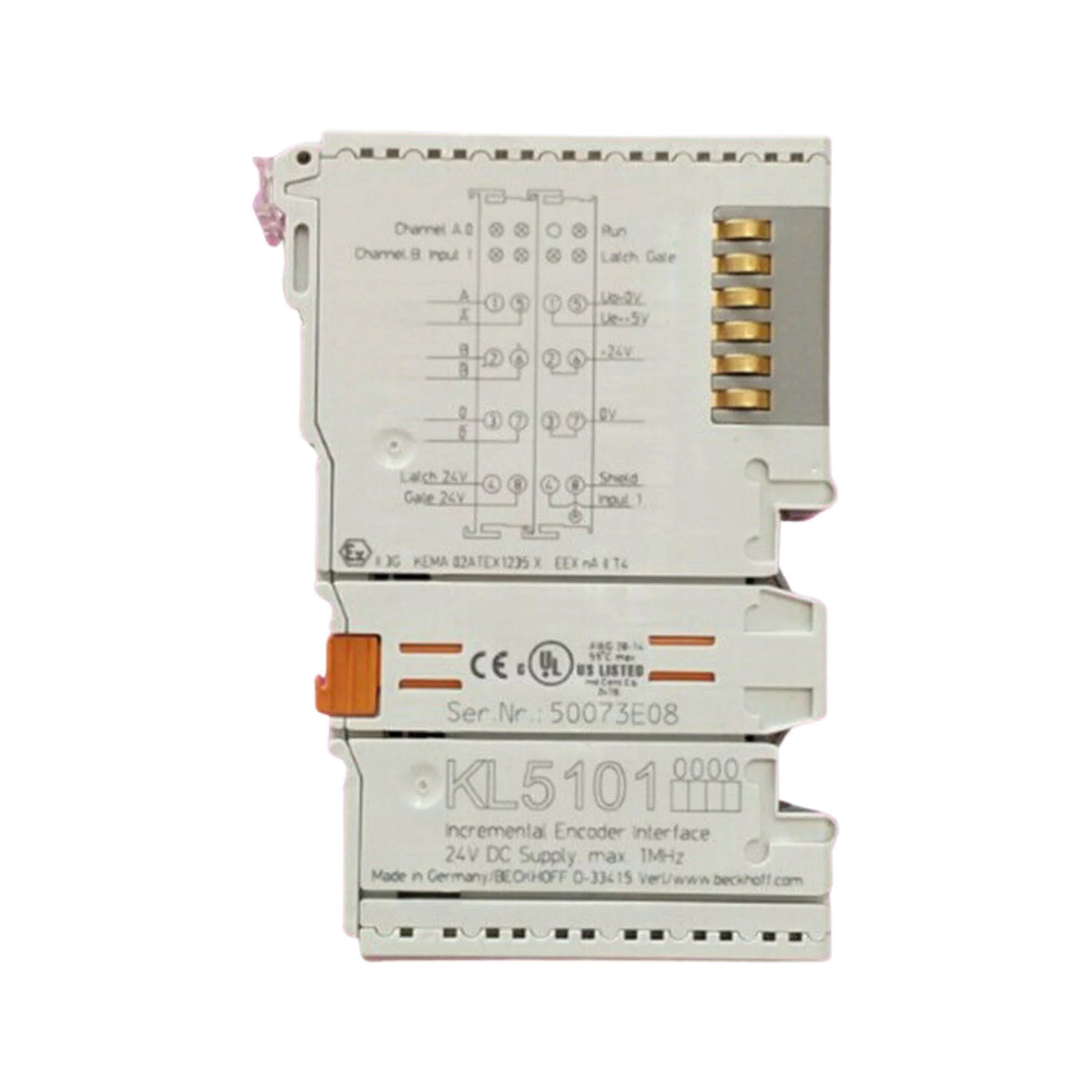

The Beckhoff KL5101 is a high-performance, 1-channel incremental encoder interface terminal meticulously engineered for seamless integration with 5 V DC encoders utilizing either RS422 differential or TTL single-ended signals. This robust module delivers unparalleled precision in position and speed measurement, making it an indispensable component for sophisticated motion control and automation applications where high-resolution feedback is paramount. Its advanced design ensures reliable data acquisition for critical industrial processes, allowing for superior accuracy and operational efficiency. The KL5101's ability to process precise encoder signals is central to achieving optimal performance in dynamic industrial environments, solidifying its role as a core element for modern automation systems.

Key Features

• Single-Channel Encoder Input: Dedicated 1-channel input ensures focused and accurate data acquisition from a single incremental encoder.
• Versatile Signal Compatibility: Supports both RS422 differential and TTL single-ended signals, offering flexible integration with a wide range of encoder types.
• Integrated 5 V DC Encoder Supply: Provides a convenient and stable 5 V DC power supply directly to the encoder, simplifying wiring and reducing external component requirements.
• High-Resolution Counting: Engineered for highly accurate counting, enabling precise positioning and speed control in demanding applications.
• K-bus Interface: Seamlessly integrates into existing K-bus systems, providing flexible and efficient communication within the Beckhoff I/O platform.
• Compact Design: With a narrow 12 mm terminal width, the module optimizes space utilization within control cabinets, allowing for denser installations.
• Diagnostic LED Indicators: Features clear LED indicators for instant status updates and simplified troubleshooting, ensuring operational transparency.
• Wide Operating Temperature Range: Functions reliably across a broad temperature spectrum from –25 °C to +60 °C, suitable for diverse industrial environments.

Technical Specifications

• Part Number: KL5101
• Manufacturer: Beckhoff
• Input Channels: 1
• Encoder Supply: 5 V DC
• Signal Type: RS422/TTL
• Count Frequency: Up to 1 MHz
• Mounting: DIN-rail terminal module
• Width: 12 mm
• Operating Temperature: –25 °C to +60 °C

Applications

• Servo and Stepper Motor Feedback: Provides essential position and speed feedback for precise control of servo and stepper motor systems, enhancing dynamic performance.
• CNC Machinery: Integral for achieving high accuracy and repeatability in Computer Numerical Control (CNC) applications, ensuring precise machining.
• Industrial Positioning Systems: Powers various industrial positioning systems where accurate measurement and control of linear or rotary motion are critical.
• Robotics and Automation Lines: Essential for robotic arms and automated production lines, enabling precise movement and synchronization of components.
• Conveyor Systems: Ensures accurate tracking and control of material flow in diverse conveyor and material handling applications.
• Packaging and Printing Machines: Facilitates high-speed and accurate synchronization in packaging and printing processes, minimizing errors and maximizing throughput.

Why Choose This Model?

The Beckhoff KL5101 stands out for its exceptional capability to deliver accurate and high-speed encoder signal processing, which is fundamental for advanced motion control systems. Its compact and space-saving 12 mm design ensures it can be integrated efficiently into even the most crowded control cabinets, optimizing valuable panel real estate. With flexible signal compatibility supporting both RS422 and TTL encoders, the KL5101 offers unparalleled versatility, adapting effortlessly to a wide array of industrial setups without compromising performance. This robust module provides reliable feedback, acting as the cornerstone for precise and stable motion control. Furthermore, its integration into the Beckhoff K-bus system ensures seamless communication and expandability, making it a forward-thinking choice for current and future automation demands. Invest in the KL5101 for a dependable, high-performance solution that elevates the precision and efficiency of your industrial applications.

Order Now

The Beckhoff KL5101 incremental encoder interface is readily available to enhance your industrial automation systems. Benefit from its precision and robust performance by placing your order today. We offer worldwide shipping, ensuring efficient delivery to your location so you can quickly integrate this essential component into your operations. Take the next step in optimizing your motion control applications with the reliable and high-quality engineering of Beckhoff.
