Beckhoff EL7221

Overview

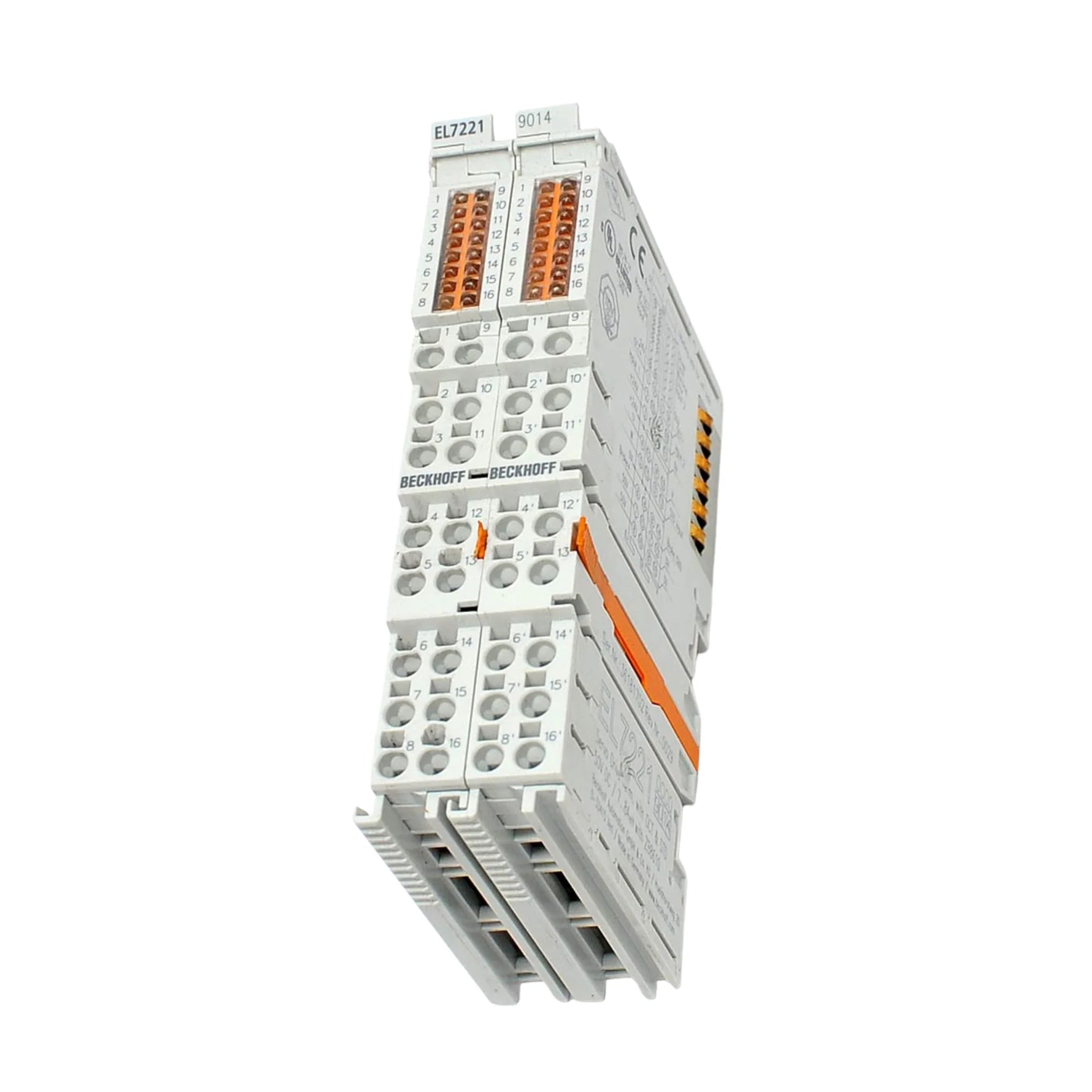

The Beckhoff EL7221 EtherCAT Servo Drive Terminal represents a significant advancement in compact industrial automation, seamlessly integrating a high-performance servo drive within an EtherCAT Terminal. Engineered for direct connection and precise control of servomotors, this innovative module delivers exceptional dynamic motion control with a continuous current capability of up to 2.8 A. Its ultra-compact form factor makes it an ideal solution for decentralized control architectures and applications where cabinet space is at a premium, enabling streamlined designs and enhanced system efficiency.

This all-in-one solution simplifies wiring, reduces installation time, and minimizes overall system complexity, making it a compelling choice for a wide range of motion control tasks. By leveraging the power of EtherCAT, the EL7221 ensures real-time communication and deterministic performance, crucial for demanding industrial environments. The robust design and advanced features underscore Beckhoff's commitment to delivering cutting-edge automation technology.

Key Features

• Integrated Servo Drive: Full-fledged servo drive functionality within a standard EtherCAT Terminal housing, optimizing space and reducing wiring.
• High Continuous Current: Capable of delivering up to 2.8 A, supporting a broad spectrum of servomotor types and applications.
• Direct Motor Connection: Simplifies wiring and reduces external components, facilitating quick and efficient system integration.
• Advanced Motion Control: Enables highly dynamic and precise control of servomotors for demanding positioning and velocity tasks.
• Space-Saving Design: Compact footprint significantly reduces the required cabinet space, ideal for modern machinery and decentralized installations.
• Diagnostic Capabilities: Integrated diagnostic LEDs provide immediate visual feedback on system status, aiding in troubleshooting and maintenance.
• EtherCAT Communication: Utilizes the high-speed EtherCAT protocol for real-time data exchange and deterministic process control.

Technical Specifications

• Beckhoff Code: EL7221
• Type: EtherCAT Terminal with Integrated Servo Drive
• Rated Current: Up to 2.8 A (continuous)
• Supply Voltage: 24–48 V DC
• Motor Connection: Direct connection to standard servomotors
• Communication Protocol: EtherCAT (IEEE 802.3 Ethernet compatible)
• Feedback Systems: Supports various motor encoder types for precise position and velocity feedback.
• Operating Temperature: 0 °C to +55 °C
• Mounting: Standard DIN rail mounting within the EtherCAT modular system
• Certifications: CE, UL compliant, ensuring global applicability and safety standards.

Applications

The versatility and high performance of the Beckhoff EL7221 make it suitable for a diverse array of industrial automation applications requiring precise and dynamic motion control:

• Robotics and Handling Systems: Ideal for multi-axis robots, pick-and-place units, and material handling equipment where compact and powerful servo control is essential.
• Packaging Machinery: Enhances the speed and accuracy of packaging lines, including filling, sealing, and labeling machines.
• CNC and Motion Control Applications: Provides precise control for tooling machines, laser cutting, and other applications demanding synchronized movement.
• Compact Industrial Automation Solutions: Perfectly suited for small to medium-sized machines and distributed control systems where space and wiring efficiency are critical.
• Textile and Printing Machines: Offers reliable and accurate control for intricate processes requiring high repeatability.

Why Choose This Model?

The Beckhoff EL7221 stands out in the market due to its unique combination of features and benefits:

• All-in-One Solution: Integrates both EtherCAT communication and a servo drive into a single, compact module, reducing the need for separate components and simplifying system architecture.
• Superior Dynamic Performance: Delivers high-performance motion control, enabling faster cycle times and more precise movements for improved productivity.
• Unmatched Space Savings: Its miniature design significantly reduces control cabinet size and associated costs, freeing up valuable production floor space.
• Streamlined Installation: Direct motor connection and integrated diagnostics accelerate installation and commissioning processes, minimizing downtime.
• Trusted Beckhoff Reliability: Built with Beckhoff's renowned quality and engineering expertise, ensuring long-term operational stability and robustness in challenging industrial environments.
• Future-Proof Technology: Leveraging the open and high-speed EtherCAT standard, the EL7221 is designed to meet the evolving demands of industrial automation.

Order Now

Elevate your industrial automation and motion control systems with the cutting-edge Beckhoff EL7221 EtherCAT Servo Drive Terminal. Experience the benefits of integrated intelligence, precise control, and a compact design that optimizes both performance and space. Enhance your machinery's capabilities and achieve new levels of efficiency and reliability. Contact us today to learn more or to place your order for this indispensable component.
