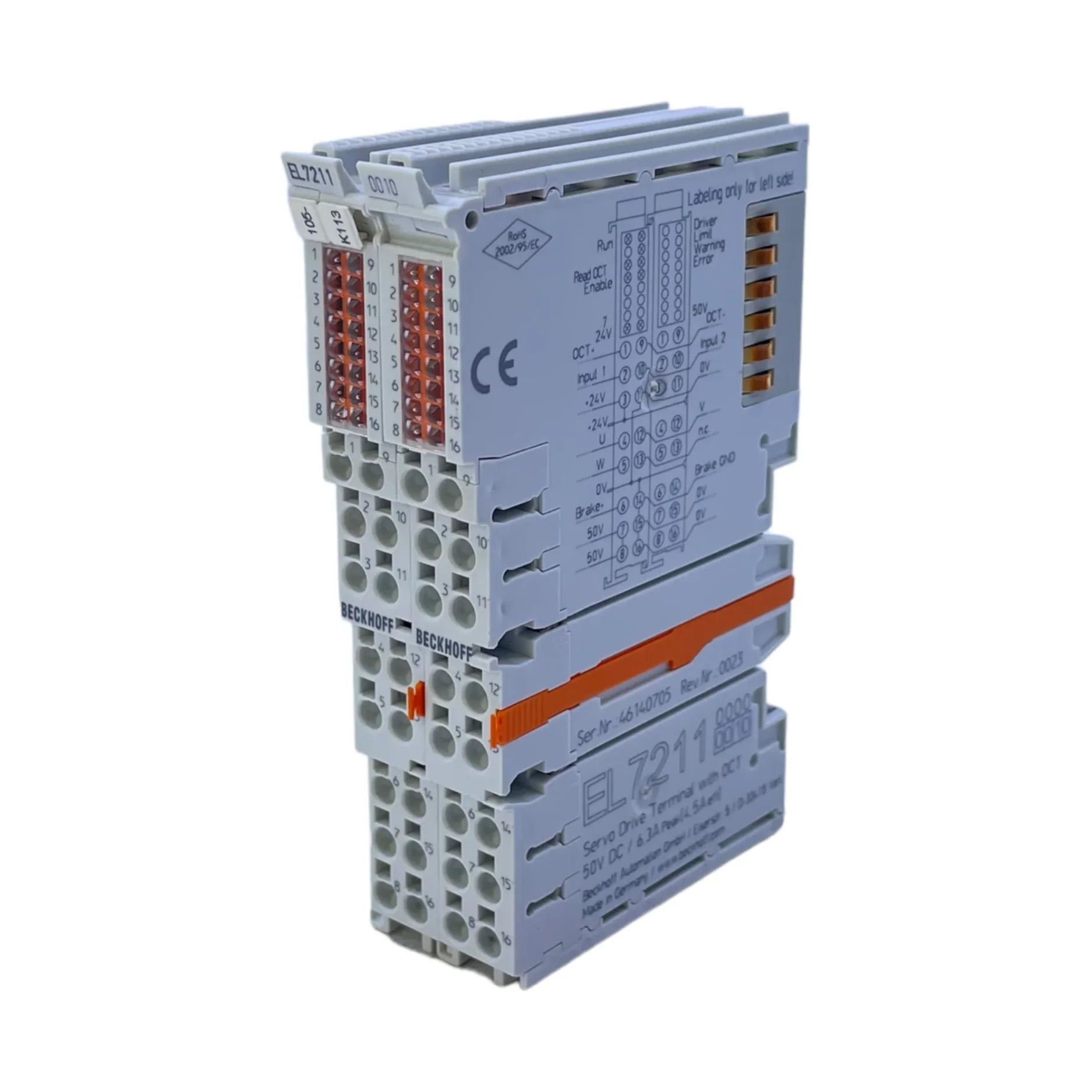

Beckhoff EL7211

Overview

The Beckhoff EL7211 stands as a groundbreaking 1-channel EtherCAT servo terminal, meticulously engineered to revolutionize industrial automation. This compact yet powerful module integrates a sophisticated servo drive, capable of managing motors with up to 2.8 Amperes RMS. A cornerstone of its design is the innovative One Cable Technology (OCT), which ingeniously merges motor power and feedback signals into a single cable. This not only dramatically simplifies wiring complexity but also contributes to a cleaner, more organized control cabinet and reduced installation times. Tailored for high-performance motion control, the EL7211 delivers unparalleled precision positioning and dynamic control, making it an indispensable component for modern industrial automation systems demanding efficiency and reliability.

Key Features

• Integrated Servo Drive: A 1-channel EtherCAT servo terminal with a built-in drive for streamlined operation.
• Powerful Output: Delivers a continuous output current of 2.8 A RMS, suitable for a wide range of applications.
• One Cable Technology (OCT) Support: Reduces cabling requirements by combining power and feedback into one connection.
• Exceptional Performance: Achieves high dynamic response and precise positioning accuracy for critical tasks.
• Advanced Feedback Evaluation: Features integrated feedback evaluation specifically for OCT motors, ensuring optimal control.
• Ultra-Compact Design: Boasts a narrow 12 mm DIN-rail form factor, maximizing space efficiency within control cabinets.
• Intuitive Diagnostics: Equipped with diagnostic and status LEDs for easy monitoring and troubleshooting.
• Decentralized Control Ready: Perfectly suited for decentralized motion control architectures, enhancing system flexibility.

Technical Specifications

• Part Number: EL7211
• Manufacturer: Beckhoff
• Function: EtherCAT servo terminal with integrated drive
• Output Current: 2.8 A RMS continuous
• Motor Connection: One Cable Technology (OCT)
• Supply Voltage: 24–50 V DC
• Feedback: OCT encoder interface
• Communication: EtherCAT
• Mounting Type: DIN-rail
• Protection Class: IP20
• Operating Temperature: –25 °C to +60 °C
• Width: 12 mm

Applications

The versatility and precision of the Beckhoff EL7211 make it an ideal solution for a diverse array of industrial applications, including:

• Packaging Machinery: Enhancing speed and accuracy in sealing, filling, and labeling processes.
• Robotics and Handling Systems: Providing precise and dynamic control for articulated robots and material handling.
• Precision Assembly Lines: Ensuring meticulous component placement in automated assembly.
• Conveyor and Sorting Equipment: Optimizing throughput and efficiency in logistics and manufacturing.
• Small CNC Machines: Delivering high-performance motion control for compact computer numerical control applications.

Why Choose This Model?

The Beckhoff EL7211 sets itself apart through a combination of innovative features and robust design, offering compelling advantages for your automation needs:

• Unmatched Integration: Seamlessly combines a servo drive and terminal into a single, compact module, reducing component count and complexity.
• Wiring Simplification: Leverages One Cable Technology (OCT) to significantly cut down on cabling, leading to faster installation and less potential for errors.
• Superior Performance: Engineered for high-performance control, capable of handling the most demanding motion tasks with exceptional accuracy and speed.
• Effortless Connectivity: Boasts seamless EtherCAT integration, ensuring rapid and synchronous communication within your automation network.
• Industrial-Grade Reliability: Designed for continuous operation in harsh industrial environments, offering dependable performance within a remarkably small footprint.
• Cost-Effectiveness: Reduces total cost of ownership through simplified wiring, faster commissioning, and reliable operation.

Order Now

Elevate your industrial automation capabilities with the cutting-edge Beckhoff EL7211 1-Channel EtherCAT Servo Terminal. This advanced module, offering integrated drive technology and One Cable Technology (OCT), is readily available to ship worldwide. Experience the benefits of precise motion control, simplified wiring, and a compact design that optimizes space and performance. For inquiries or to place your order, contact us today and take the next step towards more efficient and reliable automation solutions. Equip your systems with the proven quality and innovation of Beckhoff technology.
