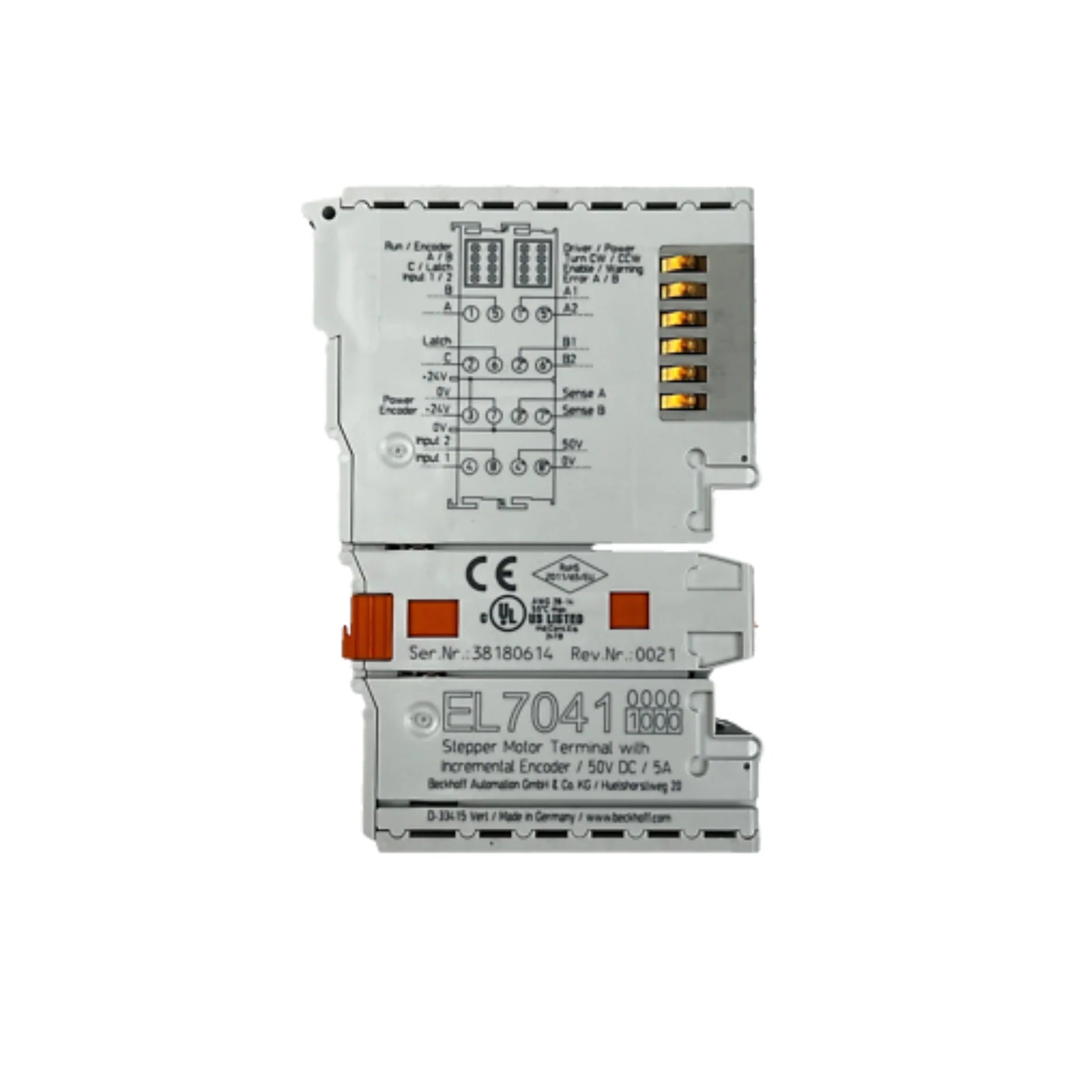

Beckhoff EL7041

Overview

The Beckhoff EL7041 EtherCAT Stepper Motor Terminal represents a pinnacle of compact and powerful motion control for industrial automation. This single-channel marvel seamlessly integrates into your existing EtherCAT network, offering direct and highly precise control over stepper motors. Engineered for performance and efficiency, the EL7041 delivers a robust output current of up to 5 Amperes and supports a supply voltage of up to 50 Volts DC, making it suitable for a wide array of demanding applications. Its advanced microstepping capabilities, reaching an impressive 1/256 resolution, ensure exceptionally smooth and accurate motion, vital for delicate positioning tasks. Furthermore, the terminal boasts integrated diagnostic functions that provide real-time feedback and status indicators, ensuring reliable operation and simplified troubleshooting. Designed to fit effortlessly into DIN-rail mounted I/O systems, the Beckhoff EL7041 is the ideal solution for modern automation environments where space is at a premium and high-resolution positioning is paramount.

Key Features

• Single-Channel EtherCAT Stepper Motor Control: Dedicated control for one stepper motor, streamlining your system architecture.
• High-Current Output: Delivers an impressive output current of up to 5 Amperes, compatible with a broad range of stepper motors.
• Flexible Supply Voltage: Operates efficiently with a supply voltage of up to 50 Volts DC.
• Advanced Microstepping: Achieves exceptionally smooth and precise motion control with microstepping capabilities up to 1/256.
• Integrated Diagnostics & LED Indicators: Real-time monitoring and status feedback for enhanced reliability and easier maintenance.
• Step/Direction Interface Support: Ensures straightforward integration and control.
• Space-Saving Design: Ultra-compact 12 mm housing, perfect for applications with limited enclosure space.
• DIN-Rail Mountable: Effortless installation within standard industrial control cabinets.

Technical Specifications

• Part Number: EL7041
• Manufacturer: Beckhoff
• Function: Stepper motor control
• Channels: 1
• Output Current: Up to 5 A
• Supply Voltage: Up to 50 V DC
• Microstepping: Up to 1/256
• Communication: EtherCAT
• Mounting Type: DIN-rail
• Protection Class: IP20
• Operating Temperature: –25 °C to +60 °C
• Dimensions: 12 mm width

Applications

The versatility and precision of the Beckhoff EL7041 make it an indispensable component across various industries and applications requiring exact motion control:

• Precision Motion Control Systems: Ideal for demanding tasks where accuracy and repeatability are critical.
• Compact Pick-and-Place Units: Enhances the efficiency and speed of automated assembly lines.
• Laboratory Automation: Provides reliable and precise control for scientific instruments and experimental setups.
• Small-Scale CNC Machinery: Enables high-resolution movement for milling, engraving, and other CNC operations.
• OEM Equipment with EtherCAT-Based I/O: Seamlessly integrates into a wide range of original equipment manufacturers' solutions, leveraging the power of EtherCAT.

Why Choose This Model?

The Beckhoff EL7041 stands out as a superior choice for your motion control needs due to its unique combination of features and benefits:

• Unmatched Integration: Combines stepper motor control and EtherCAT communication into a single, compact unit, simplifying wiring and reducing installation time.
• High Performance in a Small Footprint: Delivers robust motion control capabilities without sacrificing valuable cabinet space, courtesy of its 12 mm width.
• Seamless EtherCAT Connectivity: Ensures real-time, deterministic communication for synchronous control within your automation network.
• Enhanced Reliability: Integrated diagnostics with clear LED status indicators provide immediate feedback, minimizing downtime and aiding in proactive maintenance.
• Built for Industrial Environments: With an IP20 protection class and a wide operating temperature range of –25 °C to +60 °C, the EL7041 is engineered for enduring performance in challenging industrial and OEM settings.
• Future-Proof Solution: As part of the Beckhoff EtherCAT ecosystem, this terminal offers scalability and compatibility, safeguarding your investment.

Order Now

Elevate your automation projects with the precision and reliability of the Beckhoff EL7041 EtherCAT Stepper Motor Terminal. This high-performance, single-channel unit is readily available and ships worldwide, ready to integrate into your demanding applications. Experience the future of compact, intelligent motion control today. Contact us to secure your EL7041 and unlock unparalleled accuracy and efficiency.
