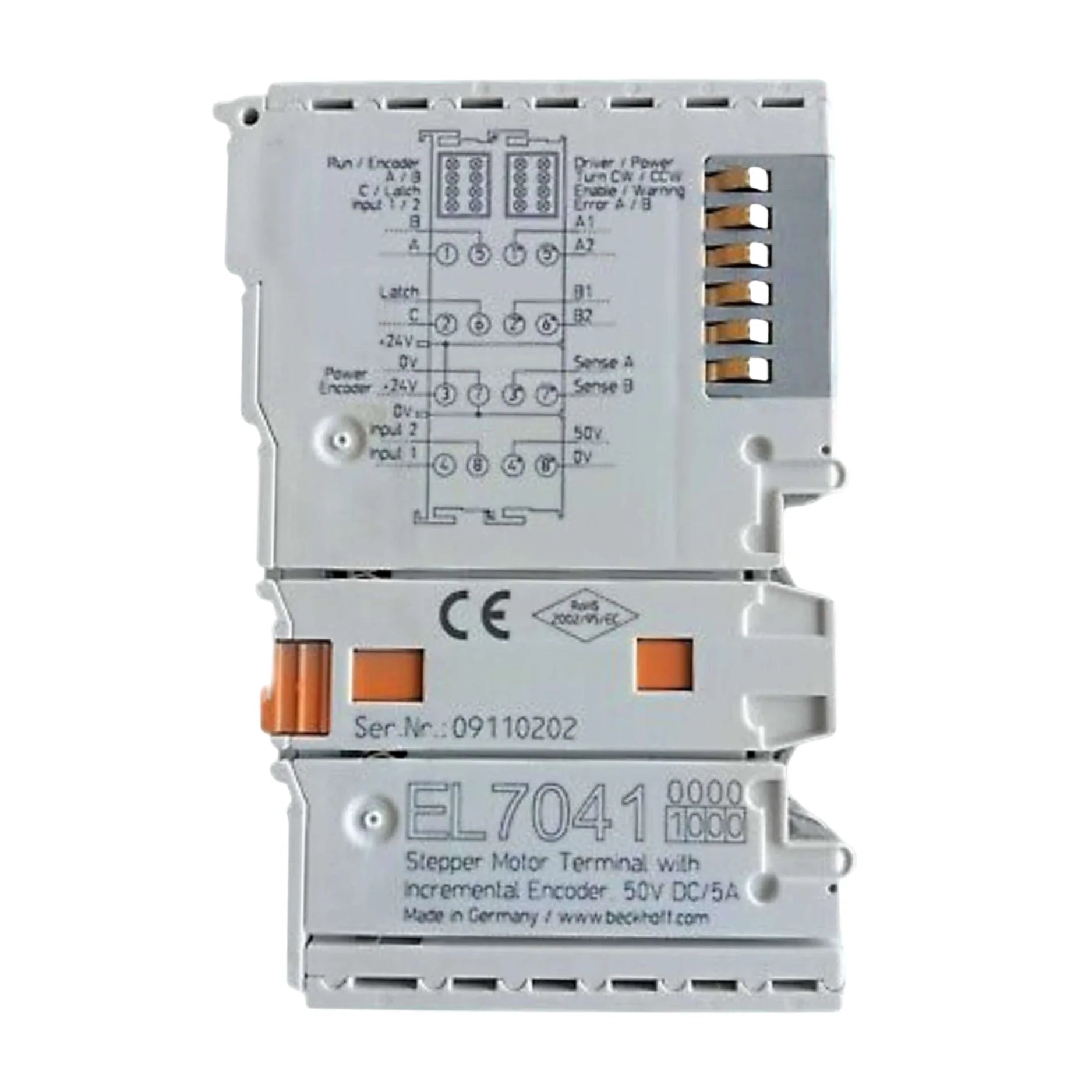

Beckhoff EL7041-1000

Overview

Experience unparalleled precision and control with the Beckhoff EL7041-1000, a high-performance 1-channel stepper motor terminal meticulously engineered for seamless integration into your EtherCAT I/O system. This robust and compact DIN-rail component is designed to elevate your automation applications, providing up to 5 Amperes of output current within a versatile 24–50 V DC range. Its advanced capabilities include sophisticated microstepping, ensuring exceptionally smooth and accurate stepper motor movements, crucial for demanding industrial processes. The EL7041-1000 is not just about power; it's about intelligent control, featuring integrated diagnostic and feedback functions that enhance system reliability and simplify troubleshooting. Its streamlined design is a perfect fit for modern, distributed EtherCAT architectures, allowing for efficient space utilization and superior performance in diverse environments.

Key Features

• Single-Channel Stepper Motor Output: Dedicated control for one stepper motor.
• High Rated Current: Delivers up to 5 A for demanding motor applications.
• Wide Supply Voltage Range: Operates efficiently with 24–50 V DC power supplies.
• Precision Microstepping Support: Ensures exceptionally smooth, vibration-free motor movements and fine positioning.
• Integrated Diagnostic and Feedback Functions: Provides real-time status and error reporting for enhanced system reliability and easier maintenance.
• Robust Electrical Isolation: 500 V isolation between I/O and bus system protects against electrical interference.
• Compact EtherCAT Terminal Design: Space-saving form factor ideal for DIN-rail mounting in control cabinets.
• Seamless TwinCAT Integration: Fully compatible with Beckhoff TwinCAT for advanced motion control programming and application development.

Technical Specifications

• Part Number: EL7041-1000
• Manufacturer: Beckhoff
• Function: Stepper motor output terminal
• Channels: 1
• Rated Current: 5 A
• Supply Voltage: 24–50 V DC
• Control Interface: EtherCAT
• Features: Microstepping, integrated diagnostics, feedback capabilities
• Electrical Isolation: 500 V (between I/O and bus system)
• Housing Width: 24 mm
• Mounting: DIN rail (compatible with the EtherCAT Terminal system)
• Operating Temperature: –25 °C to +60 °C

Applications

The versatility and high performance of the Beckhoff EL7041-1000 make it an indispensable component across a wide array of industrial and laboratory applications:

• Machine Automation: Provides precise control for stepper motors in various automated machinery.
• Packaging and Labeling Systems: Ensures accurate and repeatable positioning for efficient packaging and labeling processes.
• Robotics and Handling Equipment: Powers intricate movements in robotic arms and material handling solutions.
• Laboratory and Test Automation: Offers reliable and precise control for scientific instruments and experimental setups.
• Distributed EtherCAT I/O with Integrated Motion Control: Perfect for creating scalable and flexible automation systems where motion control is seamlessly integrated into the network.

Why Choose This Model?

The Beckhoff EL7041-1000 stands out as a superior choice for your motion control needs:

• Reliability and Performance: Delivers a robust 5 A output, ensuring dependable operation for a wide range of stepper motors.
• Unmatched Smoothness: Microstepping capability eliminates vibrations and jerks, resulting in exceptionally smooth and quiet motor operation.
• Space-Saving Design: Its compact DIN-rail form factor allows for efficient use of precious cabinet space, especially in crowded automation setups.
• Enhanced System Uptime: Integrated diagnostics provide crucial operational insights, helping to quickly identify and resolve potential issues, thereby minimizing downtime.
• Beckhoff Expertise: Backed by Beckhoff’s renowned and proven expertise in industrial automation and motion control, guaranteeing quality and innovation.
• Global Availability: Ready for worldwide shipping, ensuring you can access this critical component wherever your operations are located.

Order Now

Elevate your automation projects with the precision and reliability of the Beckhoff EL7041-1000 EtherCAT Stepper Motor Terminal. This essential component is available for immediate purchase and ships worldwide, ready to integrate into your advanced control systems. Don't compromise on performance—invest in Beckhoff quality today. Return to Beckhoff EL/ELM7xxx Compact Drive Technology for more options in compact drive technology, or explore our complete Beckhoff Category to discover the full range of innovative solutions.
