Beckhoff EL5101 incremental encoder terminal for accurate position and speed measurement, supporting RS422 signals in EtherCAT systems.

Beckhoff EL5101

$250.00
$250.00
Skip to product information

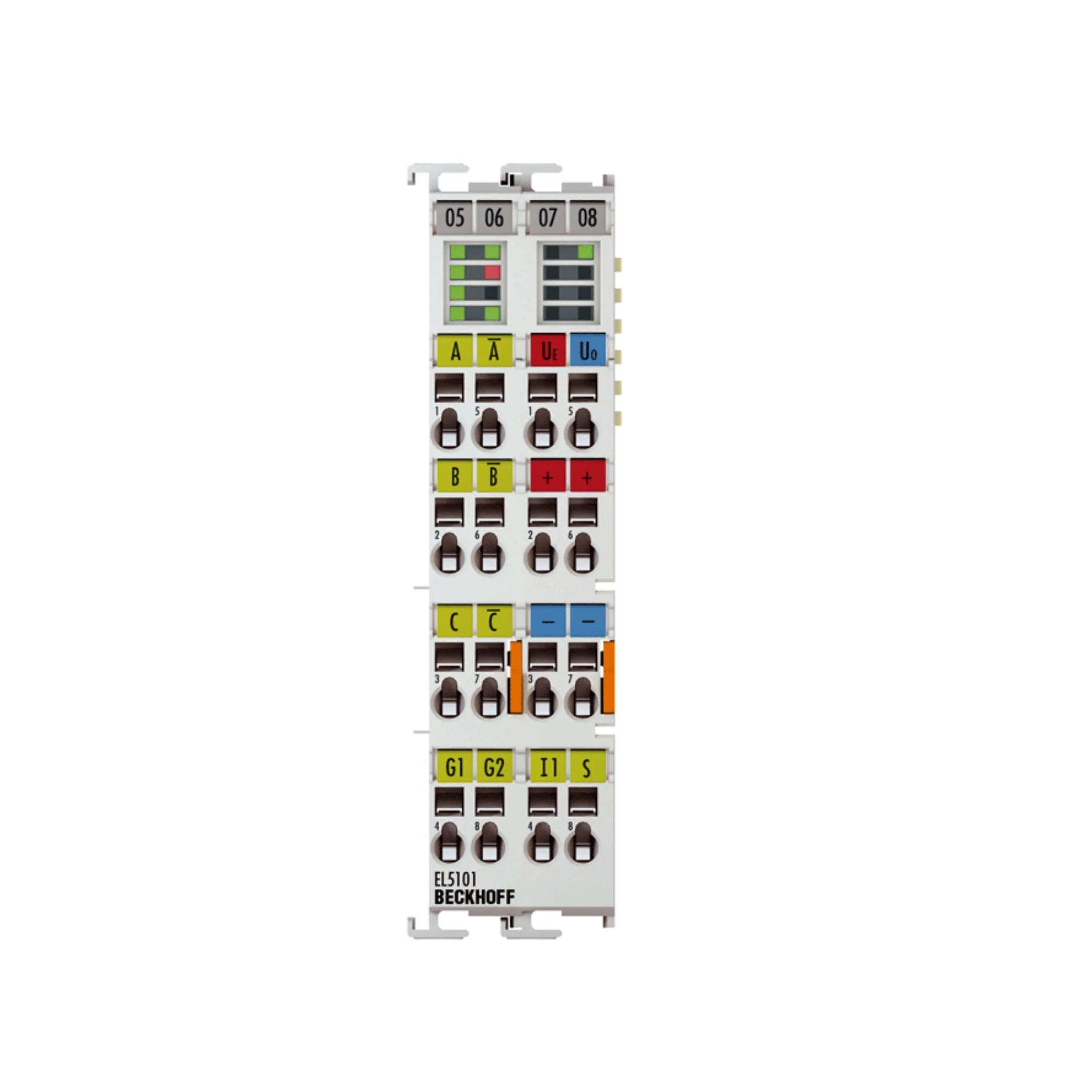

Beckhoff EL5101 incremental encoder terminal for accurate position and speed measurement, supporting RS422 signals in EtherCAT systems.
  • Beckhoff EL5101 incremental encoder terminal for accurate position and speed measurement, supporting RS422 signals in EtherCAT systems.
  • Beckhoff EL5101 incremental encoder terminal for accurate position and speed measurement, supporting RS422 signals in EtherCAT systems.
Beckhoff EL5101

Beckhoff EL5101

$250.00
$250.00

Overview

The Beckhoff EL5101 is an advanced 1-channel incremental encoder interface terminal, meticulously engineered to facilitate seamless integration of incremental encoders with RS422 differential inputs into high-performance EtherCAT-based control systems. This state-of-the-art terminal goes beyond basic position acquisition, expertly supporting A, B, and an optional C (zero) channel. This comprehensive signal support ensures unparalleled precision in the acquisition of position, speed, and direction data, making the EL5101 an indispensable component for a wide array of demanding motion control and industrial automation applications. Its compact form factor, coupled with exceptionally fast sampling rates and inherent compatibility with Beckhoff's TwinCAT automation software, positions the EL5101 as a robust and reliable solution for delivering high-resolution encoder feedback within real-time control environments.

Key Features

  • Single Encoder Input Channel: Dedicated to efficiently process signals from one incremental encoder, supporting A, B, and C (index) signals for comprehensive data acquisition.
  • Differential RS422 Input: Guarantees superior noise immunity and signal integrity, ensuring reliable data transmission even in electrically noisy industrial settings.
  • 24V Digital Input: Provides a dedicated input for latching or referencing applications, enhancing system flexibility and precision.
  • Compact EtherCAT Terminal: Designed for effortless integration into existing Beckhoff I/O infrastructures, optimizing space and simplifying installation.
  • Rapid & Accurate Position Acquisition: Delivers high-speed and precise position data, crucial for dynamic motion control systems.
  • Intuitive LED Indicators: Offers immediate visual feedback on channel status and diagnostic information, streamlining troubleshooting and system monitoring.

Technical Specifications

  • Model: EL5101
  • Encoder Type: Incremental (RS422 differential)
  • Signal Channels: A, B, C (index)
  • Input Frequency: Up to 1 MHz for high-speed applications.
  • Counter Resolution: 32-bit for exceptionally fine positional data.
  • Digital Input: 24V DC (for latching or reference functions).
  • Interface Type: EtherCAT for high-performance communication.
  • Connection Type: Spring-loaded terminals for secure and easy wiring.
  • Mounting: Standard DIN Rail for versatile installation.
  • Protection Rating: IP20, suitable for typical industrial environments.
  • Operating Temperature: -25°C to +60°C, ensuring robust operation across diverse conditions.

Applications

  • Motion Control & Robotics: Provides highly accurate feedback essential for the precise operation of servo systems and robotic arms.
  • Position & Speed Monitoring: Enables real-time acquisition and monitoring of encoder data for critical industrial processes.
  • Machine Automation: Facilitates the synchronized movement of axes and conveyors, improving overall machine efficiency and reliability.
  • Packaging & Printing Systems: Delivers precise encoder feedback for intricate motion sequences, ensuring consistency and quality in production.
  • SCADA & PLC Integration: Seamlessly compatible with TwinCAT and other EtherCAT-based systems, enhancing supervisory control and data acquisition capabilities.

Why Choose This Model?

The Beckhoff EL5101 stands out as an exceptional choice for engineers and system integrators seeking a superior incremental encoder interface. Its robust design, coupled with high-speed performance and precise data acquisition capabilities, ensures reliable operation in the most demanding industrial environments. The EL5101's inherent compatibility with Beckhoff's expansive EtherCAT ecosystem guarantees simple setup and profound scalability within your existing infrastructure. By leveraging its advanced features, you can achieve unparalleled accuracy in motion and positioning applications, leading to enhanced operational efficiency and product quality. Invest in the EL5101 for a solution that truly empowers your automation systems with intelligent, real-time feedback.

Order Now

Elevate your automation capabilities with the Beckhoff EL5101. Benefit from fast shipping and worldwide delivery options to get your terminal quickly. Explore our full range of Beckhoff EL/ELM7xxx Compact Drive Technology and other Beckhoff products to complete your system.
