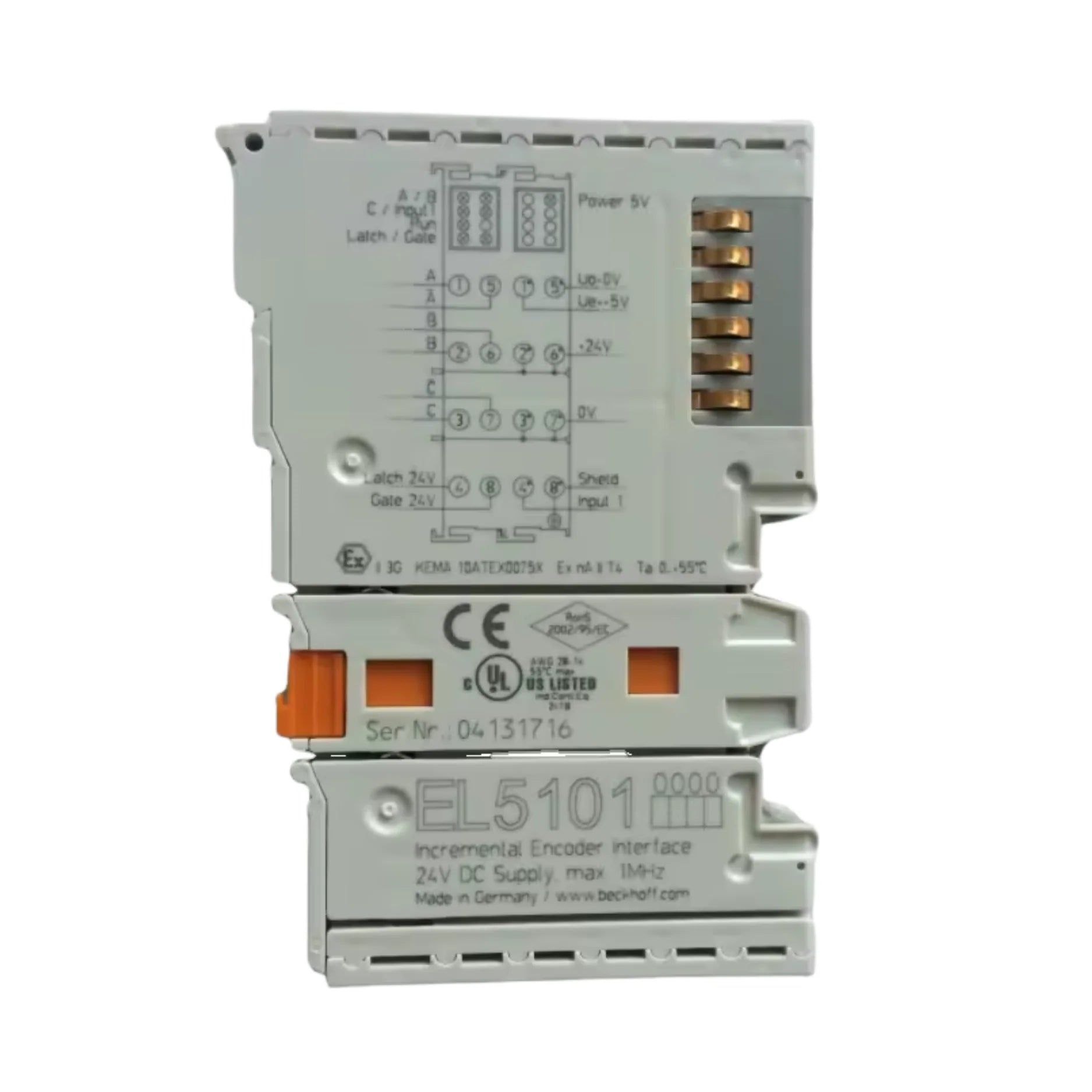

Beckhoff EL5101-0010

Overview

The Beckhoff EL5101-0010 is a high-performance 1-channel incremental encoder interface terminal specifically engineered for seamless integration into EtherCAT systems. This robust component is designed to precisely capture and transmit critical position, direction, and speed information from incremental encoders, making it an indispensable tool for advanced automation and motion control applications. Leveraging the unparalleled real-time capabilities of EtherCAT communication, coupled with comprehensive diagnostic features, the EL5101-0010 ensures reliable and accurate motion feedback, even in the most demanding industrial environments. Its compact design and advanced functionalities make it a superior choice for optimizing system performance and precision.

Key Features

• Single-Channel Incremental Encoder Interface: Dedicated input for efficient and precise signal acquisition.
• ABN Encoder Support: Compatible with ABN encoders utilizing differential signals for enhanced noise immunity and accuracy.
• Comprehensive Data Capture: Accurately acquires position, direction, and velocity data in real-time.
• Compact 12 mm EtherCAT Housing: Space-saving design for high-density control cabinet installations.
• Integrated 24 V DC Inputs: Dedicated inputs for reference marks and latching functionalities, ensuring reliable operation.
• Diagnostic LEDs: Visual indicators for quick and easy channel and status monitoring, simplifying troubleshooting.
• Seamless TwinCAT Integration: Effortless integration with Beckhoff TwinCAT software for advanced motion control tasks and simplified configuration.

Technical Specifications

• Part Number: EL5101-0010
• Manufacturer: Beckhoff
• Channels: 1 incremental encoder input
• Supported Encoders: ABN, differential signals
• Resolution: Up to 32-bit counter, providing exceptional precision.
• Inputs: 24 V DC for reference and latching functions.
• Housing Width: 12 mm, optimizing panel space.
• Bus System: EtherCAT, ensuring high-speed and real-time communication.
• Mounting: Designed for DIN rail mounting (EtherCAT Terminal system) for easy installation.
• Operating Temperature: –25 °C to +60 °C, suitable for a wide range of industrial conditions.

Applications

The Beckhoff EL5101-0010 offers versatile applications across various sectors requiring precise motion control and feedback:

• Motion Feedback for Servo and Stepper Motors: Essential for closed-loop control systems, ensuring accurate motor positioning and speed.
• Robotics and CNC Machinery: Provides the fundamental data for precise robotic arm movement and intricate CNC machine operations.
• Packaging and Printing Equipment: Enables high-speed and accurate synchronization of various machine parts for optimal production.
• Position and Speed Monitoring in Automation Lines: Critical for maintaining product quality and operational efficiency in automated manufacturing processes.
• Real-Time Synchronization in EtherCAT Systems: Facilitates coordinated multi-axis motion and complex control strategies within EtherCAT networks.

Why Choose This Model?

The EL5101-0010 stands out as a superior choice for several compelling reasons:

• Unmatched Precision: Delivers highly accurate encoder feedback directly within your EtherCAT network, crucial for applications demanding tight tolerances.
• Space Efficiency: Its compact and modular design significantly saves valuable cabinet space, allowing for more streamlined and organized control systems.
• Reliable Inputs: Features dependable 24 V DC inputs for reference signals, minimizing potential errors and maximizing system uptime.
• Seamless Integration: Boasts real-time integration capabilities with Beckhoff TwinCAT software, simplifying configuration, programming, and diagnostics.
• Cost-Effective Solution: Offers an economical yet highly effective solution for advanced position and motion tracking requirements, providing excellent value without compromising performance.

Order Now

Elevate your automation systems with the precision and reliability of the Beckhoff EL5101-0010 incremental encoder interface terminal. This essential component is readily available and ready to ship worldwide to meet your project demands. Invest in Beckhoff's proven technology for superior motion control and system performance today. For further exploration of Beckhoff's innovative solutions, return to Beckhoff EL/ELM7xxx Compact Drive Technology or navigate back to the main Beckhoff Category.
