Beckhoff EL5002

Overview

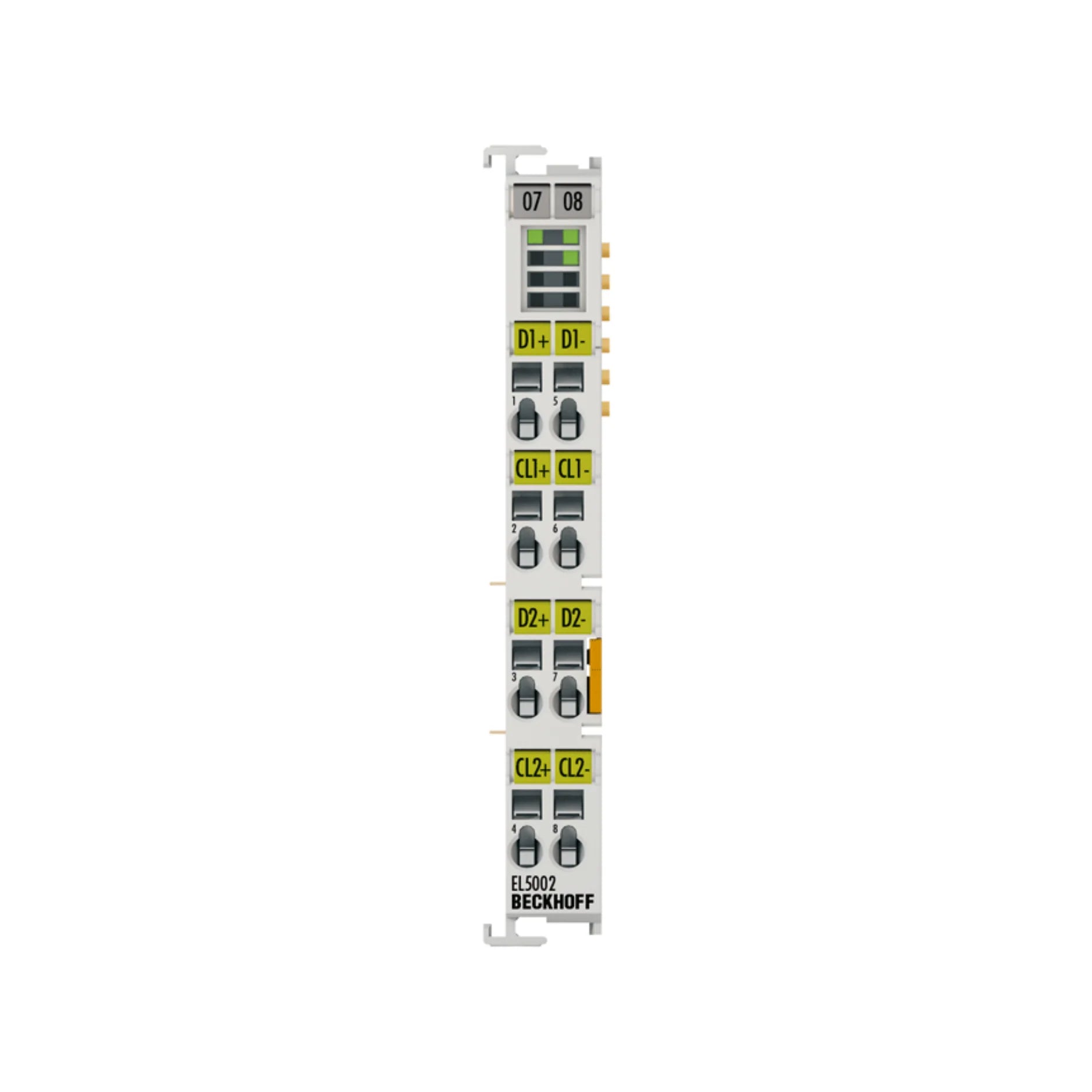

The Beckhoff EL5002 is a cutting-edge 2-channel SSI encoder interface EtherCAT Terminal, meticulously engineered to provide unparalleled precision in acquiring position values from absolute encoders utilizing the Synchronous Serial Interface (SSI) protocol. This advanced terminal is specifically designed for integration into demanding motion control applications, ensuring seamless and highly accurate synchronization within EtherCAT-based systems. With its robust capabilities, the EL5002 empowers industrial automation solutions to achieve superior performance and reliability, making it an indispensable component for sophisticated control environments.

Engineered by Beckhoff, a leader in automation technology, the EL5002 stands out for its exceptional data acquisition capabilities and robust design. It facilitates precise and real-time data exchange, critical in applications where even the slightest discrepancy can impact performance. This terminal is not just a gateway for encoder data; it's a cornerstone for building highly responsive and accurate industrial machinery.

Key Features

• Dual SSI Encoder Input Channels: Equipped with two independent channels, the EL5002 offers versatile connectivity for managing multiple encoders simultaneously or providing redundancy for critical applications.
• Absolute Encoder Compatibility: Seamlessly integrates with absolute encoders that employ the SSI protocol, ensuring consistent and drift-free position feedback from the moment of power-on.
• High-Resolution Data Acquisition: Capable of capturing position data with an impressive resolution of up to 32 bits, guaranteeing extremely fine granularity and accuracy for the most demanding control tasks.
• Electrical Isolation: Features robust electrical isolation between the field and system bus, enhancing system stability, protecting components from electrical noise, and ensuring reliable data integrity in harsh industrial environments.
• Diagnostic LEDs: Integrated diagnostic light-emitting diodes (LEDs) provide at-a-glance status and channel monitoring, simplifying troubleshooting and maintenance procedures, and minimizing downtime.
• Compact DIN-Rail Design: Its space-saving design allows for flexible and efficient integration into control cabinets, optimizing panel real estate and streamlining system architecture on standard DIN rails.

Technical Specifications

• Beckhoff Code: EL5002
• Type: EtherCAT Terminal
• Channels: 2 SSI encoder inputs
• Signal Type: SSI (Synchronous Serial Interface)
• Resolution: Up to 32 bits, providing exceptional detail for position sensing.
• Clock Frequency: Configurable from 100 Hz to 2 MHz, offering flexibility for various encoder types and application speeds.
• Electrical Isolation: Yes, ensures separation of field and system bus for enhanced reliability and noise immunity.
• Current Consumption (E-bus): Typically 220 mA, indicating efficient power usage within your EtherCAT system.
• Operating Temperature: –25 °C to +60 °C, guaranteeing reliable performance across a wide range of industrial climates.
• Mounting: Designed for easy and secure DIN rail installation.
• Certifications: CE, UL compliant, affirming adherence to stringent safety and quality standards for global deployment.

Applications

• High-Precision Motion Control: Essential for systems requiring exacting control over movement, such as in semiconductor manufacturing or intricate assembly lines.
• Robotics and Industrial Automation: Provides critical position feedback for robotic arms, automated guided vehicles (AGVs), and other automated machinery, enhancing their accuracy and repeatability.
• CNC Machinery: Directly contributes to the precision of computer numerical control (CNC) machines, ensuring accurate tool positioning and superior machining quality.
• Position and Feedback Acquisition in Drives: Integrates seamlessly with drive systems to obtain highly reliable position and speed feedback, crucial for closed-loop control.
• Absolute Encoder Integration in EtherCAT Networks: Serves as a vital link for incorporating absolute encoders into high-speed EtherCAT communication networks, leveraging the benefits of an absolute position reference.

Why Choose This Model?

The Beckhoff EL5002 stands as a testament to German engineering excellence, offering a robust and highly efficient solution for absolute encoder integration. Its dual-channel capability provides significant operational flexibility, allowing for the monitoring of two independent axes or the implementation of redundant systems for enhanced safety and reliability. The impressive 32-bit resolution ensures that even the most subtle changes in position are accurately detected, which is paramount for achieving the highest levels of precision in any motion application.

Furthermore, the EL5002’s electrical isolation feature is a critical advantage, safeguarding your control system from electrical interference common in industrial settings, thereby extending the lifespan of your equipment and ensuring uninterrupted operation. As part of Beckhoff’s expansive and advanced automation ecosystem, this terminal benefits from seamless compatibility and integrated diagnostic capabilities, simplifying setup and maintenance. By choosing the EL5002, you are investing in a proven technology that delivers superior performance, reliability, and precision, backed by Beckhoff’s reputation for innovation and quality.

Order Now

Elevate the accuracy and efficiency of your automation and motion control systems with the Beckhoff EL5002, the definitive 2-channel SSI encoder interface EtherCAT Terminal for high-accuracy position feedback. Experience the difference that precision engineering can make in your industrial applications. Don't miss out on optimizing your processes—integrate the EL5002 today.

For further exploration of related Beckhoff products, please consider the Beckhoff EL/ELM7xxx Compact Drive Technology range, or navigate back to the entire Beckhoff Category to discover more innovative solutions.
