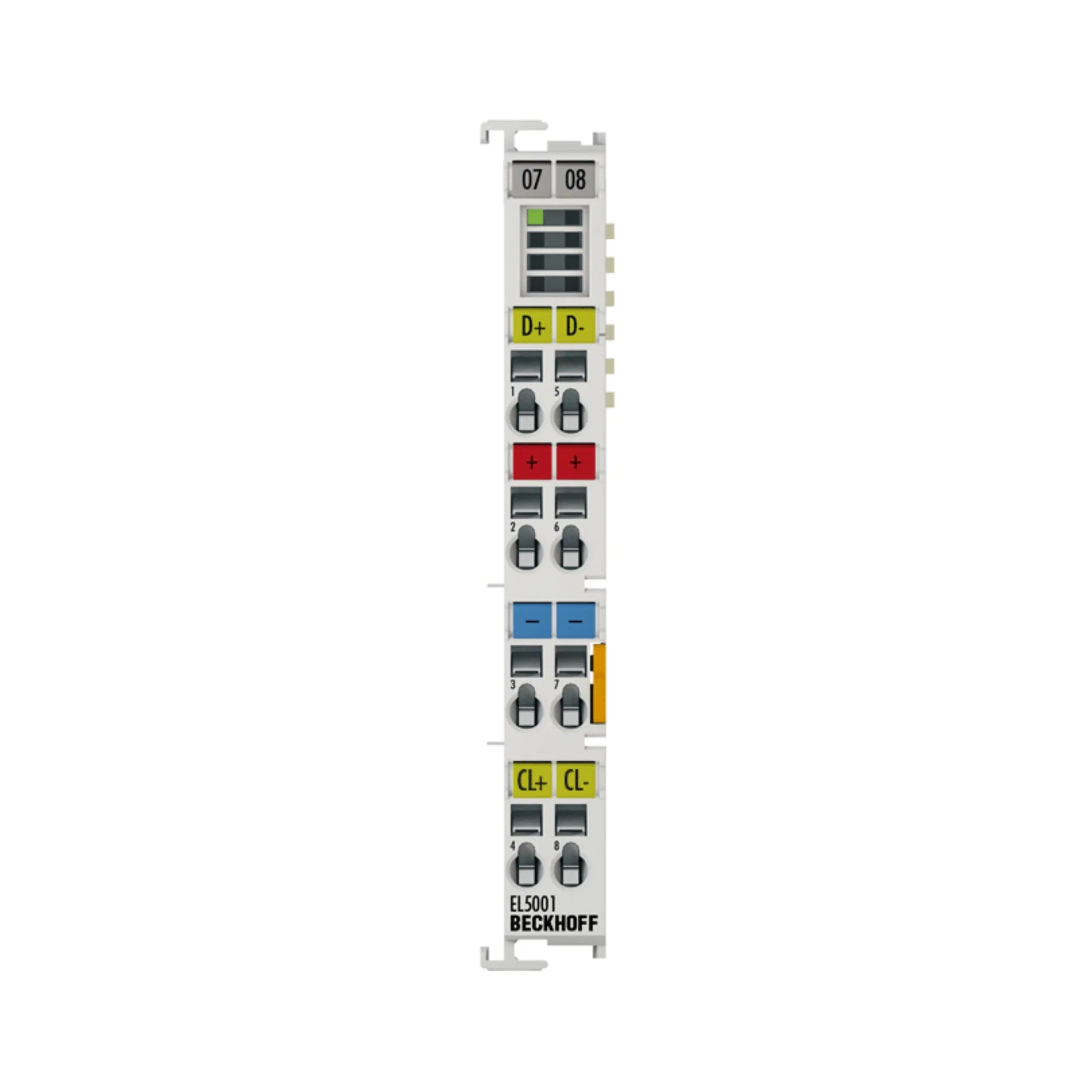

Beckhoff EL5001

Overview

The Beckhoff EL5001 is a state-of-the-art EtherCAT Terminal meticulously engineered to provide a high-performance interface for Synchronous Serial Interface (SSI) encoders. This critical component empowers automation systems with exceptionally accurate position measurement, forming the backbone for sophisticated motion and positioning applications. Designed for seamless integration into existing EtherCAT networks, the EL5001 boasts a single input channel, ensuring precise data acquisition and dependable operation across various industrial environments. Its robust construction and intelligent features make it an ideal choice for demanding control tasks where accuracy and reliability are paramount.

Key Features

• Dedicated EtherCAT Terminal for SSI Encoders: Specifically designed for direct connection of SSI encoders, simplifying system architecture.
• 1-Channel SSI Interface: Provides a singular, high-precision input for SSI encoder signals, ensuring accurate data capture.
• Broad SSI Protocol and Clock Rate Support: Compatible with a wide array of SSI protocols and clock frequencies, offering versatility for diverse encoder types.
• Compact and Modular Design: Its space-saving form factor allows for efficient panel utilization and flexible system expansion within EtherCAT terminal blocks.
• High-Precision Position Data Acquisition: Delivers extremely accurate position values, crucial for applications requiring fine motor control and exact positioning.
• Integrated Diagnostics and Monitoring: Features built-in diagnostic capabilities that enhance operational safety and simplify troubleshooting, minimizing downtime.
• Reliable Performance in Motion Applications: Engineered for sustained, stable operation in dynamic and high-stress motion control environments.

Technical Specifications

• Beckhoff Code: EL5001
• Series: EtherCAT Terminals
• Channels: 1 input (SSI encoder)
• Interface: SSI (Synchronous Serial Interface)
• Data Width: Up to 32-bit, accommodating a broad range of encoder resolutions.
• Bus System: EtherCAT, ensuring high-speed, deterministic communication.
• Protection Rating: IP20, suitable for typical industrial control cabinet installations.
• Power Supply: 24 V DC (via EtherCAT), streamlining power distribution and reducing wiring complexity.
• Operating Temperature: –25 °C to +60 °C, guaranteeing reliable performance in challenging thermal conditions.
• Certifications: CE, UL, confirming compliance with international safety and quality standards.

Applications

• Advanced Motion Control Systems: Essential for precise control in multi-axis motion applications found in robotics and automation.
• High-Accuracy Position Measurement: Provides the foundation for critical position feedback in a vast array of industrial processes.
• Robotics and CNC Machines: Ensures robotic arms and CNC tools achieve exact movements and repeatable results.
• Conveyor and Material Handling Systems: Optimizes the speed, alignment, and positioning of goods on automated conveyor lines.
• Packaging and Printing Equipment: Guarantees precise synchronization and positioning for high-speed packaging and printing operations.
• Assembly and Inspection Machines: Facilitates accurate component placement and precise measurement for quality control.

Why Choose This Model?

The Beckhoff EL5001 stands out as a superior choice for industrial automation due to its unwavering commitment to precision and reliability. By offering accurate position acquisition through its dedicated SSI encoder interface, it ensures that your motion control systems operate with unparalleled exactitude. The seamless EtherCAT-based integration simplifies installation and configuration, drastically reducing setup times and enabling rapid deployment. Its compact and space-saving design is a significant advantage, particularly in control cabinet environments where real estate is at a premium. Furthermore, choosing the EL5001 means investing in the trusted Beckhoff reliability, a brand synonymous with robust and high-performing components for the most demanding motion applications. This specific model is a testament to Beckhoff's engineering excellence, providing a future-proof solution for your automation needs.

Order Now

Elevate your industrial automation capabilities with the Beckhoff EL5001 EtherCAT Terminal. Discover the benefits of efficient, reliable, and precise motion control tailored for demanding industrial tasks. Ensure seamless integration and superior performance in your systems. Add the EL5001 to your inventory today and experience the difference that Beckhoff quality makes.
