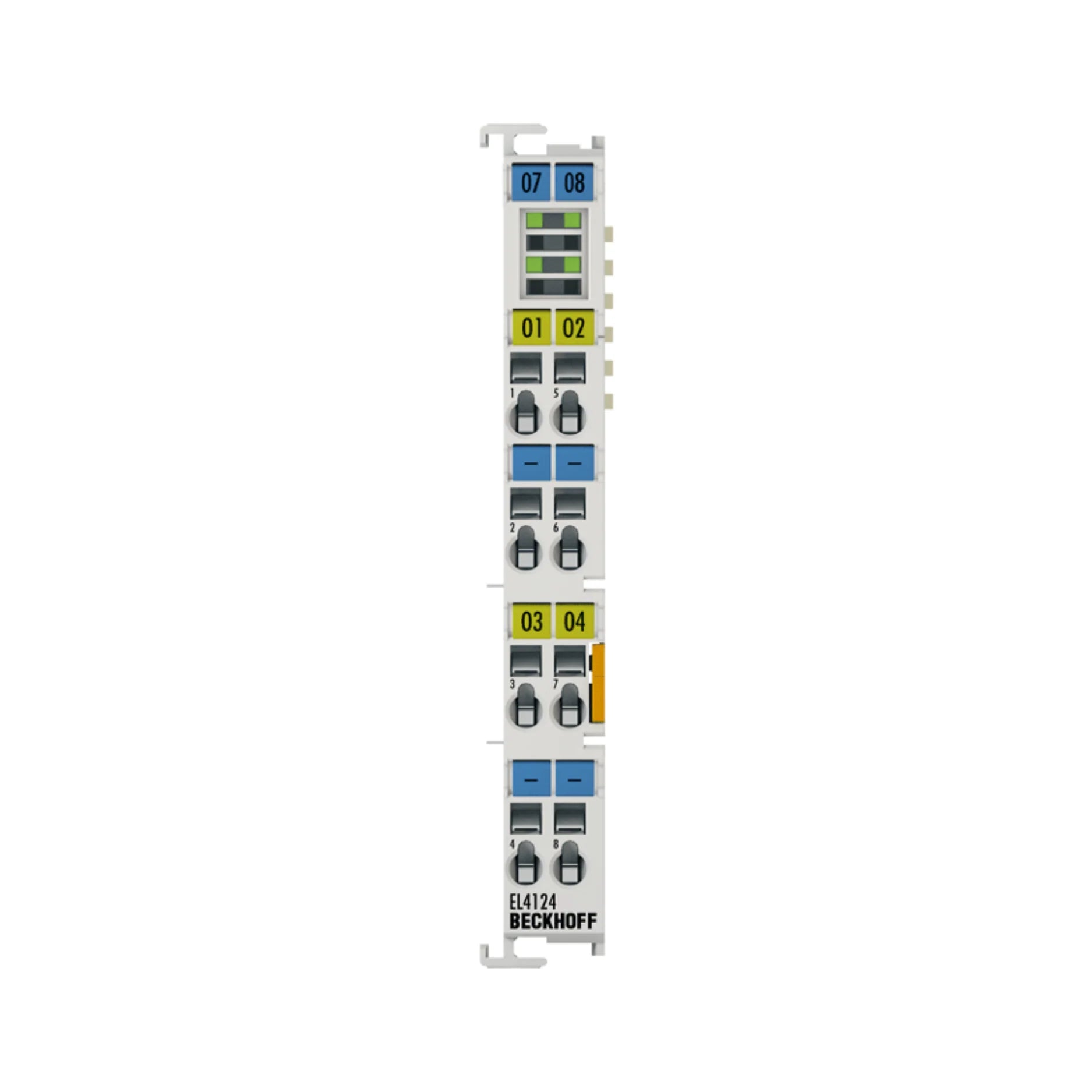

Beckhoff EL4124

Overview

The Beckhoff EL4124 is a high-performance 4-channel analog output terminal engineered for demanding industrial automation and control applications. Designed to deliver exceptionally precise output signals in the ±10 V range with a 12-bit resolution, this EtherCAT Terminal is the ideal solution for accurately controlling actuators, modulating setpoints, and integrating seamlessly into complex measurement and control systems. Its robust design and advanced features ensure reliable and accurate signal generation, empowering engineers and system integrators to achieve optimal performance in their industrial processes.

As a core component of the Beckhoff EtherCAT I/O system, the EL4124 offers unparalleled flexibility and ease of integration. Whether you are managing sophisticated motion control, precise process regulation, or intricate machinery, this analog output terminal provides the precision and dependability you need for critical operations.

Key Features

• Four Independent Analog Output Channels: Provides versatile control over multiple devices or setpoints simultaneously.
• Wide Output Voltage Range: Generates signals within ±10 V, catering to various industrial control requirements.
• High 12-Bit Resolution: Ensures exceptionally accurate and granular control of output signals, minimizing errors and maximizing precision.
• Integrated Electrical Isolation: Separates field and system bus, enhancing system stability and protecting against interference.
• Diagnostic LEDs: Offer at-a-glance status monitoring for quick and efficient troubleshooting, reducing downtime.
• Compact DIN-Rail Terminal Design: Optimizes cabinet space and simplifies installation within standard industrial enclosures.
• Seamless EtherCAT Integration: Fully compatible with the Beckhoff EtherCAT system for high-speed, deterministic communication.

Technical Specifications

• Beckhoff Code: EL4124
• Type: Analog Output Terminal
• Channels: 4
• Output Voltage Range: ±10 V
• Resolution: 12-bit
• Output Current per Channel: up to 10 mA
• Current Consumption (from bus): typ. 180 mA
• Electrical Isolation: Yes (between field and system bus)
• Operating Temperature: 0 °C to +55 °C
• Mounting: 35 mm DIN rail
• Certifications: CE, UL

Applications

The versatility and precision of the Beckhoff EL4124 make it an essential component across a wide spectrum of industrial applications:

• Actuator and Drive Control: Provides precise voltage commands for controlling industrial motors, valves, and other electromechanical actuators.
• Setpoint Generation for Process Control: Accurately sets desired values for temperature, pressure, flow, and other critical process parameters.
• Advanced Automation and Measurement Systems: Integrates into complex systems requiring reliable analog signal generation for data acquisition and control.
• Industrial Machine Control: Facilitates the precise operation and coordination of various machine components and subsystems.
• Modular Beckhoff I/O Integration: Extends the capabilities of existing Beckhoff EtherCAT systems, offering flexible expansion for analog outputs.
• Robotics and Motion Control: Enables finely tuned control signals for robotic manipulators and other precision motion systems.

Why Choose This Model?

The Beckhoff EL4124 stands out as a superior choice for several compelling reasons, offering significant advantages for your automation infrastructure:

• Unparalleled Precision: With its 12-bit resolution and stable ±10 V output, the EL4124 ensures that your control signals are exceptionally accurate, leading to enhanced system performance and reliability.
• Robust Industrial Design: Engineered to withstand harsh industrial environments, featuring electrical isolation and a wide operating temperature range for consistent performance.
• Seamless Integration: As part of the Beckhoff EtherCAT ecosystem, this terminal offers plug-and-play compatibility, simplifying setup and reducing commissioning time. Its compact DIN-rail design further streamlines installation.
• Versatile Application Scope: From basic control tasks to advanced process automation, the EL4124 provides the flexibility to meet diverse application needs, supporting a broad array of industrial equipment.
• Brand Reliability: Beckhoff is renowned for its innovative and high-quality automation solutions. Choosing the EL4124 means investing in a product backed by a legacy of engineering excellence and dependable performance.

Order Now

Elevate the precision and efficiency of your industrial automation systems with the Beckhoff EL4124 analog output terminal. Experience the difference that reliable, high-resolution signal generation can make in your operations. Invest in the EL4124 today to optimize your control processes and unlock new levels of performance.

Enhance your automation system with the Beckhoff EL4124, the reliable analog output terminal for precise signal generation.
