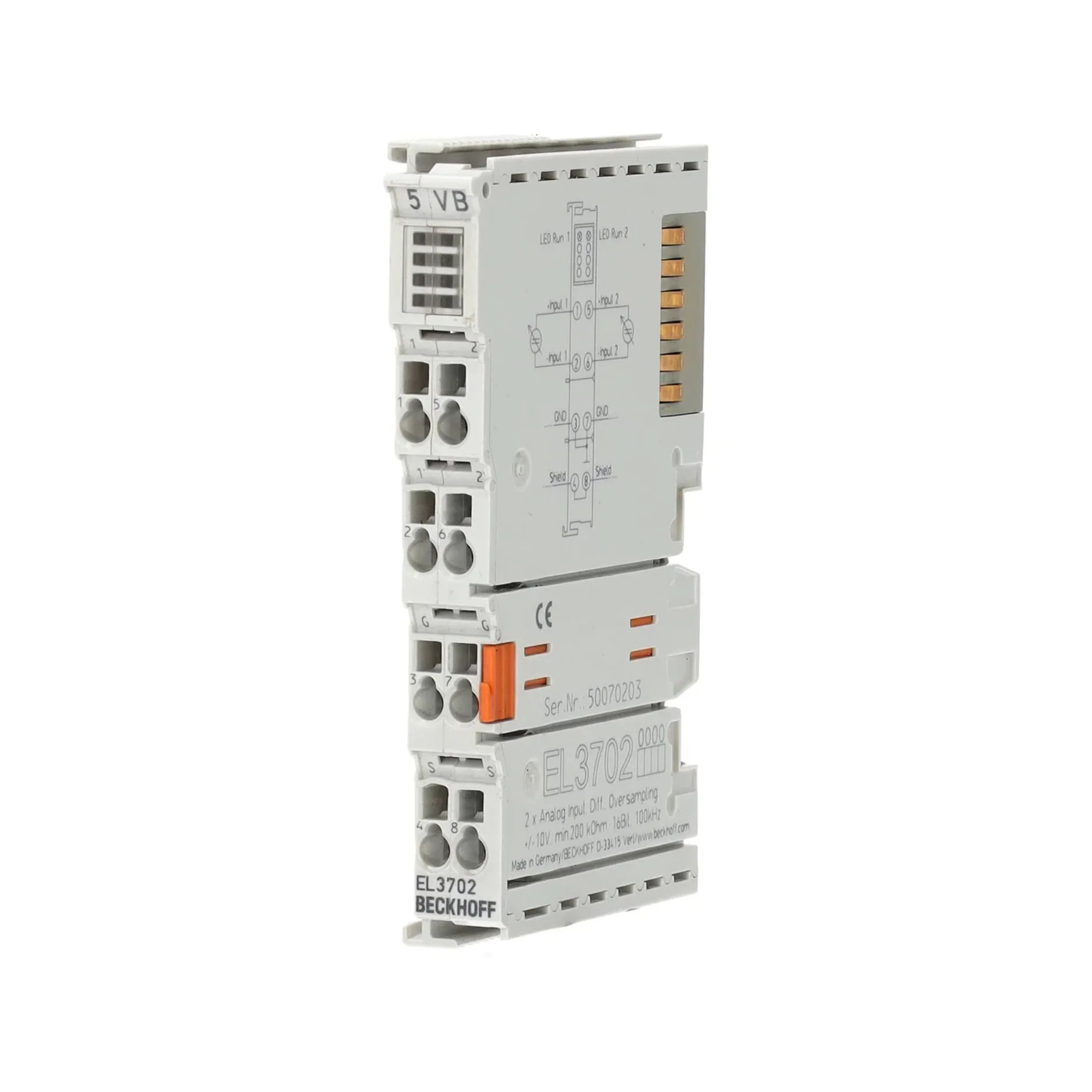

Beckhoff EL3702

Overview

The Beckhoff EL3702 represents a pinnacle in EtherCAT Terminal technology, meticulously engineered for the rapid and precise acquisition of analog signals. This advanced 2-channel analog input module is designed to integrate seamlessly into sophisticated industrial automation systems, offering unparalleled accuracy and reliability. With its capacity to handle differential inputs within a ±10 V range and an impressive sampling rate of up to 10 kHz per channel, the EL3702 ensures that even the most dynamic processes are monitored with high-resolution clarity. Its robust design and sophisticated internal diagnostics make it an indispensable component for applications demanding rigorous performance and data integrity.

Key Features

• EtherCAT Terminal for Analog Input: Seamless integration into high-speed EtherCAT networks.
• 2 Differential Channels: Provides isolated, precise measurements, minimizing common-mode interference.
• Wide Input Range: Supports a versatile ±10 V input range, accommodating various sensor types.
• High Sampling Rate: Achieves up to 10 kHz per channel, capturing fast-changing signals with exceptional detail.
• Compact and Modular Design: Facilitates flexible system configurations and optimizes cabinet space.
• Integrated Diagnostics and Monitoring: Enhances system reliability through proactive fault detection and status reporting.
• High Precision and Low Noise: Delivers accurate and clean data for critical control and monitoring tasks.
• 16-bit Resolution: Ensures fine-grained measurement and superior data quality.
• IP20 Protection Rating: Offers protection against solid objects, suitable for industrial environments.
• Wide Operating Temperature: Functions reliably across a broad range from –25 °C to +60 °C.
• Certified Compliance: CE and UL certifications confirm adherence to international safety and quality standards.

Technical Specifications

• Beckhoff Code: EL3702
• Series: EtherCAT Terminals
• Channels: 2 (differential inputs)
• Input Range: ±10 V
• Sampling Rate: 10 kHz per channel
• Resolution: 16-bit
• Bus System: EtherCAT
• Protection Rating: IP20
• Operating Temperature: –25 °C to +60 °C
• Certifications: CE, UL

Applications

The Beckhoff EL3702's advanced capabilities make it ideal for a diverse array of demanding industrial applications, including:

• Industrial Automation: Enhancing control systems with high-accuracy data feedback.
• Data Acquisition Systems: Serving as a core component for robust and precise signal collection.
• Motion and Drive Control Monitoring: Providing critical insights for optimizing performance and safety.
• Test and Measurement Setups: Ensuring exact data capture for R&D and quality assurance.
• Process Control Environments: Maintaining tight control over critical parameters in manufacturing and processing.
• Energy Monitoring: Accurately measuring power consumption and generation.
• Environmental Monitoring: Collecting precise sensor data in various outdoor and indoor conditions.
• Robotics: Integrating sensor feedback for advanced robotic control and navigation.

Why Choose This Model?

The Beckhoff EL3702 stands out as the preferred choice for engineers and system integrators seeking an uncompromising solution for analog signal acquisition:

• High-Speed, High-Accuracy Signal Acquisition: Delivers unmatched performance in capturing dynamic analog signals.
• Flexible EtherCAT-Based Integration: Offers seamless and expandable connectivity within high-performance networks.
• Compact and Modular I/O Design: Maximizes space efficiency while allowing for future system expansion.
• Backed by Beckhoff Engineering Reliability: Benefit from the renowned quality, durability, and innovation synonymous with the Beckhoff brand, ensuring long-term operational stability and peace of mind.
• Enhanced Diagnostic Capabilities: Minimizes downtime and simplifies troubleshooting, leading to increased operational efficiency.
• Future-Proof Technology: Built on the open and widely adopted EtherCAT standard, ensuring compatibility and longevity.

Order Now

Elevate your industrial automation and data acquisition capabilities with the Beckhoff EL3702 EtherCAT Analog Input Module. Experience the synergy of high-speed performance, exceptional precision, and Beckhoff's legendary reliability. Invest in a solution that is powerful, modular, and meticulously engineered to excel in the most demanding industrial environments. Click to order your EL3702 today and ensure your systems operate with the highest level of accuracy and efficiency.
