Beckhoff EL3318

Overview

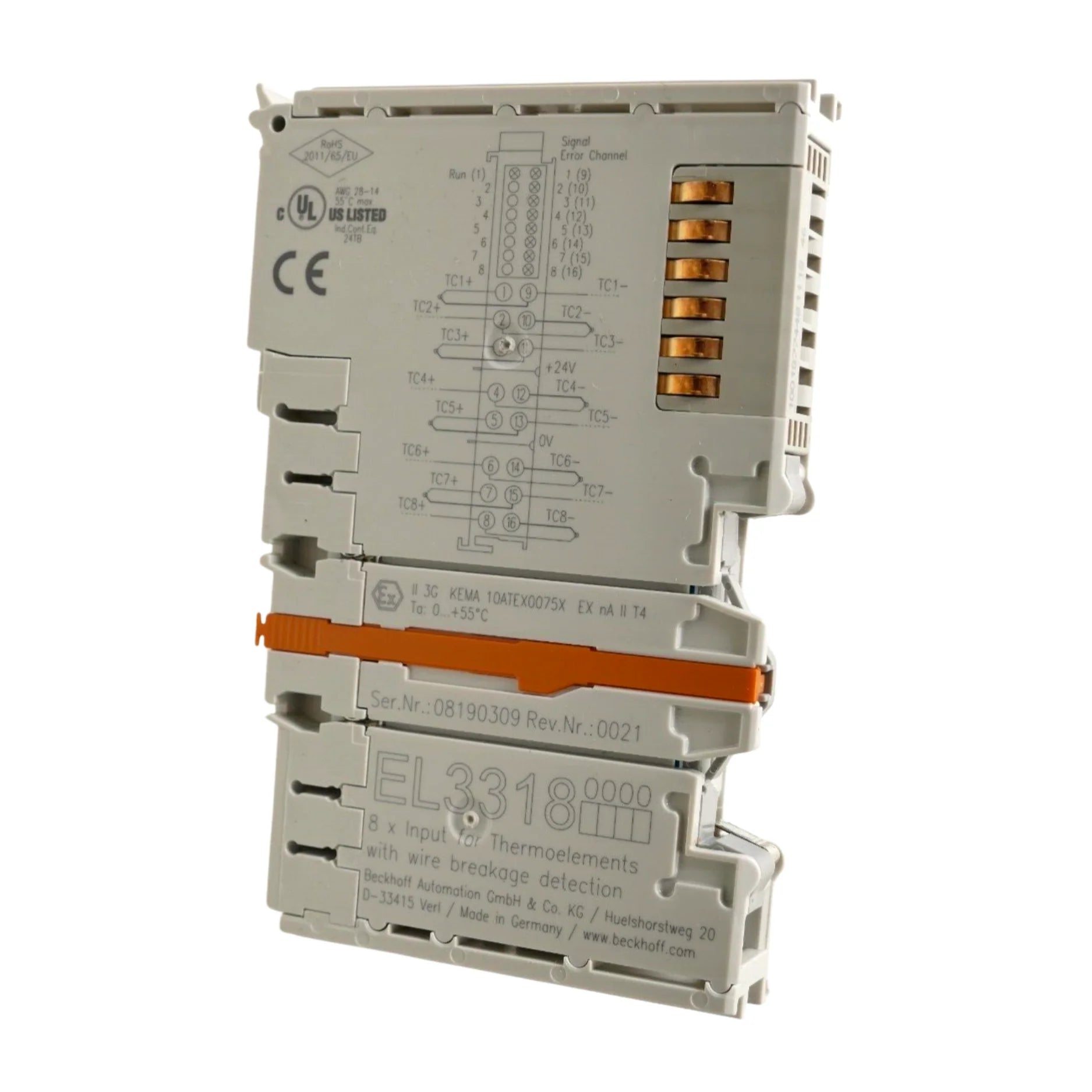

The Beckhoff EL3318 is a high-performance, 8-channel analog input terminal meticulously engineered for precise thermocouple temperature measurement within demanding industrial automation settings. This innovative EtherCAT terminal delivers exceptional accuracy and reliability, making it an indispensable component for critical process control, comprehensive condition monitoring, and advanced data acquisition applications. Supporting a wide array of thermocouple types, the EL3318 ensures versatile compatibility across diverse temperature sensing requirements. Its integrated cold-junction compensation circuitry, coupled with ultrafast EtherCAT real-time communication, guarantees unparalleled measurement integrity and instantaneous data transfer, empowering robust and responsive control systems.

Key Features

• 8-Channel Thermocouple Input: High-density input for simultaneous monitoring of multiple temperature points.
• Universal Thermocouple Compatibility: Supports all common thermocouple types, including K, J, T, N, E, B, R, and S, offering broad application flexibility.
• Integrated Cold-Junction Compensation (CJC): Advanced, per-channel block CJC ensures superior measurement accuracy by automatically compensating for reference junction temperature fluctuations.
• High-Precision 16-bit Signal Conversion: Delivers exceptional accuracy and resolution for capturing even the most subtle temperature variations.
• Compact 24 mm EtherCAT I/O Housing: Space-saving design for efficient panel integration while maintaining robust industrial-grade construction.
• Diagnostic LEDs: Intuitive status and diagnostic LEDs for each channel provide real-time operational feedback and simplify troubleshooting.
• Seamless TwinCAT Integration: Effortless configuration and programming within the Beckhoff TwinCAT automation software environment, streamlining system development.
• Real-time EtherCAT Communication: Guarantees deterministic and high-speed data exchange for critical control loops and synchronized operations.

Technical Specifications

• Part Number: EL3318
• Manufacturer: Beckhoff
• Channels: 8 analog inputs specifically designed for thermocouples.
• Signal Types: K, J, T, N, E, B, R, S
• Resolution: 16-bit
• Cold-Junction Compensation: Integrated per channel block
• Isolation: 500 V (I/O to bus system) for enhanced system protection and signal integrity.
• Housing Width: 24 mm
• Mounting: DIN rail (EtherCAT Terminal system)
• Operating Temperature: –25 °C to +60 °C, ensuring reliable operation in harsh industrial environments.

Applications

• Multi-Channel Temperature Monitoring: Ideal for systems requiring simultaneous temperature acquisition from numerous sensors.
• Process Automation and Control: Essential for maintaining precise temperature setpoints in manufacturing, chemical, and pharmaceutical processes.
• Industrial Ovens, Furnaces, and Kilns: Ensures accurate temperature profiling and control for thermal processing applications.
• Building Automation and HVAC Systems: Enhances energy efficiency and comfort through precise environmental temperature management.
• Laboratory and Test Bench Environments: Provides reliable data for research, development, and quality assurance testing.
• Food and Beverage Industry: Critical for temperature regulation in critical steps like pasteurization and sterilization.

Why Choose This Model?

The Beckhoff EL3318 stands out as an exceptional choice for any application demanding high-density, accurate, and real-time thermocouple temperature measurement. Its unparalleled combination of 8-channel input within an ultra-compact 24 mm housing makes it a space-efficient powerhouse. The meticulously integrated cold-junction compensation ensures that your temperature readings are consistently precise, eliminating errors often associated with simpler solutions. With its seamless integration into the EtherCAT ecosystem and TwinCAT software, the EL3318 offers rapid deployment and simplified engineering, reducing overall system costs and development time. This terminal provides a robust, cost-effective, and highly reliable solution for multi-point temperature monitoring, delivering critical data with the speed and accuracy required for modern industrial automation.

Order Now

Elevate your temperature measurement capabilities with the Beckhoff EL3318 EtherCAT 8-channel thermocouple input terminal. This high-precision module is readily available to enhance your industrial automation systems and ships worldwide. Experience the reliability and performance that only Beckhoff can deliver. Secure your EL3318 today and optimize your process control and monitoring applications.
