Beckhoff EL3214

Overview

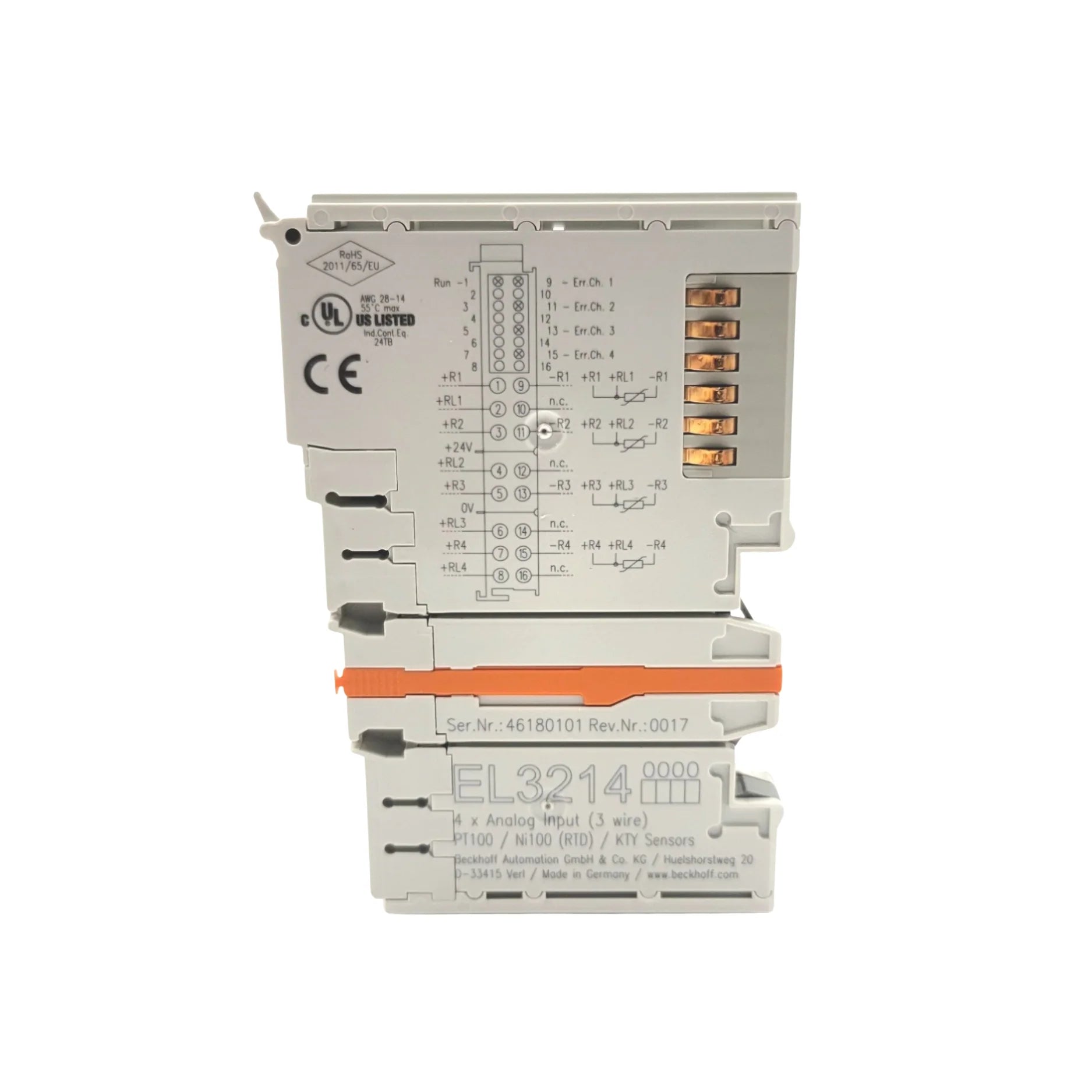

The Beckhoff EL3214 is a high-performance 4-channel analog input terminal meticulously engineered for seamless integration into EtherCAT I/O systems. Designed to facilitate precise temperature acquisition, this terminal directly connects to a wide array of RTD (Resistance Temperature Detector) sensors, including Pt100, Pt1000, Ni100, and Ni1000 types. With its exceptional 16-bit resolution and robust electrical isolation, the EL3214 guarantees accurate and reliable temperature readings, making it an indispensable component for demanding industrial automation applications worldwide. Its compact design and advanced features ensure optimal performance and simplified integration within your existing infrastructure.

Key Features

• 4 RTD Analog Input Channels: Provides ample connectivity for multiple temperature sensing points.
• Versatile Sensor Compatibility: Supports a broad range of RTD sensors, including Pt100, Pt1000, Ni100, and Ni1000.
• Flexible Connection Methods: Accommodates 2-wire, 3-wire, and 4-wire connection configurations for enhanced accuracy and adaptability.
• High-Resolution Measurement: Ensures precise temperature readings with exceptional 16-bit resolution.
• Electrical Isolation: Offers superior protection and signal integrity with 500 V electrical isolation between the I/O and bus system.
• Compact EtherCAT Terminal Housing: Space-saving 12 mm housing width optimizes panel space.
• Integrated Diagnostic LEDs: Provides immediate visual status monitoring for easy troubleshooting.
• Seamless TwinCAT Integration: Guarantees effortless configuration and control within the Beckhoff TwinCAT environment.

Technical Specifications

• Part Number: EL3214
• Manufacturer: Beckhoff
• Channels: 4 RTD analog inputs
• Supported Sensors: Pt100, Pt1000, Ni100, Ni1000
• Connection Types: 2-, 3-, and 4-wire
• Resolution: 16-bit
• Measurement Range: –200 °C to +850 °C (sensor dependent)
• Electrical Isolation: 500 V (I/O to bus system)
• Housing Width: 12 mm
• Mounting: DIN rail (EtherCAT Terminal system)
• Operating Temperature: –25 °C to +60 °C

Applications

• Industrial Temperature Measurement and Monitoring: Ideal for critical temperature control in manufacturing and processing plants.
• Process Automation with RTD Sensors: Enhances the accuracy and reliability of automated processes requiring precise temperature feedback.
• Building and HVAC Automation: Facilitates intelligent climate control and energy management systems.
• Machine Control Requiring Precise Temperature Feedback: Ensures optimal machine performance and preventative maintenance through accurate temperature data.
• Laboratory and Test Stand Applications: Provides reliable and repeatable temperature measurements for research and development.

Why Choose This Model?

The Beckhoff EL3214 stands out as a superior choice for your temperature sensing needs due to its unparalleled combination of features and Beckhoff's commitment to quality. This compact terminal offers multi-channel RTD measurement capabilities within a remarkably small footprint, maximizing efficiency without compromising performance. Its flexible support for both Pt and Ni type sensors ensures broad compatibility with various existing setups. With its high-resolution 16-bit temperature acquisition, you can trust the EL3214 to deliver exceptionally accurate data, crucial for critical applications. Furthermore, its integration into the EtherCAT communication system provides real-time performance, enabling swift and responsive control. Backed by Beckhoff's proven reliability and seamless TwinCAT integration, the EL3214 guarantees a robust and future-proof solution for your industrial automation challenges. Opt for the EL3214 to achieve precision, flexibility, and dependability in your temperature monitoring systems.

Order Now

The Beckhoff EL3214 4-channel RTD analog input terminal is readily available for purchase and worldwide shipping. Enhance your industrial automation systems with this high-precision temperature measurement solution today. For further product information or to discuss your specific requirements, please contact our sales team. Experience the reliability and advanced technology of Beckhoff. Return to Beckhoff EL/ELM7xxx Compact Drive Technology. Return to Beckhoff Category.
