Beckhoff EL3064

Overview

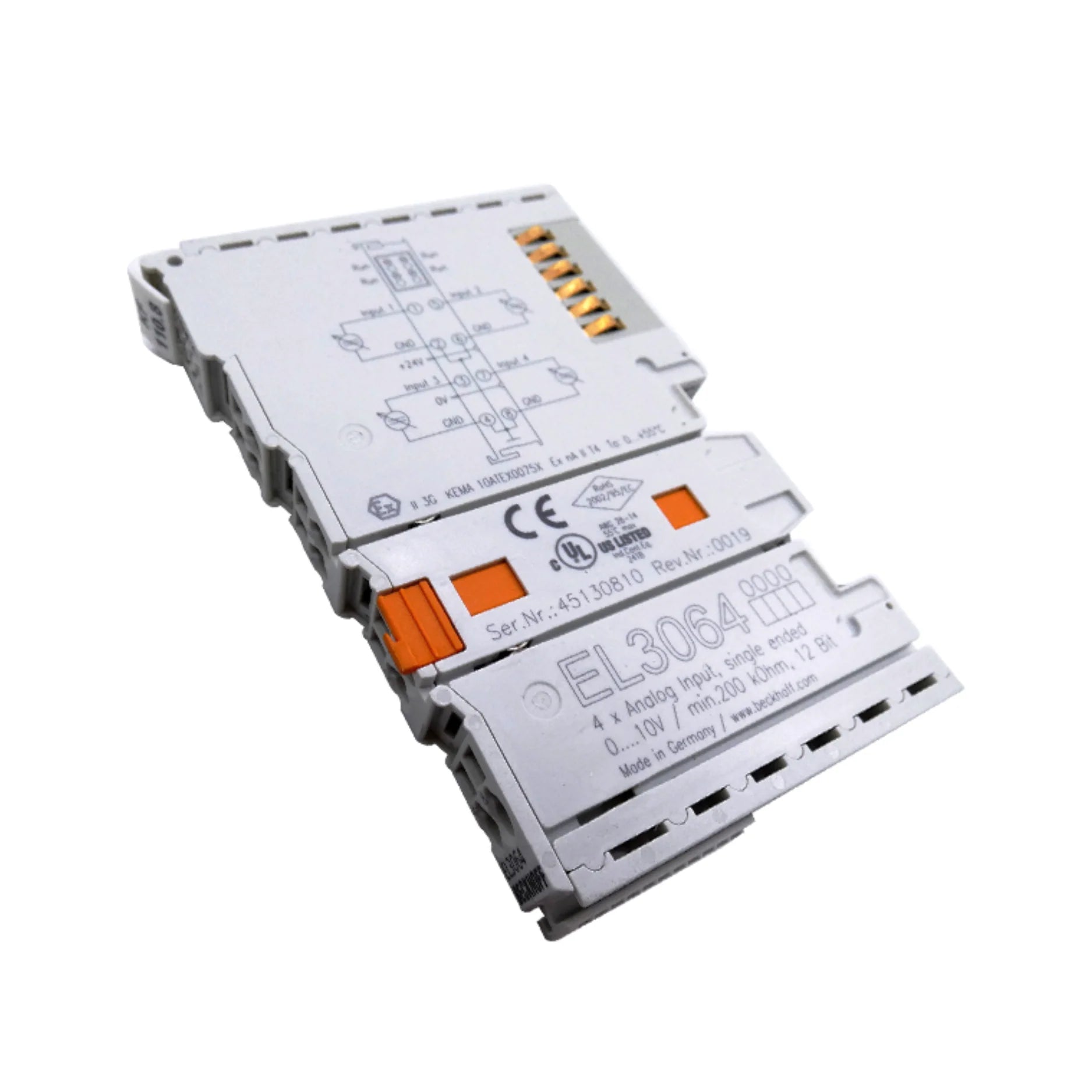

The Beckhoff EL3064 is a cutting-edge 4-channel analog input terminal engineered to capture voltage signals with unparalleled accuracy. Designed for a 0 to 10 V DC range, this robust device delivers a 12-bit resolution, making it an indispensable component for demanding process monitoring, advanced data acquisition, and precise control applications. Its compact form factor and native EtherCAT compatibility ensure effortless and reliable integration into distributed I/O architectures, providing a streamlined solution for modern industrial environments.

Key Features

• Quad Input Channels: Four independent analog input channels for versatile signal acquisition.
• Wide Voltage Range: Accurately measures voltage signals from 0 to 10 V DC.
• High Resolution: 12-bit resolution guarantees exceptional measurement accuracy and detail.
• Space-Saving Design: Ultra-compact 12 mm housing optimizes panel space and simplifies installation.
• Robust Interference Immunity: Engineered for superior performance and reliability in challenging industrial settings.
• EtherCAT Integration: Seamless compatibility with EtherCAT for high-speed data transmission and real-time control.

Technical Specifications

• Part Number: EL3064
• Manufacturer: Beckhoff
• Channels: 4 analog inputs
• Voltage Range: 0…10 V DC
• Resolution: 12-bit
• Input Impedance: Approx. 200 kΩ
• Conversion Time: ≤ 1 ms per channel
• Electrical Isolation: 500 V (channel/bus)
• Housing Width: 12 mm
• Mounting: DIN-rail terminal
• Operating Temperature: –25 °C to +60 °C

Applications

• Precision process monitoring within sophisticated automation systems.
• Accurate voltage signal acquisition from a diverse range of industrial sensors.
• Reliable control systems for industrial machinery and equipment.
• Intelligent building automation and comprehensive energy monitoring solutions.
• High-fidelity data acquisition in research and development laboratories.

Why Choose This Model?

The Beckhoff EL3064 stands out as an exemplary choice for engineers and system integrators seeking high-performance analog input. Its ability to deliver high-accuracy voltage measurements within a remarkably compact format provides significant advantages in terms of both space optimization and system efficiency. The dense 4-channel configuration not only reduces installation footprint but also contributes to overall cost savings. Engineered for resilience, the EL3064 guarantees reliable operation even in the most demanding industrial environments. Furthermore, its seamless integration into existing Beckhoff EtherCAT I/O systems ensures a straightforward and powerful upgrade or expansion path.

Order Now

Elevate your industrial automation capabilities with the Beckhoff EL3064 4-channel, 0…10 V analog input terminal. This high-precision device is readily available and ships worldwide, empowering your projects with accurate voltage signal acquisition. Secure your EL3064 today and experience the Beckhoff difference.
