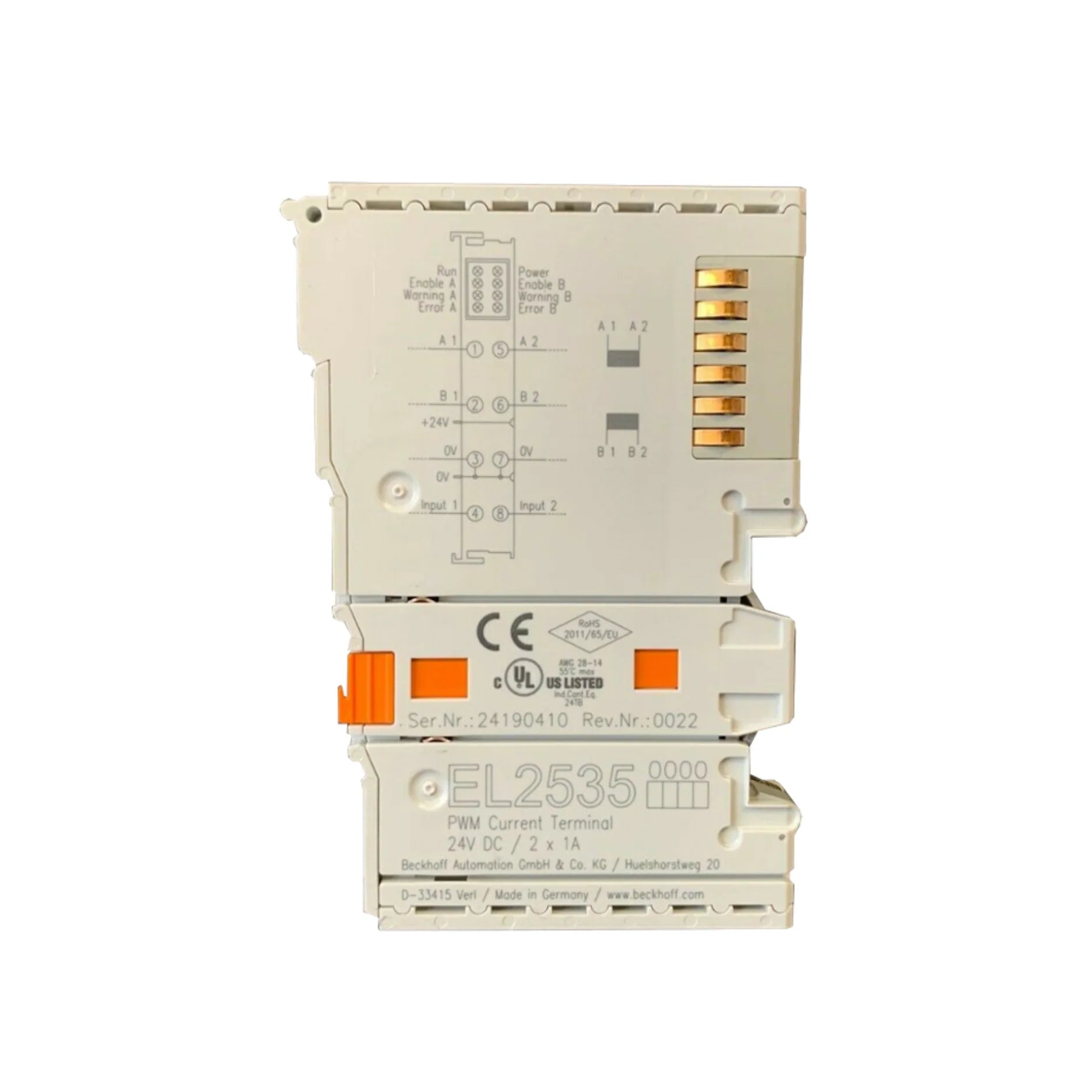

Beckhoff EL2535

Overview

Unlock unparalleled precision in your industrial automation systems with the Beckhoff EL2535, a cutting-edge 2-channel Pulse Width Modulation (PWM) output terminal. Specifically engineered for controlling a diverse range of actuators, powerful motors, and other demanding devices, the EL2535 delivers exceptional performance. Boasting a robust 24 V DC output and an impressive 3 A per channel, this terminal guarantees reliable and consistent signal control. Its seamless integration into Beckhoff’s renowned modular I/O system via the K-bus ensures straightforward setup and versatile application across various industrial environments.

Key Features

• Dual-Channel PWM Output: Provides two independent channels for versatile and simultaneous control of multiple devices.
• High-Current Capacity: Delivers a substantial 24 V DC output with a maximum load of 3 A per channel, enabling control of power-intensive components.
• Precision Pulse Width Modulation: Ensures highly accurate and granular control over connected actuators and motors, leading to optimized performance.
• Integrated Diagnostics & Protection: Built-in features enhance operational reliability by monitoring performance and safeguarding against common industrial faults.
• Compact Modular Design: Optimized for K-bus systems, its space-saving form factor allows for efficient panel utilization and flexible system expansion.
• Seamless K-bus Integration: Effortlessly connects to existing Beckhoff K-bus infrastructure for rapid deployment and streamlined communication.

Technical Specifications

• Beckhoff Code: EL2535
• Type: PWM Output Terminal
• Channels: 2
• Output Voltage: 24 V DC
• Max. Current per Channel: 3 A
• Output Type: PWM (Pulse Width Modulation)
• Bus Connection: K-bus
• Operating Temperature: 0 °C to +55 °C
• Mounting: DIN rail
• Dimensions: Standard Beckhoff terminal size
• Certifications: CE, UL

Applications

The versatility and robust design of the Beckhoff EL2535 make it an indispensable component across a wide array of industrial applications, including:

• Advanced Motor Control: Ideal for precise speed and position control of various motor types in manufacturing and robotics.
• Actuator Command Systems: Enables accurate and responsive control of hydraulic, pneumatic, and electric actuators.
• Industrial Automation Systems: A core component for building sophisticated and reliable automation solutions across diverse industries.
• Signal Modulation for Process Control: Facilitates fine-tuned control of industrial processes requiring modulated signals.
• Test and Measurement Applications: Provides reliable and consistent output for critical testing and precise data acquisition setups.

Why Choose This Model?

The Beckhoff EL2535 stands out as a superior choice for your automation needs due to its exceptional features and performance:

• High-Current PWM Output: With up to 3 A per channel, it delivers the power needed for demanding applications, ensuring superior control and efficiency.
• Compact and Modular Design: Its small footprint and modular nature offer unmatched flexibility in system design and expansion, optimizing cabinet space.
• Seamless Integration: Engineered for effortless compatibility with existing Beckhoff I/O terminals and the K-bus system, simplifying installation and configuration.
• Reliable Performance: Built to withstand the rigors of demanding automation environments, guaranteeing consistent and dependable operation even in challenging conditions.
• Precision Control: The accurate PWM capabilities provide the fine-tuned control necessary for optimal performance of motors and actuators, leading to increased efficiency and reduced wear.

Order Now

Elevate your industrial automation capabilities with the Beckhoff EL2535. Experience the precision, reliability, and robust performance of this 2-channel PWM output terminal. Integrate it into your system today to achieve advanced control over your critical industrial processes.
