Beckhoff EL2502

Overview

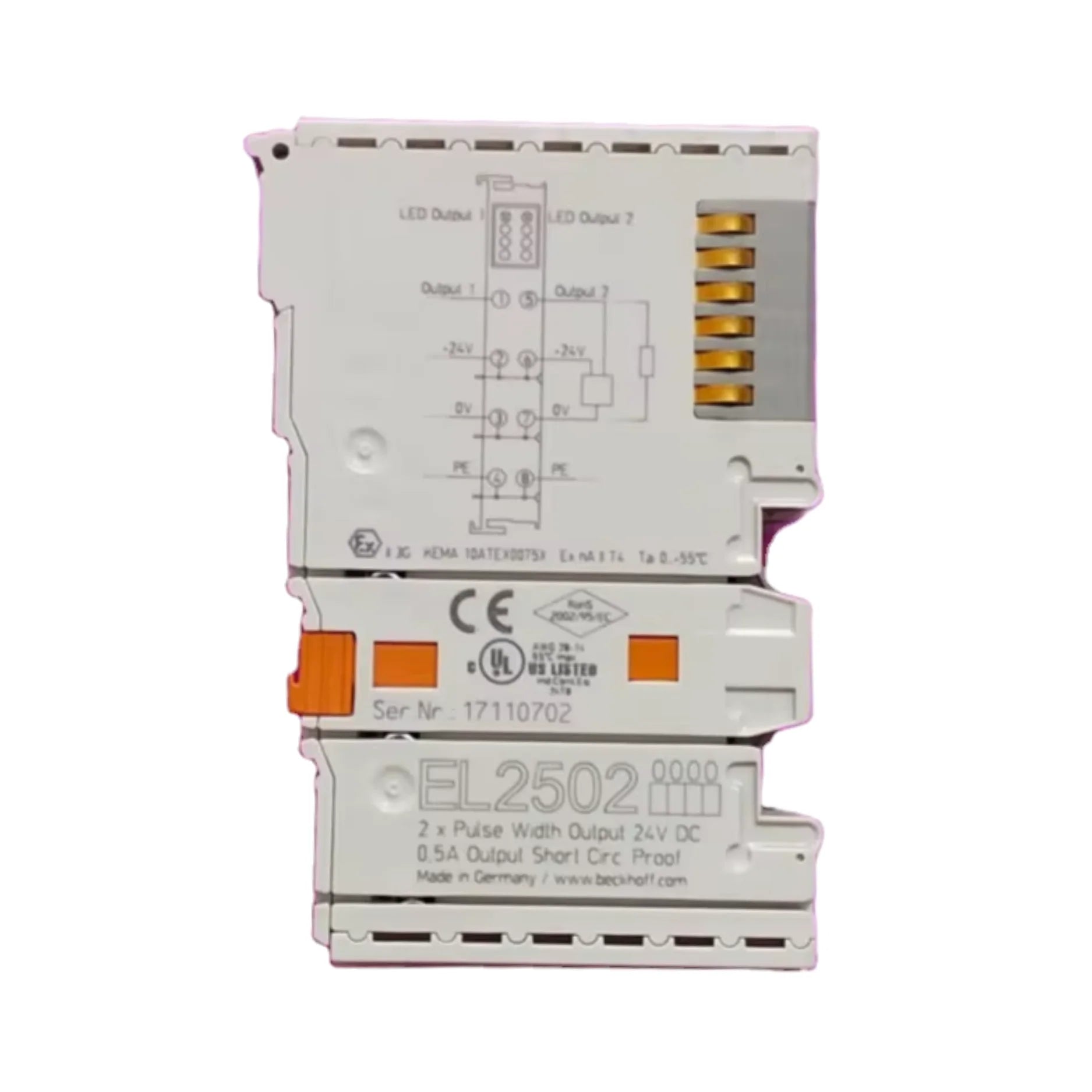

The Beckhoff EL2502 is a high-performance 2-channel digital output terminal engineered with integrated Pulse Width Modulation (PWM) functionality, setting a new standard for precision control within the EtherCAT I/O system. This robust and versatile terminal is the ideal solution for applications demanding exacting control of various loads, including sophisticated actuators, proportional valves, and LED lighting systems that rely on PWM-driven signals. Its ultra-compact design, tailored for seamless DIN-rail mounting, facilitates effortless integration into distributed EtherCAT networks, enabling advanced automation tasks across a multitude of industrial environments. The EL2502 empowers engineers and system integrators with unparalleled accuracy and flexibility.

Key Features

• Dual Digital Output Channels with PWM Functionality: Provides two independent channels capable of delivering precise PWM signals for diverse control requirements.
• Configurable PWM Frequency and Duty Cycle: Offers exceptional flexibility to fine-tune output characteristics, allowing for optimal control of connected devices.
• 24 V DC Output Voltage: Standardized voltage output ensures compatibility with a wide range of industrial components and systems.
• Electrical Isolation between I/O and Bus System: Enhances system reliability and protects sensitive components from electrical interference and surges.
• Diagnostic LEDs for Channel and Bus Monitoring: Provides immediate visual feedback on operational status, simplifying troubleshooting and maintenance.
• Compact 12 mm EtherCAT Housing: Maximizes panel space efficiency without compromising performance or connectivity.
• Seamless Integration into TwinCAT: Ensures quick and straightforward setup, configuration, and programming within the familiar Beckhoff automation environment.

Technical Specifications

• Part Number: EL2502
• Manufacturer: Beckhoff
• Function: Digital output with PWM
• Channels: 2
• Output Voltage: 24 V DC
• Output Current: Up to 0.5 A per channel
• Features: PWM output (frequency/duty cycle configurable)
• Electrical Isolation: 500 V (I/O to bus system)
• Housing Width: 12 mm
• Mounting: DIN rail (EtherCAT Terminal system)
• Operating Temperature: –25 °C to +60 °C

Applications

• PWM-Based Control of Actuators and Solenoids: Achieve precise positioning and responsive operation in hydraulic, pneumatic, and electromechanical systems.
• Dimming and LED Control in Lighting Systems: Implement sophisticated lighting effects and energy-efficient illumination solutions with smooth and accurate intensity control.
• Proportional Valve Actuation in Process Automation: Ensure accurate fluid and gas flow regulation in critical process control applications.
• Signal Generation for Testing & R&D Setups: Create custom waveforms and precise signal patterns for product development, validation, and quality assurance.
• Machine Automation with EtherCAT Integration: Seamlessly integrate into high-speed, synchronized machine control architectures for enhanced performance and efficiency.

Why Choose This Model?

The Beckhoff EL2502 stands out as a superior choice for a multitude of reasons. It uniquely provides two independent PWM outputs, offering exceptional versatility for controlling multiple devices or complex processes simultaneously. Its compact, space-saving EtherCAT design is a major advantage in control cabinets where every millimeter counts, allowing for higher component density and more streamlined layouts. The highly configurable frequency and duty cycle capabilities provide unparalleled flexibility, enabling engineers to precisely tailor the output to meet specific application demands. Built with robust electrical isolation, the EL2502 guarantees reliable and safe performance, protecting both the terminal and connected equipment. Furthermore, as a Beckhoff product, it benefits from seamless integration with TwinCAT software and leverages the power of EtherCAT technology, ensuring a future-proof and high-performance automation solution.

Order Now

Elevate your automation systems with the precision and reliability of the Beckhoff EL2502 2-channel digital output PWM terminal. This advanced EtherCAT terminal is readily available and ready to ship worldwide, ensuring you can quickly implement cutting-edge control solutions. Optimize your actuators, lighting, and process controls with Beckhoff's trusted technology. Return to Beckhoff EL/ELM7xxx Compact Drive Technology to explore related products or browse the full Beckhoff Category for other innovative automation components.
