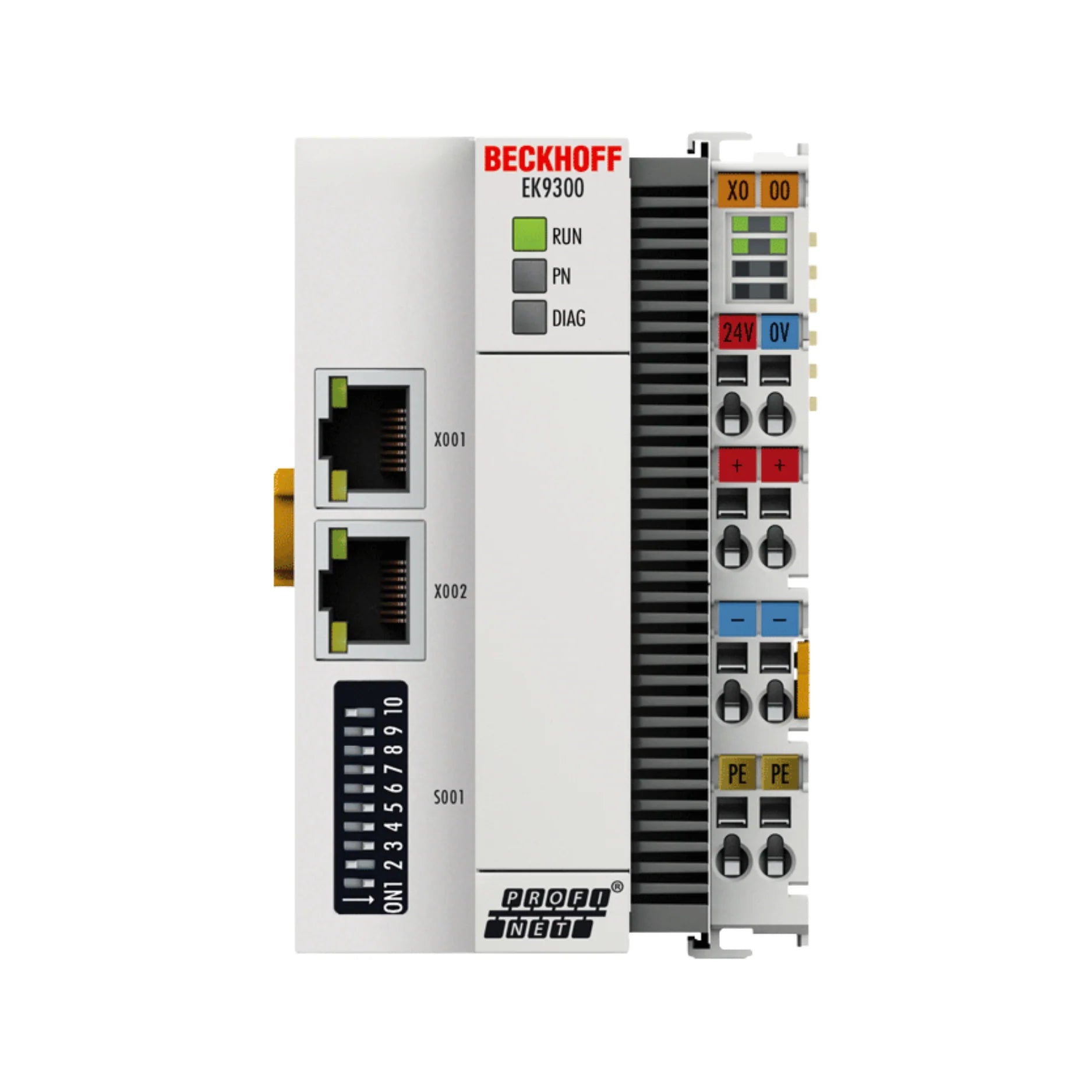

Beckhoff EK9300

Overview

The Beckhoff EK9300 PROFINET IO Bus Coupler stands as a pivotal component in modern industrial automation, bridging the communication gap between high-speed EtherCAT I/O systems and robust PROFINET controllers. This sophisticated gateway empowers engineers and integrators to harness the benefits of both protocols, ensuring seamless data exchange and enhanced operational efficiency. Designed for versatility and performance, the EK9300 facilitates the integration of diverse EtherCAT I/O terminals into existing or new PROFINET-based infrastructures, providing a flexible and scalable solution for complex automation challenges.

With its advanced capabilities, the Beckhoff EK9300 acts as an intelligent translator, allowing EtherCAT devices to appear as native PROFINET participants. This eliminates the need for extensive system overhauls when migrating or expanding automation networks, offering a cost-effective and efficient path to multi-protocol environments. Its compact design and user-friendly features make it an ideal choice for a wide range of industrial applications, from discrete manufacturing to process control.

Key Features

• Seamless Protocol Conversion: Efficiently connects Beckhoff EtherCAT I/O terminals to PROFINET controllers, ensuring reliable data flow.
• Expansive I/O Capacity: Supports an impressive capacity of up to 65,535 I/O channels, providing ample room for even the most demanding automation setups.
• Automatic Terminal Detection: Simplifies configuration and reduces setup time through intelligent, automatic detection of connected EtherCAT I/O terminals.
• Robust DIN-Rail Mounting: Designed for effortless installation and secure integration within control cabinets, optimizing space and accessibility.
• Comprehensive LED Diagnostics: Features clear LED indicators for immediate status updates, including network activity and diagnostic information, facilitating quick troubleshooting.
• Space-Saving Design: Its compact housing is engineered to minimize footprint, making it ideal for densely packed control cabinets where space is at a premium.

Technical Specifications

• Part Number: EK9300
• Manufacturer: Beckhoff
• Protocol Conversion: EtherCAT to PROFINET IO
• Max. I/O Terminals: 65,535
• Power Supply: 24 V DC
• Mounting: DIN-rail
• Operating Temperature: 0 °C to +55 °C
• Housing Width: 44 mm

Applications

• EtherCAT to PROFINET Integration: Core application for incorporating Beckhoff EtherCAT terminals into existing or new PROFINET networks.
• Industrial Automation Gateways: Acts as a versatile gateway in complex factory automation environments, enhancing communication across different protocols.
• Machine and Process Control: Essential for linking diverse I/O devices to central controllers in manufacturing, processing, and assembly lines.
• Multi-Protocol Factory Networks: Facilitates the creation of integrated automation systems where both EtherCAT and PROFINET technologies coexist.

Why Choose This Model?

The Beckhoff EK9300 stands out as a superior choice for several compelling reasons. Its primary strength lies in its unparalleled ability to offer seamless integration between EtherCAT and PROFINET, two of the most prevalent industrial communication protocols. This bridges compatibility gaps and unlocks new possibilities for system design and expansion. With an extraordinary capacity for up to 65,535 I/O channels, the EK9300 ensures future-proof scalability, accommodating even the most extensive and complex automation projects.

Beyond its technical prowess, the EK9300 is celebrated for its compact, robust, and user-friendly design. Its DIN-rail mountable form factor and automatic I/O terminal detection capabilities significantly simplify installation and configuration, drastically reducing setup times and potential integration hurdles. Built to withstand the rigors of demanding industrial environments, this bus coupler guarantees reliable and consistent performance, minimizing downtime and maximizing operational uptime. Choosing the Beckhoff EK9300 means investing in a high-performance, flexible, and dependable solution that future-proofs your automation infrastructure and optimizes your operational efficiency.

Order Now

Elevate your industrial automation capabilities with the Beckhoff EK9300 PROFINET IO Bus Coupler. This essential component for seamless multi-protocol integration is available for immediate order and ships worldwide, ensuring you can enhance your systems regardless of your location. Experience the reliability and advanced functionality that only Beckhoff products can offer. For further information on Beckhoff Bus Terminals or other products in the Beckhoff Category, please refer to our comprehensive product listings.
