Beckhoff EK1814

Overview

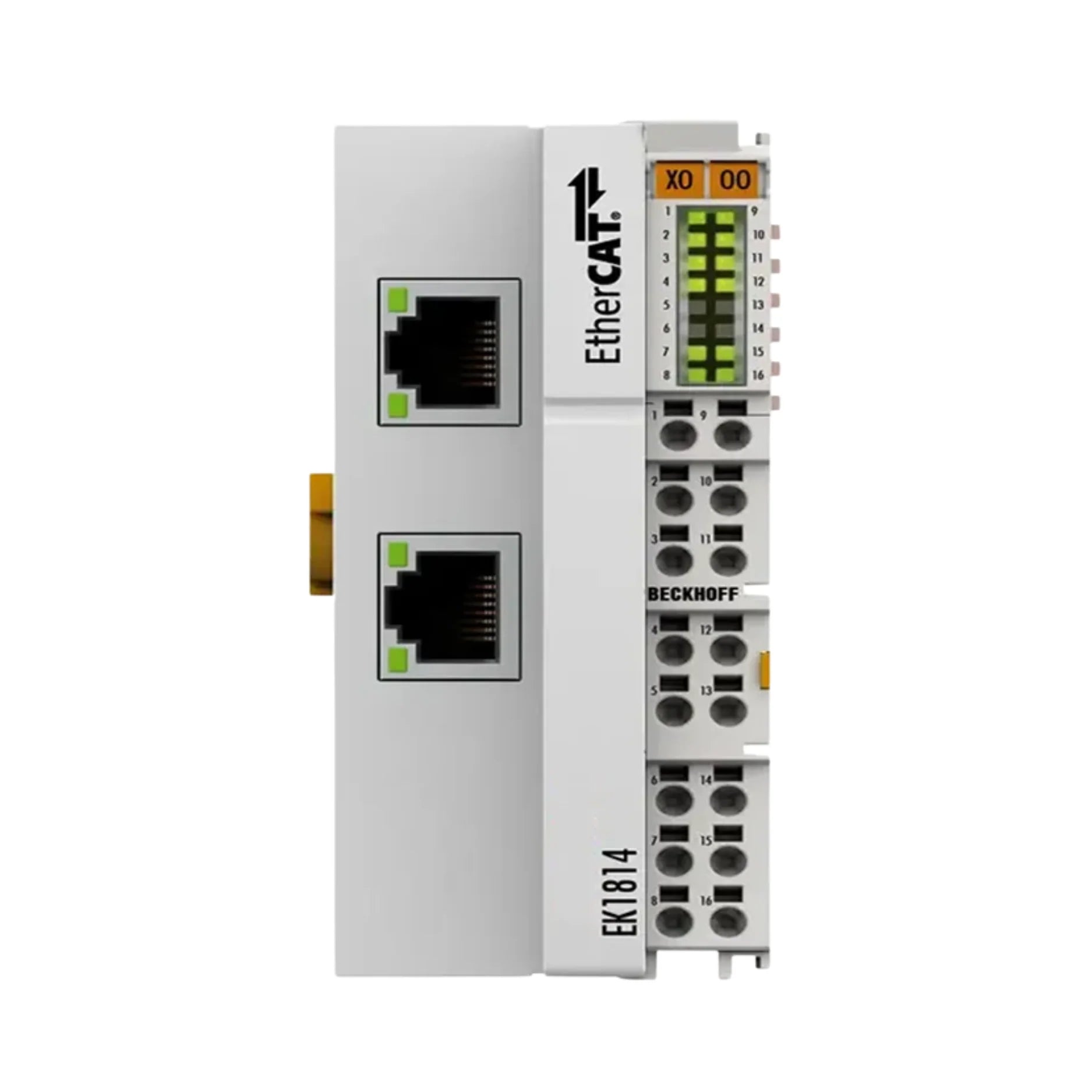

The Beckhoff EK1814 represents a significant advancement in industrial automation, integrating a high-performance EtherCAT coupler with 16 robust digital inputs into a single, compact unit. Engineered by the renowned brand Beckhoff, this device is specifically designed to handle 24 V DC signals, eliminating the need for separate input terminals and thereby simplifying wiring and reducing cabinet space. Its IP20-rated housing ensures reliable operation within control cabinets, while the convenient DIN-rail mounting makes it an ideal solution for distributed automation systems requiring a streamlined and efficient I/O architecture. The EK1814 embodies Beckhoff's commitment to innovation, offering a powerful yet space-saving solution for a wide range of industrial applications.

Key Features

• Integrated EtherCAT Coupler with 16 Digital Inputs: Combines essential functionalities into one device, optimizing system design.
• 24 V DC Input Voltage: Standardized voltage for seamless integration into existing control systems.
• IP20-Rated Housing: Provides protection against solid objects, suitable for cabinet installation environments.
• Compact and Space-Saving Design: Maximizes panel space utilization, crucial for modern, efficient control cabinets.
• Diagnostic LEDs for Each Channel: Offers quick and easy visualization of input status, facilitating troubleshooting and maintenance.
• Real-Time EtherCAT Communication: Ensures high-speed, deterministic data exchange for demanding automation tasks.
• Seamless TwinCAT Integration: Guarantees effortless configuration, programming, and diagnostics within the Beckhoff TwinCAT environment.

Technical Specifications

• Part Number: EK1814
• Manufacturer: Beckhoff
• Function: EtherCAT coupler with integrated I/Os
• Digital Inputs: 16 channels, 24 V DC
• Signal Type: IEC 61131-2, Type 1/3
• Housing Width: 44 mm
• Mounting: DIN rail (control cabinet)
• Protection Class: IP20
• Operating Temperature: –25 °C to +60 °C

Applications

The versatility and robust design of the Beckhoff EK1814 make it suitable for a broad spectrum of industrial applications:

• Machine and Plant Automation with EtherCAT: Ideal for systems requiring high-speed and accurate data acquisition.
• Centralized Control Cabinets with Compact I/O Needs: Reduces wiring complexity and space requirements in confined enclosures.
• Process Automation with High-Density Digital Inputs: Efficiently manages a large number of digital signals in process control.
• Building and Energy Automation: Provides reliable input monitoring for intelligent building management systems.
• Distributed EtherCAT Architectures with Integrated I/O: Facilitates scalable and flexible automation solutions across various industrial sectors.

Why Choose This Model?

The Beckhoff EK1814 stands out as a superior choice for several compelling reasons:

• All-in-One Solution: Seamlessly combines an EtherCAT coupler and 16 digital inputs, streamlining hardware and installation.
• Space and Wiring Efficiency: Its compact design significantly saves valuable cabinet space and simplifies wiring, leading to reduced installation times and costs.
• Unmatched Real-Time Performance: Leverages EtherCAT technology to deliver deterministic and high-speed communication, critical for demanding automation tasks.
• Simplified Diagnostics: Equipped with individual diagnostic LEDs for each channel, enabling quick identification and resolution of issues.
• Proven Beckhoff Reliability: Benefits from Beckhoff's established reputation for robust industrial hardware and seamless integration with the powerful TwinCAT software environment. This ensures long-term operational stability and ease of commissioning.

Order Now

Enhance your automation systems with the efficiency and reliability of the Beckhoff EK1814 EtherCAT coupler with 16 digital inputs. This advanced component is readily available and ready to ship worldwide, ensuring prompt delivery to meet your project's demands. Join countless other industries that trust Beckhoff for their critical automation needs. For further information or to explore other Beckhoff solutions, please return to our Beckhoff Bus Terminals or the main Beckhoff Category.
