Beckhoff CX5130

Overview

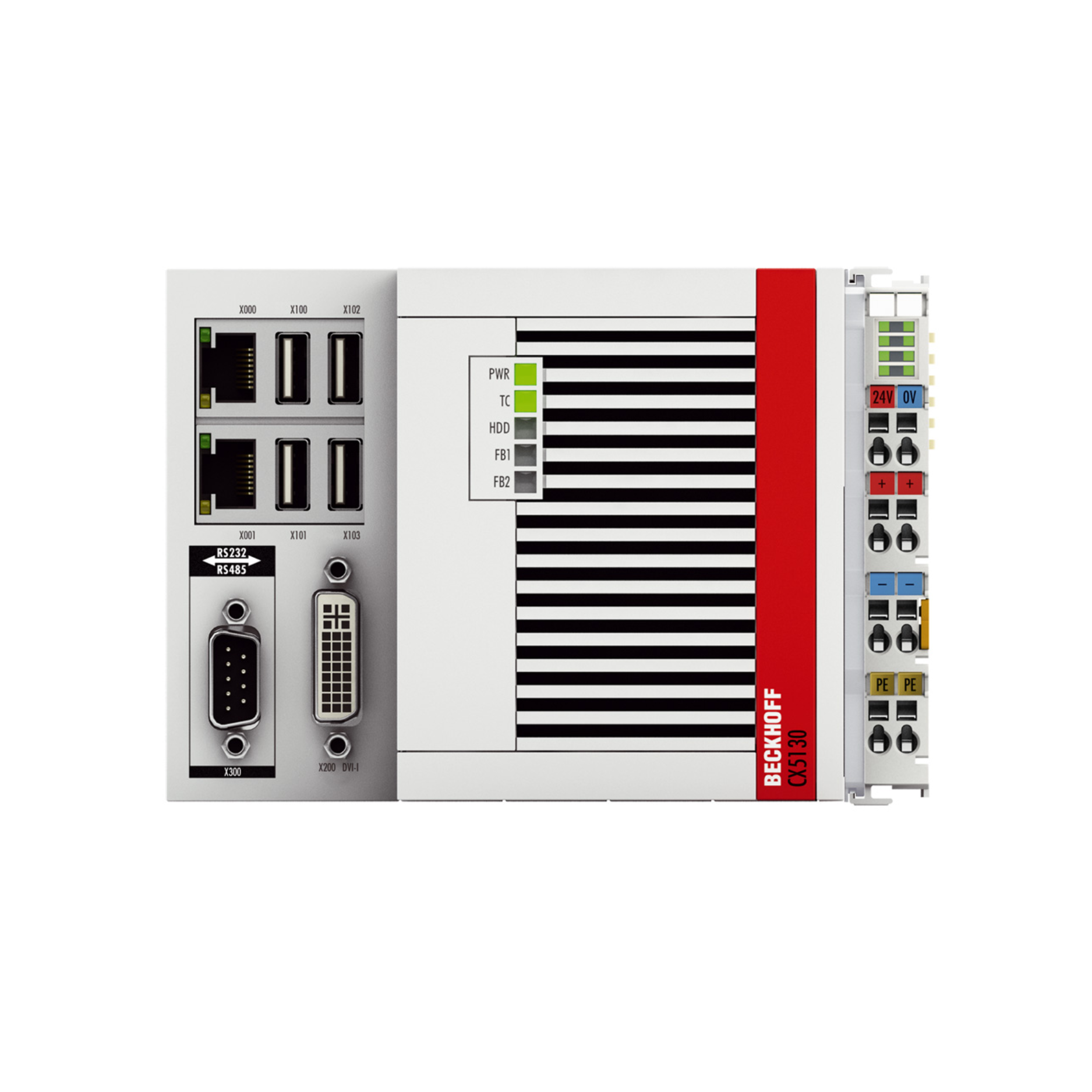

The Beckhoff CX5130 represents a new standard in compact, high-performance industrial computing. This fanless, DIN-rail-mountable Embedded PC is engineered to deliver exceptional processing power for demanding control and automation applications. At its heart lies a powerful Intel Atom® E3827 dual-core processor, ensuring seamless operation and efficient task execution. Designed with modularity in mind, the CX5130 integrates effortlessly with EtherCAT Terminals, providing a robust solution for distributed I/O, precise motion control, and comprehensive automation systems. Its compact form factor belies its capabilities, making it an ideal choice for space-constrained environments where reliability and performance are paramount.

Key Features

• Powerful Processing: Equipped with an Intel Atom® E3827, 1.75 GHz, dual-core processor for superior performance.
• Robust Design: Fanless, solid-state embedded PC ensures high reliability and extended operational life in harsh industrial settings.
• Extensive Connectivity: Features 2 × Gigabit Ethernet ports for high-speed networking and 4 × USB 2.0 ports for peripheral integration.
• Visual Output: Includes 1 × DVI-D port for connecting display units for HMIs or diagnostic purposes.
• Software Compatibility: Fully supports both TwinCAT 2 and the advanced TwinCAT 3 automation software platforms.
• Ample Memory: Comes with 4 GB DDR3 RAM to handle complex applications and multitasking.
• Flexible Storage Options: Offers optional CFast or SSD storage for reliable data retention and system scalability.
• Integrated EtherCAT: Provides modular EtherCAT I/O support, enabling precise and synchronized control.
• Space-Saving Mount: Designed for convenient DIN-rail mounting, perfect for installation in control cabinets.

Technical Specifications

• Part Number: CX5130
• Manufacturer: Beckhoff
• CPU: Intel Atom E3827, 1.75 GHz dual-core
• RAM: 4 GB DDR3L
• Storage: CFast or SSD (optional)
• Interfaces: 2 × Ethernet, 4 × USB, 1 × DVI-D
• Fieldbus: EtherCAT master (expandable)
• Mounting Type: DIN-rail
• Power Supply: 24 V DC
• Operating Temperature: –25 °C to +60 °C
• Protection Class: IP20
• Dimensions: ~142 mm × 100 mm × 92 mm (approximate)

Applications

The versatility and robust performance of the Beckhoff CX5130 make it an ideal solution for a wide array of industrial applications, including:

• Industrial Machine Control: Providing the computational backbone for complex machinery and production lines.
• Modular Automation Systems: Facilitating scalable and flexible automation architectures.
• Integrated PLC and HMI: Consolidating Programmable Logic Controller (PLC) and Human-Machine Interface (HMI) functionalities into a single, compact unit.
• Motion Control and EtherCAT I/O Systems: Delivering precise and high-speed control for demanding motion applications leveraging the power of EtherCAT.
• SCADA and Data Acquisition: Serving as a reliable platform for Supervisory Control and Data Acquisition (SCADA) systems and critical data logging.

Why Choose This Model?

Opting for the Beckhoff CX5130 means investing in a solution that brings together cutting-edge technology with industrial-grade reliability. Its dual-core Intel Atom performance is packed into an incredibly compact form factor, making it suitable for almost any control cabinet. The fanless design significantly enhances operational reliability by eliminating moving parts and reducing maintenance requirements, especially in dusty or harsh environments. Its modular and expandable nature ensures future-proof adaptability to evolving automation tasks. Furthermore, the broad compatibility with both TwinCAT 2 and TwinCAT 3 provides seamless integration into existing and new Beckhoff-centric ecosystems. Built with the rigors of industrial environments in mind, the CX5130 is designed for long-term, dependable operation.

Order Now

Elevate your automation capabilities with the Beckhoff CX5130 Embedded PC. This powerful and versatile industrial PC is available and ready for worldwide shipment. Experience the unparalleled performance and reliability that Beckhoff delivers for your most critical applications.
