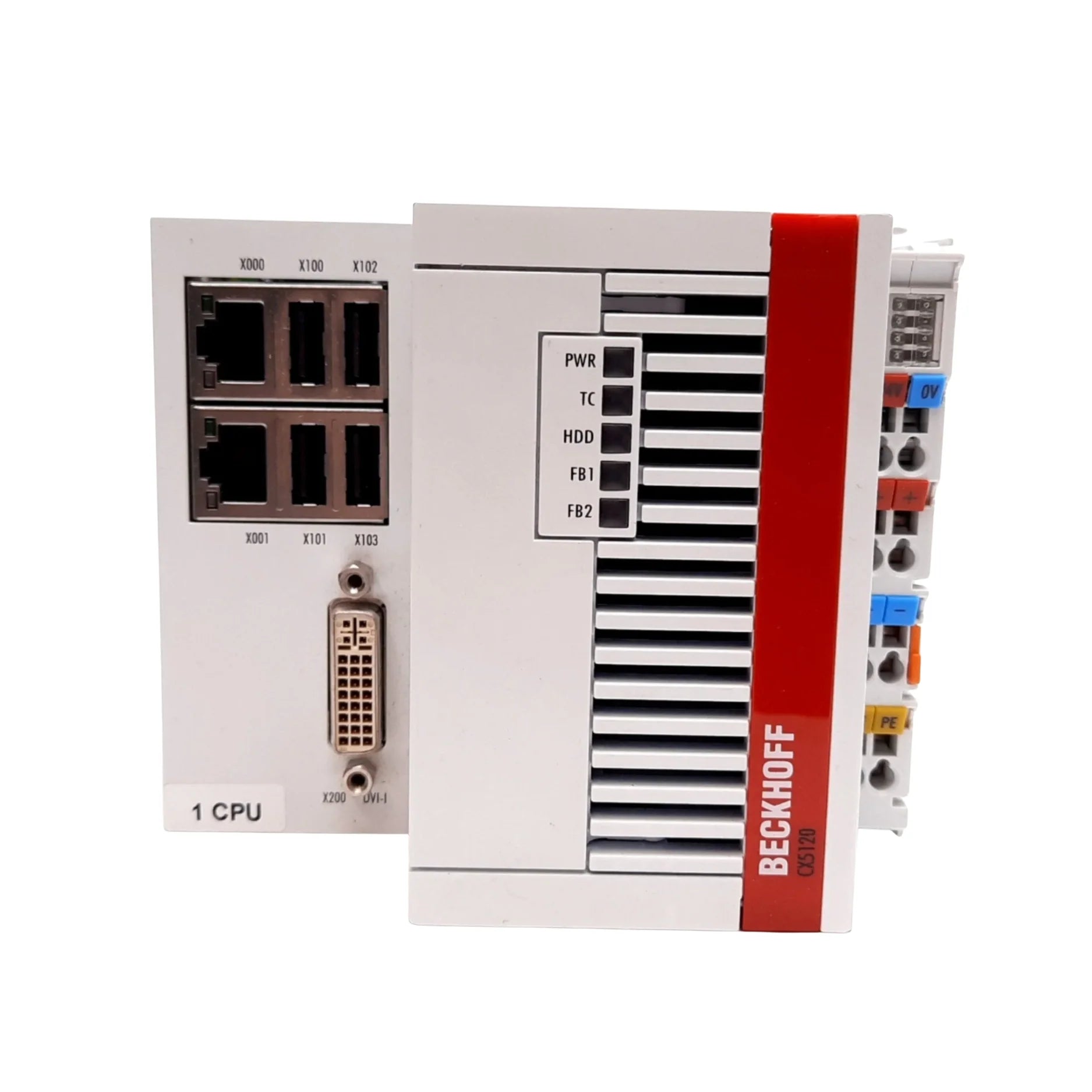

Beckhoff CX5120

Overview

The Beckhoff CX5120 is a high-performance, compact embedded PC engineered for demanding industrial automation environments. Powered by an Intel Atom E3815 processor clocked at 1.46 GHz, this robust DIN-rail mountable controller delivers exceptional processing capabilities within a fanless thermal design, ensuring silent and reliable operation. Its seamless compatibility with TwinCAT 3 automation software and integrated EtherCAT master functionality make it an ideal solution for intricate machine control, motion applications, and robust SCADA systems. Designed for efficiency and endurance, the CX5120 provides a powerful and space-saving computing platform for diverse mid-range industrial applications.

Key Features

• High-Performance Intel Atom E3815 CPU: Experience robust processing power with a 1.46 GHz single-core processor, optimized for embedded industrial tasks.
• Fanless Passive Cooling: Benefit from maintenance-free operation and extended lifespan due to its passive cooling design, eliminating the need for cooling fans.
• TwinCAT 3 Support: Seamlessly integrate with Beckhoff's TwinCAT 3 automation software for advanced PLC and motion control functionalities.
• Integrated EtherCAT Master: Two independent Ethernet ports, including a dedicated EtherCAT port, ensure high-speed, deterministic communication with I/O terminals and other devices.
• Comprehensive Connectivity: Equipped with 4 USB 2.0 ports, 1 DVI-D visual output, and an optional interface slot for versatile peripheral and expansion options (e.g., RS232, CAN).
• Industrial-Grade Design: Housed in a durable, compact metal chassis with DIN-rail mounting, ensuring easy installation and reliability in harsh industrial settings.
• Energy-Efficient Operation: Designed for low power consumption, contributing to reduced operating costs and environmental impact.

Technical Specifications

• Part Number: CX5120
• Manufacturer: Beckhoff
• CPU: Intel Atom E3815, 1.46 GHz
• RAM: 2 GB DDR3L (non-expandable)
• Storage: CFast card or SSD (optional, not included)
• Fieldbus: 2 × Ethernet (1 dedicated for EtherCAT communication)
• Interfaces: 4 × USB 2.0, 1 × DVI-D, 1 × optional slot (e.g., RS232, CAN)
• Operating System Support: Windows Embedded Standard or TwinCAT/BSD
• Operating Temperature: –25 °C to +60 °C
• Power Supply: 24 V DC
• Protection Class: IP20
• Mounting Type: DIN-rail

Applications

The Beckhoff CX5120 is a versatile embedded PC suited for a broad spectrum of industrial applications, including but not limited to:

• Mid-range Machine Control: Providing robust and precise control for a variety of machinery in manufacturing and assembly lines.
• Advanced Motion and Robotics Systems: Ideal for coordinating complex motion sequences and robotic arm control due to its powerful processor and EtherCAT capabilities.
• Industrial Automation and SCADA Systems: Serving as a reliable backbone for data acquisition, process control, and supervisory control in large-scale industrial environments.
• IoT and Smart Manufacturing Platforms: Facilitating edge computing and data processing for connected factories and smart manufacturing initiatives.
• Compact Controller Replacement: An excellent choice for upgrading or consolidating existing control systems with a modern, high-performance, and space-saving solution.

Why Choose This Model?

• Exceptional Performance and Efficiency: The Intel Atom E3815 CPU combined with low power consumption offers an optimal balance of processing power and energy efficiency.
• Advanced TwinCAT 3 Functionality: Unleash the full potential of your automation projects with comprehensive support for TwinCAT 3, enabling sophisticated control and programming.
• Seamless EtherCAT Integration: Achieve real-time communication and precise synchronization with EtherCAT I/O terminals, reducing wiring complexity and boosting performance.
• Optimized for Industrial Spaces: Its compact design and DIN-rail mounting make it perfectly suited for space-constrained control cabinets and industrial enclosures.
• Scalability for Future Growth: An ideal choice for scalable automation projects, providing a reliable foundation that can adapt to evolving industrial demands.
• Global Availability: The Beckhoff CX5120 is readily available and ships worldwide, ensuring accessibility for international projects.

Order Now

Elevate your industrial automation capabilities with the Beckhoff CX5120 embedded PC. This powerful and compact solution is available for immediate order and ships worldwide. Enhance your operational efficiency and reliability today.
