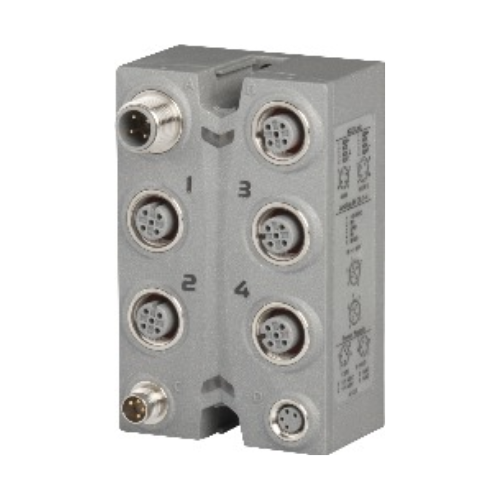

B&R X67SM2436

Overview

The B&R X67SM2436 is a state-of-the-art stepper motor module engineered to deliver exceptionally precise control for up to two independent stepper motors within demanding industrial environments. As a cornerstone of B&R's renowned industrial automation portfolio, this module integrates advanced functionalities such as sophisticated microstepping capabilities, comprehensive encoder support, and highly configurable current settings. These features collectively ensure not only remarkably smooth and accurate motor operation but also contribute to optimized energy consumption across a wide array of applications. Built with an unyielding IP67-rated design, the X67SM2436 stands as a testament to durability, making it an indispensable component for reliable performance in even the most challenging industrial settings where robustness and precision are paramount.

Integrating seamlessly into existing or new B&R X20 I/O systems, this module enhances system modularity and provides robust communication capabilities. Its design prioritizes longevity and consistent operation, significantly reducing downtime and maintenance requirements. The X67SM2436 exemplifies B&R's commitment to innovation, offering a sophisticated solution for motion control that meets the exacting standards of modern industrial automation.

Key Features

• Dual Stepper Motor Support: Efficiently manages two 2-phase bipolar stepper motors, offering a nominal voltage range of 24 to 38.5 VDC ±25%, a continuous current capacity of up to 3 A, and a peak current of 5 A for demanding tasks.
• Advanced Microstepping Control: Achieves unparalleled positioning accuracy with up to 256 microsteps per full step, enabling incredibly fine and smooth motor movements crucial for precision applications.
• Integrated Digital Inputs: Features six versatile digital inputs, which can be flexibly configured as reliable limit switches or high-resolution ABR incremental encoder inputs, enhancing control and feedback capabilities.
• Optimized Current Configuration: Provides adjustable boost, nominal, and holding current settings, allowing for precise power management, improved energy efficiency, and reduced heat generation.
• Intelligent Motor Diagnostics: Includes automatic motor detection and sophisticated stall detection capabilities, ensuring accurate motor identification, proactive overload protection, and prolonged motor lifespan.
• High-Speed PWM Frequency: Operates at a PWM frequency of 38.5 kHz, facilitating rapid and responsive motor control for dynamic industrial processes.
• Comprehensive Encoder Support: Accommodates two ABR incremental encoders with a maximum input frequency of 50 kHz and a 16-bit counter, enabling closed-loop control and highly accurate position tracking.
• Rugged IP67 Design: Boasts an industrial-grade IP67 rating, guaranteeing robust protection against dust ingress and water immersion, making it perfectly suited for harsh and demanding industrial environments.
• Industry-Leading Certifications: Complies with critical industry standards, holding CE, UKCA, ATEX Zone 2, and UL certifications, affirming its quality, safety, and reliability for global deployment.
• Wide Ambient Operating Conditions: Operates reliably across a broad temperature range of -25 to 60°C, with a storage temperature from -40 to 85°C. Maintains performance in 5% to 95% non-condensing humidity and exhibits excellent shock and vibration resistance, adhering to stringent industrial automation standards.

Technical Specifications

• Model Number: X67SM2436
• Type: Stepper Motor Module
• Brand: B&R (Industrial Automation)
• Motor Support: Two 2-phase bipolar stepper motors
• Nominal Voltage: 24 to 38.5 VDC ±25%
• Continuous Current: Up to 3 A
• Peak Current: 5 A
• Microstepping: Up to 256 microsteps per full step
• Digital Inputs: 6 (configurable as limit switches or ABR incremental encoder inputs)
• PWM Frequency: 38.5 kHz
• Encoder Input: Two ABR incremental encoders, max. 50 kHz
• Encoder Counter: 16-bit
• Protection Rating: IP67
• Operating Temperature: -25 to 60°C
• Storage Temperature: -40 to 85°C
• Humidity: 5% to 95% (non-condensing)
• Certifications: CE, UKCA, ATEX Zone 2, UL

Applications

• Industrial Automation: Provides precise and reliable stepper motor control, essential for tasks in advanced robotics, sophisticated conveyor systems, and complex assembly lines, ensuring seamless and efficient operations.
• Machine Control: Facilitates high-speed positioning and accurate movement in a variety of machinery, from packaging equipment to textile machines, enhancing overall machine performance and output.
• Material Handling & Packaging: Supports automated production lines with dynamic motion control, optimizing processes such as pick-and-place, labeling, and sorting for increased throughput and reduced errors.
• CNC & Motion Control Systems: Ensures exceptionally smooth motion and precise torque regulation in computer numerical control (CNC) machines and other high-precision motion control applications, guaranteeing superior product quality.
• Test and Measurement Equipment: Ideal for applications requiring extremely fine and repeatable movements, enhancing the accuracy and reliability of diagnostic and calibration systems.

Why Choose This Model?

The B&R X67SM2436 stepper motor module offers an unparalleled combination of precision, flexibility, and ruggedness, making it the definitive choice for modern industrial automation systems. Its advanced microstepping technology and comprehensive encoder support ensure exceptionally accurate and repeatable motion control, catering to the most demanding applications. The module's configurable current settings provide optimal energy efficiency and extend the lifespan of connected motors, translating into significant operational savings.

Furthermore, the X67SM2436's robust industrial-grade IP67 design guarantees reliable performance even in the harshest environments, resisting dust, water, and extreme temperatures. Coupled with real-time motion control capabilities and advanced protection features like motor and stall detection, this module minimizes downtime and maximizes operational continuity. By choosing the B&R X67SM2436, you invest in a solution that not only meets but exceeds the stringent requirements of contemporary automation, offering superior performance, longevity, and peace of mind.

Order Now

Secure your B&R X67SM2436 stepper motor module today and elevate your industrial automation capabilities. We offer fast global shipping and efficient worldwide delivery to ensure your components arrive promptly. For comprehensive B&R PLC solutions that deliver scalable and high-performance control, explore our full range of products. Alternatively, delve into the complete B&R portfolio, which includes cutting-edge HMIs, advanced motion control systems, and robust servo drives, all available for global distribution to optimize your industrial processes.
