B&R X20DIF371

Overview

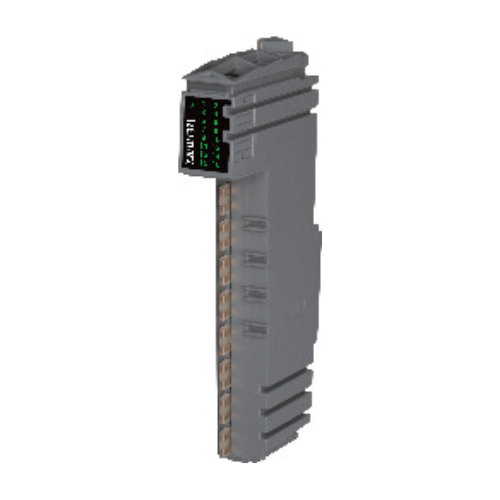

The B&R X20DIF371 is a high-performance 16-channel digital input module, meticulously engineered as part of the esteemed X20 series. This module is specifically designed to seamlessly integrate 24 VDC signals into diverse industrial automation systems. With its reliable sink input wiring and streamlined 1-wire connections, the X20DIF371 ensures dependable operation and effortless integration into complex control architectures, making it an indispensable component for modern industrial applications.

Key Features

• Input Channels: 16 digital inputs for extensive connectivity.
• Input Voltage: 24 VDC, with a flexible operating range of -15% to +20%.
• Input Type: Efficient sink input wiring for common industrial standards.
• Connection Type: Simplified 1-wire connections for ease of installation.
• Input Characteristics: Fully conforms to the stringent EN 61131-2 Type 1 standards.
• Configurable Input Filter: Software-configurable filtering across the entire module for enhanced signal integrity.
• Status Indicators: Clear LED indicators for I/O function per channel, operating state, and overall module status.

Technical Specifications

• Model Number: X20DIF371
• Series: X20
• Input Resistance: Approximately 8.9 kΩ.
• Input Current at 24 VDC: Typically 2.68 mA.
• Switching Thresholds: Low: <5 VDC; High: >15 VDC.
• Input Filter: Hardware: ≤100 μs; Software: Default 1 ms, configurable from 0 to 25 ms in 0.2 ms increments.
• Simultaneity: 100% (16 channels) with 24 V I/O power supply; 75% (12 channels) with 28.8 V I/O power supply.
• Electrical Isolation: Channel isolated from bus; channels not isolated from each other.
• Power Consumption: Bus: 0.18 W; Internal I/O: 1.47 W.
• Mounting Orientation: Versatile for both horizontal and vertical installation.
• Operating Temperature: Horizontal: -25°C to +60°C; Vertical: -25°C to +50°C.
• Storage Temperature: -40°C to +85°C.
• Relative Humidity: 5% to 95%, non-condensing.
• Degree of Protection: IP20.
• Certifications: CE, UL, ATEX Zone 2, and others, ensuring compliance and safety.

Applications

• Industrial Automation: Facilitates robust integration of digital signals into Programmable Logic Controller (PLC) systems.
• Process Control: Essential for monitoring and controlling various industrial processes through precise interfacing with sensors and switches.
• Machine Control: Provides reliable and consistent input signal processing crucial for the continuous operation of machinery.
• Building Automation: Seamlessly integrates with advanced building management systems for comprehensive monitoring and control functionalities.

Why Choose the B&R X20DIF371?

The B&R X20DIF371 stands out as a superior choice for several reasons. Its high channel density allows for the accommodation of 16 digital inputs within a remarkably compact module, optimizing space and reducing wiring complexity. The module offers flexible input filtering, which is software-configurable, enabling tailored signal processing to meet specific application requirements and enhance system reliability. Engineered with a robust design, the X20DIF371 guarantees reliable and consistent performance even in the most demanding industrial environments. As an integral part of the renowned X20 series, it ensures seamless compatibility and effortless integration with existing B&R automation systems, providing a cohesive and efficient solution for your industrial needs.
