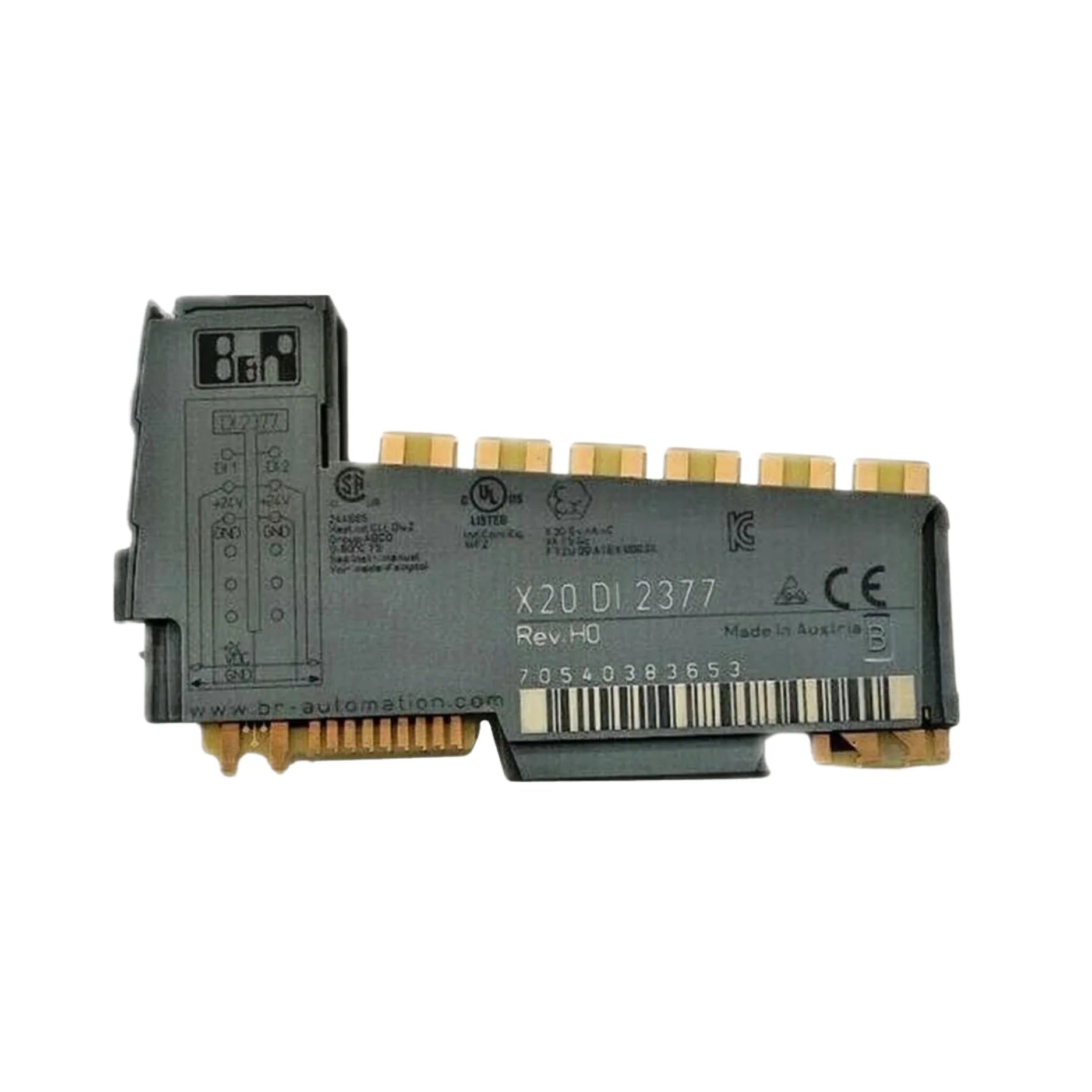

B&R X20DI2377 digital input module with 2 inputs, 24 VDC, sink connection, 3-wire setup, and 50 kHz counter for precise industrial event counting.

B&R X20DI2377

$369.00
$369.00
Skip to product information
B&R X20DI2377 digital input module with 2 inputs, 24 VDC, sink connection, 3-wire setup, and 50 kHz counter for precise industrial event counting.
  • B&R X20DI2377 digital input module with 2 inputs, 24 VDC, sink connection, 3-wire setup, and 50 kHz counter for precise industrial event counting.
  • B&R X20DI2377 digital input module with 2 inputs, 24 VDC, sink connection, 3-wire setup, and 50 kHz counter for precise industrial event counting.
B&R X20DI2377

B&R X20DI2377

$369.00
$369.00

Overview

The B&R X20DI2377 is a cutting-edge digital input module engineered for the most demanding industrial automation environments. This robust module excels in applications requiring exceptionally precise signal processing and high-speed event counting. With its 2 digital inputs, convenient sink connection, and versatile 3-wire configuration, the X20DI2377 seamlessly integrates into diverse control systems. Its remarkable capability to handle input frequencies up to an impressive 50 kHz positions it as the ideal choice for mission-critical, high-speed counting tasks where accuracy and reliability are paramount.

Key Features

  • Digital Inputs: 2 highly responsive channels with a sink connection for versatile integration.
  • Input Voltage: Operates efficiently at 24 VDC (with a broad tolerance of -15% / +20%).
  • Input Frequency: Supports ultra-fast input frequencies up to 50 kHz for demanding applications.
  • Event Counting: Each input channel can function as an independent, high-resolution 16-bit event counter.
  • Gate Measurement: Offers precise gate measurement capabilities on one dedicated channel.
  • Input Filters: Equipped with a hardware filter (≤10 µs) and a configurable software filter (0 to 25 ms) for signal integrity.
  • Sensor Power Supply: Conveniently provides 24 VDC and GND references for direct sensor connections.
  • Status Indicators: Clear LED indicators for I/O function per channel, operating state, and overall module status.

Technical Specifications

  • Model Number: X20DI2377
  • Series: X20
  • Input Current: Typically 10.5 mA at 24 VDC, ensuring efficient power utilization.
  • Input Resistance: Approximately 2.23 kΩ.
  • Switching Thresholds:
    • Low: <5 VDC
    • High: >15 VDC
  • Event Counter:
    • Counter Size: 16-bit for granular event tracking.
    • Maximum Frequency: 50 kHz, supporting rapid event counting.
    • Signal Form: Square wave pulse.
  • Gate Measurement:
    • Supported on one channel for precise timing measurements.
    • Signal Form: Square wave pulse.
    • Pulse Length: ≥20 µs.
  • Sensor Power Supply:
    • Voltage: Module supply voltage minus voltage drop for short-circuit protection.
    • Maximum Current: 0.5 A.
    • Short-Circuit Proof: Yes, ensuring reliability and safety.
  • Power Consumption:
    • Bus: 0.15 W
    • Internal I/O: 0.82 W
  • Operating Temperature:
    • Horizontal Mounting: -25°C to +60°C
    • Vertical Mounting: -25°C to +50°C
  • Protection Rating: IP20
  • Certifications: CE, UL, ATEX Zone 2, DNV, KC, affirming global compliance and quality.

Applications

  • High-Speed Counting: Indispensable for applications demanding precise and rapid event counting up to 50 kHz, such as production line monitoring and packaging.
  • Industrial Automation: Perfectly suited for monitoring and processing high-frequency digital signals in complex automation systems, enhancing control and efficiency.
  • Process Control: Highly effective in scenarios necessitating accurate gate measurements and real-time event tracking, crucial for quality assurance and operational optimization.
  • Motion Control Systems: Ideal for sensing and counting precise encoder pulses, contributing to accurate positioning and speed control.
  • Manufacturing: Enhances productivity by enabling precise measurement of discrete events in manufacturing processes.

Why Choose This Model?

The B&R X20DI2377 stands out as a superior choice for several compelling reasons:

  • Unmatched High-Speed Performance: Its capability to handle input frequencies up to 50 kHz ensures the most precise and reliable event counting, even in the most dynamic operations.
  • Exceptional Flexibility: With support for both advanced event counting and integral gate measurement functionalities, this module adapts to a wide array of application requirements.
  • Streamlined Integration: The integrated sensor power supply eliminates the need for external power sources for connected sensors, significantly simplifying wiring and reducing installation complexity.
  • Built for Durability: Engineered to meet rigorous industrial standards and possessing a comprehensive suite of international certifications, the X20DI2377 guarantees robust performance and longevity in challenging environments.
  • Future-Proof Design: Invest in a module that offers both current technological excellence and the adaptability for future system expansions.
