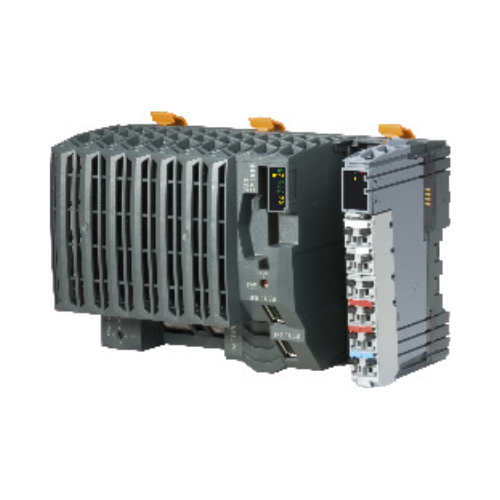

B&R X20CP1585

Overview

The B&R X20CP1585 stands as a pinnacle of industrial automation control. This high-performance Programmable Logic Controller (PLC) from the renowned X20 series is engineered for demanding applications, offering unparalleled processing power and connectivity in a compact form factor. At its core, an Intel Atom E640T 1 GHz processor, coupled with 256 MB DDR2 SDRAM, ensures rapid and reliable execution of even the most complex control tasks. Its robust design and comprehensive suite of integrated interfaces—including Ethernet, POWERLINK, USB, and RS232—make it a versatile and indispensable component for modern industrial environments. Experience seamless integration and superior operational efficiency with the B&R X20CP1585.

Key Features

• High-Performance Processor: Equipped with an Intel Atom E640T, 1 GHz, for lightning-fast data processing.
• Optimized Memory: Features 256 MB DDR2 SDRAM and an additional 1 MB SRAM dedicated for user applications, ensuring smooth operation.
• Versatile Connectivity: Includes 1x RJ45 for 10/100/1000 Mbit/s Ethernet, 1x RJ45 for 100 Mbit/s POWERLINK, 2x USB Type A (1.1/2.0), and 1x RS232 via a 12-pin terminal block.
• Modular Expandability: An integrated expansion slot allows for the addition of further interfaces, adapting to evolving system requirements.
• Removable Application Memory: A CompactFlash slot provides convenient options for application memory management.
• Precision Real-Time Clock: Nonvolatile, offering exceptional accuracy of ±10 ppm at 25°C.
• Integrated I/O Processor: Efficiently handles I/O data points in the background, freeing up the main CPU for critical tasks.
• Robust Electrical Isolation: Ensures signal integrity and system protection between Ethernet, POWERLINK, X2X Link, and other interfaces.

Technical Specifications

• Processor:
  • Type: Intel Atom E640T
  • Clock Frequency: 1 GHz
  • L1 Cache: 24 kB data, 32 kB program
  • L2 Cache: 512 kB
• Memory:
  • RAM: 256 MB DDR2 SDRAM
  • User RAM: 1 MB SRAM
  • Remanent Variables: Up to 256 kB
• Interfaces:
  • Ethernet (IF2): 1x RJ45, 10/100/1000 Mbit/s, Auto-MDI/MDIX
  • POWERLINK (IF3): 1x RJ45, 100 Mbit/s, supports poll response chaining mode (PRC)
  • USB (IF4 & IF5): 2x Type A, max 0.5 A output current each
  • RS232 (IF1): Connection via 12-pin terminal block, max 115.2 kbit/s
  • X2X Link Master (IF6): Dedicated for real-time I/O communication
• Power Consumption: Max. 3 W
• Operating Conditions:
  • Temperature:
    • Horizontal Mounting: -25°C to +60°C
    • Vertical Mounting: -25°C to +50°C
  • Relative Humidity: 5% to 95%, non-condensing
• Physical Attributes:
  • Dimensions: 150 mm (W) x 99 mm (H) x 85 mm (D)
  • Weight: Approx. 400 g
• Certifications: CE, UKCA, UL, ATEX Zone 2, DNV, ensuring global compliance and safety.

Applications

• Advanced Industrial Automation: Tackle complex control algorithms and high-speed data processing with ease, enhancing overall system efficiency.
• Precision Machine Control: Achieve highly accurate and synchronized control of industrial machinery, optimizing production lines and reducing errors.
• Integrated Process Automation: Seamlessly integrate into diverse industrial communication networks, facilitating robust and reliable process management across various sectors.
• High-Volume Data Acquisition: Efficiently manage and process extensive data sets from a multitude of sensors and devices, providing critical insights for operational improvements.

Why Choose This Model?

The B&R X20CP1585 is more than just a PLC; it
